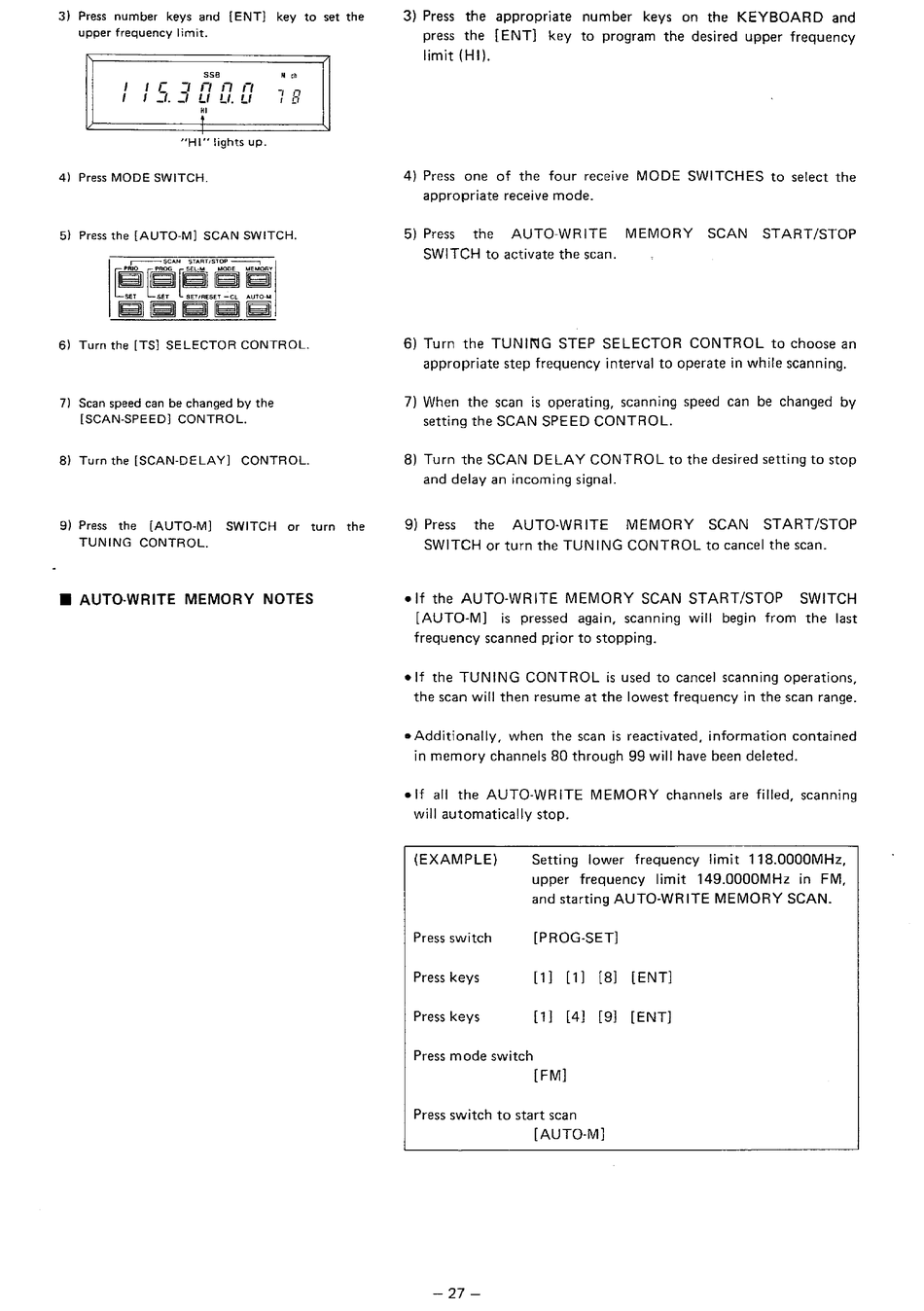

Icom IC-R7000 Instruction Manual page 30

3) Press number keys and [ENT] key to set the
upper frequency limit.
SSB M
c~
I I
C
:1 ,-, ,-, ,-,
I -'· _,
Ll !..1. Ll
7
B
tl
"HI"Iights up.
4) Press MODE SWITCH.
5) Press the [AUTO-M] SCAN SWITCH.
r - - S C A N START/STOP-...,
fiPRIO
~~PROG
n
S£l·M MOOE MEMOAV
~~L~.~~
~~~~~
6) Turn the [TS] SELECTOR CONTROL.
7) Scan speed can be changed by the
[SCAN-SPEED] CONTROL.
8) Turn the [SCAN-DELAY] CONTROL.
9) Press the [AUTO-M] SWITCH or turn the
TUNING CONTROL.
• AUTO-WRITE MEMORY NOTES
3) Press the appropriate number keys on the KEYBOARD and
press the [ ENT] key to program the desired upper frequency
limit (HI).
4)
Press one of the four receive MODE SWITCHES to select the
appropriate receive mode.
5)
Press the AUTO-WRITE MEMORY SCAN START/STOP
SWITCH to activate the scan.
6) Turn the
TUNI~G
STEP SELECTOR CONTROL to choose an
appropriate step frequency interval to operate in while scanning.
7) When the scan is operating, scanning speed can be changed by
setting the SCAN SPEED CONTROL.
8)
Turn the SCAN DELAY CONTROL to the desired setting to stop
and delay an incoming signal.
9) Press
the AUTO-WRITE MEMORY SCAN START/STOP
SWITCH or turn the TUNING CONTROL to cancel the scan.
•If the AUTO-WRITE MEMORY SCAN START/STOP SWITCH
[AUTO-M] is pressed again, scanning will begin from the last
frequency scanned prior to stopping.
•If the TUNING CONTROL is used to cancel scanning operations,
the scan will then resume at the lowest frequency in the scan range.
• Additionally, when the scan is reactivated, information contained
in memory channels 80 through 99 will have been deleted.
•If all the AUTO-WRITE MEMORY channels are filled, scanning
will automatically stop.
(EXAMPLE)
Press switch
Press keys
Press keys
Setting lower frequency limit 118.0000MHz,
upper frequency limit 149.0000MHz in FM,
and starting AUTO-WRITE MEMORY SCAN.
[PROG-SET]
[1] [1] [8] [ENT]
[1] [4] [9] [ENT]
Press mode switch
[FM]
Press switch to start scan
[AU TO-M]
-27-
