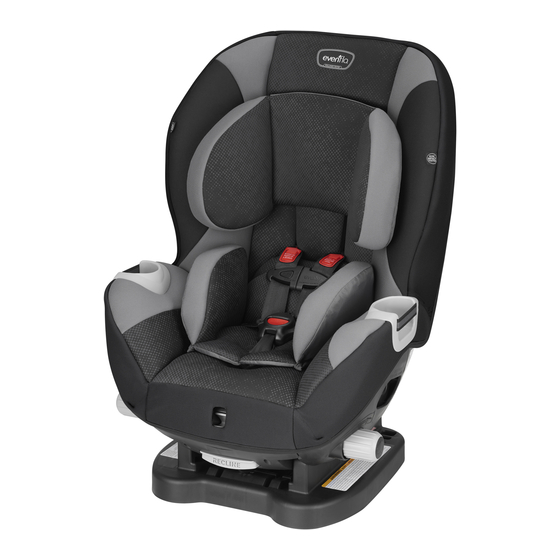

Triumph™
Child Restraint System
Owner's Manual
Keep for future use
Rear-facing
2.3 to 18 kg
(5 to 40 lb.)
48 to 94 cm
(19 to 37 in.)
Forward-facing
10 to 29.4 kg
(22 to 65 lb.)
71 to 127 cm
(28 to 50 in.)
Para instrucciones en Español,
llamar al: 1-800-233-5921
WARNING:
To reduce the risk of serious injury
or death, read this owner's manual prior
to installing and using this child restraint.
© 2014 Evenflo Company
25706664
9/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Triumph and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evenflo Triumph

Summary of Contents for Evenflo Triumph

  • Page 1 Triumph™ Child Restraint System Owner’s Manual Keep for future use Rear-facing 2.3 to 18 kg (5 to 40 lb.) 48 to 94 cm (19 to 37 in.) Forward-facing 10 to 29.4 kg (22 to 65 lb.) 71 to 127 cm (28 to 50 in.)

  • Page 2: Table Of Contents

    Premature infants may have difficulty breathing when in Visual Glossary ..............12 a sitting position. Using the Triumph Rear-facing ........14 Rear-facing Installation Using the Vehicle Seat Belt ....16 The American Academy of Pediatrics recommends that Rear-facing Installation Using Lower Anchor children ride in the rear-facing position to the highest Connector Assembly ............

  • Page 3: Warnings

    WARNING WARNING Air Bag Warning Location Warnings • DO NOT use this child restraint in the front seat of a • According to statistics, children are safer when properly vehicle equipped with an air bag, unless the air bag has restrained in a rear seating position than in the front been deactivated.
  • Page 4 WARNING WARNING • The headrest on the vehicle seat that the child faces when LATCH Warnings sitting in the rear facing mode should be placed in the • The LATCH system is intended to be used ONLY as lowest position. The vehicle seat back that the child faces described in these instructions.
  • Page 5 WARNING WARNING • Failure to follow installation instructions could result • In addition to these instructions, read and follow your vehicle owner’s manual regarding installation of the child in serious injury or death. These instructions and the instructions in your vehicle owner’s manual must be restraint and LATCH.

  • Page 6: Safe Practices

    Safe Practices Recall Information for U.S. Customers • Child restraints could be recalled for safety reasons. • Everyone rides buckled up or the vehicle does not You must register this restraint to be reached in a Make no exceptions for adults or children. If someone recall.

  • Page 7: Latch Information

    LATCH Information This page is intentionally blank. “LATCH” (Lower Anchors and Tethers for CHildren) is a system for attaching the child restraint to your vehicle seat. It can be used in place of the seat belts in vehicles with LATCH anchors. Refer to your vehicle owner’s manual for the locations of LATCH anchors.

  • Page 8: Visual Glossary

    Visual Glossary Visual Glossary Your vehicle components may be significantly different than pictured. Consult your owner’s manual to help you identify your vehicle components. Front Seat Lap Fold-down Armrest and Shoulder Belts Consult your vehicle’s owners manual. Rear Front Headrests Headrests Tether Anchors Back Seat...

  • Page 9: Using The Triumph Rear-Facing

    Using the Triumph ™ Installation Checklist Rear-facing WARNING Child Requirements for Rear-facing: When using this restraint rear-facing, DO NOT loosen • Weight: 2.3 to 18 kg (5 to 40 lb.) the vehicle seat belt to provide more leg room as this will prevent the child restraint from protecting your child.

  • Page 10: Rear-Facing Installation Using The Vehicle Seat Belt

    Rear-facing Installation Adjust the recline to Using the Vehicle Seat Belt Position #1 by lifting the back of the seat slightly while pulling WARNING the Recline Right lever NEVER turn a child restraint forward-facing with an infant weighing less than 10 kg (22 lb.) or less than one year of age.
  • Page 11 The seat belt must be as tight as possible. Put your full weight into the child restraint as you tighten the seat belt If you can move the child restraint more than 25 mm (1 in.) side to side or front to back at the rear-facing WARNING belt path...

  • Page 12: Connector Assembly

    Rear-facing Installation Know Your Lower Anchor Connector Assembly Using the Lower Anchor The lower anchor connector assembly that comes with your child restraint will be one of the two types below. Connector Assembly SecureRight™ Quick Connector™ LATCH is a system for attaching the child restraint to your Adjuster Strap vehicle seat.
  • Page 13 Correct Incorrect IMPORTANT: Make sure both lower anchor Quick Connectors Crossing your arms, insert the ends of the lower anchor are facing upward and the straps are not twisted. connector assembly strap in the rear-facing belt path openings, as shown (front openings). Note: Make sure the Using your full weight, adjustment buckle enters the opening on the...

  • Page 14: Using The Triumph Forward-Facing

    Using the Triumph ™ Installation Checklist Forward-facing WARNING Child Requirements for Forward-facing: If your child weighs more than 29.4 kg (65 lb.) or • Weight: 10 to 29.4 kg (22 to 65 lb.) their shoulders are above the highest harness level,...

  • Page 15: Forward-Facing Installation Using The Vehicle Seat Belt

    Forward-facing Installation WARNING Using the Vehicle Seat Belt If the vehicle seat belts are not routed correctly, the child restraint may not protect your child in a crash. The Intermediate Recline Position (Position #2) and Full Upright Position (Position #3) are ONLY for forward-facing use always make sure the...
  • Page 16 Install Locking Clip, The vehicle seat belt if necessary. must be as tight as If your vehicle was built possible. Locking Clip prior to model year Using your full weight, installed properly 1996, and has either a lap push the child restraint firmly into the vehicle belt or lap/shoulder belt seat as you tighten the...
  • Page 17 This page is intentionally blank. Connect the tether hook to the vehicle tether anchor behind the vehicle seat, as shown. (Please consult your vehicle owner’s manual, as tether anchor locations may vary.) Pull the strap and tighten the tether securely. Note: If your tether strap does not reach the vehicle tether anchor bracket, call Evenflo’s ParentLink for a tether extender.

  • Page 18: Connector Assembly

    Forward-facing Installation WARNING Using the Lower Anchor • In addition to these instructions, read and follow your vehicle owner’s manual regarding installation of the child Connector Assembly restraint and LATCH. If there is a discrepancy, follow your vehicle owner’s manual. Know Your Lower Anchor LATCH is a system for attaching the child restraint to your vehicle seat.
  • Page 19 Remove the lower anchor connector strap from the rear-facing position (front openings). Refer to your vehicle owner’s manual to locate the lower anchor bars on your vehicle seat. Attach the left hook , or clip , to the left anchor , and the right hook to the right anchor bar.

  • Page 20: Securing Your Child In The Child Restraint

    Securing Your Child WARNING in the Child Restraint • Failure to follow these instructions could result in serious injury to your child or other vehicle occupants. • The tether strap is for forward-facing use only. Place baby in the child restraint. The baby’s back and bottom should be flat against the restraint.

  • Page 21: Adjusting The Crotch Strap

    The harness straps must be snug against the child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position. Check the harness straps near the shoulders for slack.

  • Page 22: Removing Child From The Restraint

    Removing the Lower Removing Child from the Restraint Anchor Connector Assembly To unfasten the chest clip, push the release button pull apart. Press the adjuster release button to loosen harness strap. Press the red buckle release , and remove the buckle tongues.

  • Page 23: Removing The Tether Strap

    Removing the Tether Strap Removing the Seat Pad You will need to remove your seat pad for cleaning. The tether strap that comes with your child restraint will be one of the two types below. Unbuckle harness straps and disconnect chest clip. Press the adjuster release Tilt the adjuster button...

  • Page 24: Installing The Seat Pad

    Stretch seat pad over cup holders* . Make sure the edges of the seat pad are tucked beneath the edge of each cup holder to enclose the foam underneath. Open the BeltTrac access flap and remove the seat pad from the seat shell.

  • Page 25: Installing The Accessories

    Installing the Accessories The Body Pillow and Infant Head Support The Optional Cup Holder WARNING Use the Body Pillow and Infant Head Support with the child restraint in the rear-facing position ONLY. The optional Body Pillow is used to help support your child by placing it in the restraint, as shown.

  • Page 26: Removing The Adjustable Headrest

    Removing the Adjustable Headrest Not available on all models. Lower BeltTrac access flap and attach Velcro DO NOT use if the top of the ® child’s ears are above the top of the headrest at its highest position. Remove the headrest for this child to use the restraint, as long as the child meets all other height and weight...

  • Page 27: Securing Your Child Restraint In Aircraft

    Securing Your Child Restraint in Aircraft The Federal Aviation Administration (FAA) recommends that you secure your child for air travel in an appropriate child restraint based on your child’s weight and size. Turbulence can happen with little or no warning. When turbulence occurs, the safest place for your child is in a properly installed child restraint, not in an adult’s lap or on the aircraft seat with its seat belt.
  • Page 28 Installing Child Restraint Forward-facing in Aircraft IMPORTANT: Before installing the child restraint, make sure the aircraft seat is in a fully upright position. Unbuckle the aircraft seat belts and lay over the armrests, as shown. Adjust the child restraint to its upright position (page 26), then place it on the aircraft seat forward-facing.

  • Page 29: Replacement Parts

    Replacement Parts Fasten the aircraft seat Not available on all models. Styles may vary. belt To order replacement parts you can order on-line at www. evenflo.com or contact Evenflo. When you contact us, please have the product model number and date of manufacture (found on the back of the child restraint).

  • Page 30: Limited Warranty

    EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW.
  • Page 31 USA: 1-800-233-5921, 8 AM to 5 PM E.T. Canada: 1-937-773-3971 México: 01-800-706-12-00...
