SaMASZ KDF260 Operator's Manual

Front disc mower
Hide thumbs Also See for KDF260:
Table of Contents

Advertisement

Quick Links

Download this manual

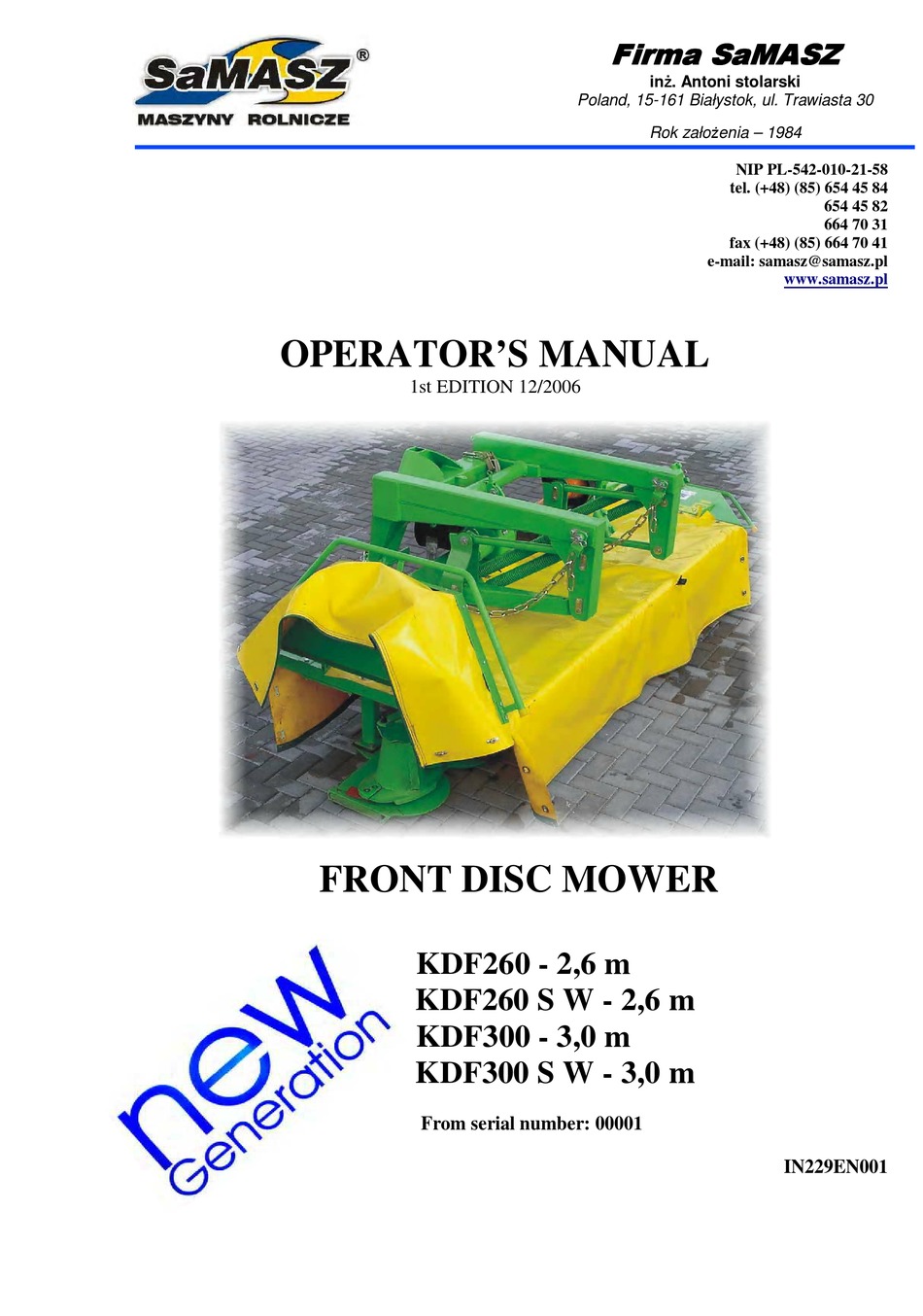

OPERATOR'S MANUAL
1st EDITION 12/2006
FRONT DISC MOWER
KDF260 - 2,6 m
KDF260 S W - 2,6 m
KDF300 - 3,0 m
KDF300 S W - 3,0 m
From serial number: 00001
Firma SaMASZ
Firma SaMASZ
Firma SaMASZ
Firma SaMASZ
inŜ. Antoni stolarski
Poland, 15-161 Białystok, ul. Trawiasta 30
Rok załoŜenia – 1984
NIP PL-542-010-21-58
tel. (+48) (85) 654 45 84
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
654 45 82
664 70 31
www.samasz.pl
IN229EN001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDF260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SaMASZ KDF260

Summary of Contents for SaMASZ KDF260

  • Page 1 (+48) (85) 664 70 41 e-mail: samasz@samasz.pl www.samasz.pl OPERATOR’S MANUAL 1st EDITION 12/2006 FRONT DISC MOWER KDF260 - 2,6 m KDF260 S W - 2,6 m KDF300 - 3,0 m KDF300 S W - 3,0 m From serial number: 00001 IN229EN001...
  • Page 2 RECOMMENDED MOWER′S ZALECANE POCHYLENIE WORKING KOSIARKI W POZYCJI POSITION ROBOCZEJ IT IS ALLOWED TO WORK IN HORIZONTAL Dopuszcza się pracę w pozycji poziomej. DOPUSZCZA SIĘ PRACĘ W POZYCJI POZIOMEJ POSITION TOO. OTHER POSITION CAN Pochylenie odwrotne powoduje trwałe POCHYLENIE ODWROTNE POWODUJE TRWAŁE DAMAGE THE CUTTERBAR uszkodzenie listwy roboczej.

  • Page 3: Table Of Contents

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Contents page 1. INTRODUCTION........................3 2. TECHNICAL DATA ........................3 2.1. Specifications.......................... 3 2.2. Design and working principle....................4 2.3. Proper use ..........................5 2.4. Standard equipment and spare parts..................5 SAFETY ADVICE ........................7 3.1.

  • Page 4: Introduction

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; We congratulate you on the purchase of your new SaMASZ mower and wish you much pleasure and the very best work results through the years to come. 1. INTRODUCTION General information Operator’s manual is attached to every machine in order that the operator can familiarize...

  • Page 5: Design And Working Principle

    KDF260S; KDF300S; KDF260W; KDF300W; . Design and working principle Fig. 1. Data plate. Fig. 2a. Parts of SaMASZ front disc mower with tine conditioner. 1 – Safety guard 6 – Cutterbar drive 7 – Intersecting axis gear II 2 – Tine conditioner drive 3 –...

  • Page 6: Proper Use

    2.3. Proper use SaMASZ front disc mower with tine/roller conditioner is designed for mowing standing grass in meadows and in stone free fields. It is a machine for hay and green fodder production. Tine/roller conditioner provides effective conditioning and accelerates drying of the forage. Roller conditioner is recommended in case of fragile crops like lucerne (alfalfa).
  • Page 7 Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Fig.3. PTO shaft. PTO shaft lubrication points. CAUTION Lubricate the PTO shaft with high quality multi-purpose grease every 8 shaft operating hours. If access holes are available, lubricate fittings through access holes. E-kits need lubrication every 50 hours.

  • Page 8: Safety Advice

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; 3. SAFETY ADVICE 3.1. Safety rules and regulations Any operation with the hydraulic lift lever should be done from the operator’s seat; DO NOT move the lever from outside of the tractor. In case of tractors equipped with EHR, operating with hydraulic lift is done by the buttons mounted outside the tractor’s cabin.

  • Page 9: Warning Decals

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; 3.2. Warning decals CAUTION a) all warning decals should be clean and legible, b) lost or damaged decals must be replaced, c) please order new decals from your dealer or supplier. CAUTION Mower’s working rpm -10 ÷...

  • Page 10: Transport And Working Positions

    (the tractor’s triangle cat. II is NOT a part of standard equipment – it can be ordered from SaMASZ as optional extra equipment). When the triangle is connected to the tractor’s 3-point linkage, adjust it (by means of upper link) in parallel to the mower’s triangle, lift the 3-point linkage until it locks in, check the space between (1)

  • Page 11: Adjusting The Clearance Between Triangle's Hook And Lock

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Adjust the mower in parallel to the ground adjust the space between Block the hook with by means of upper link. the frame suspension and cotter pin. rubber safety bumper to about.

  • Page 12: Adjusting The Length Of Support Chains

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; By means of the bolt (2) adjust the clearance between triangle’s hook and lock ( fig. 8.), 4.3. Adjusting the length of support chains To adjust the length of support chains properly, please do the following: lift the mower on the tractor’s lift until the space between the frame suspension and a rubber safety bumper reaches about 15 cm (fig.

  • Page 13: Preparing The Mower For Work. Operation (Mowing)

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; CAUTION! Check the minimum and maximum length of the PTO shaft. If needed, shorten PTO shaft according to its operator’s manual. Otherwise the warranty could be revoked CAUTION! Use PTO shafts designed to drive the machine. Before the operation, check all safety guards (in tractor, machine and PTO shaft);...

  • Page 14: Mounting And Adjustments

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; 5. MOUNTING AND ADJUSTMENTS 5.1. Mounting and timing of the knives The knives should be mounted as shown in fig. 10, according to the rule, that the cutting edges should be directed towards ground, so that a knife will lift the grass after cutting. Right knife Left knife Right turn...

  • Page 15: Adjusting The Space Between Tine Conditioner's Mask And Its Shaft

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Fig.13. Disc turns (KDF 300) CAUTION: Before you change the knife check disc turns (fig. 12, fig.13. ) CAUTION: Different mounting of the knives will block the mower. When mounting pay particular attention to loose rotation of the knife on the knife holder pin.

  • Page 16: Replacing The Conditioner's Tines

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Fig.14. Adjusting tine conditioner’s mask. 5.4. Replacing the conditioner’s tines (Models: KDF260S ;KDF300S;) Worn tines must be immediately replaced with new ones. Each time, before the work begins, check the conditioner’s tines along with the bolts on which the tines are mounted. CAUTION: Use genuine bolts and nuts shown in spare parts list.

  • Page 17: Maintenance And Service

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; 5.6. Maintenance and service 5.6.1. Checking the knives and knife holders All knives should have the same lengths and weights. Always check mower before starting work for damaged, missing and/or worn knives. Replace them, if necessary, only in sets. Make sure all knives in a set are of the same length and weight.

  • Page 18: Daily Maintenance

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Fig. 19. Adjusting the tension of tine conditioner’s. 5.6.3. Daily maintenance Everyday after work please carry out the following maintenance: remove grass and mud, check all visible units and parts and their connections; tighten all loose bolts and nuts and replace all damaged and/or worn parts with new genuine ones, check the cutterbar, grease PTO shaft tubes with STP grease,...

  • Page 19: Intersecting Axis Gear

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Removing the worked oil from the cutterbar is done through the outlet B (fig. 20b. ) situated at the end of the cutterbar. Always change the oil just after finished work, when it is still warm. Fig.

  • Page 20: Roller Conditioner's Gearbox

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Tab.4. Oil capacity. Model Oil capacity [l] Oil type Lubrication frequency Transol 680  1000 Once every 3 seasons (acc. to ISO 3448 oil viscosity grade : All models About 1l (if working intensively) VG-680 –...

  • Page 21: Bearings And Joints

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; 6.4. Bearings and joints Every 100 mower working hours lubricate tine/roller conditioner’s bearings and main joints of the mower (fig.23,24,25,26,27.). Recommended grease: LT43 (or other designed to lubricate rolling and slide bearings, that work in -30 C do+130 Tine conditioner lubrication points: Lubrication point...

  • Page 22: Defects And Their Repairs

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; Roller conditioner lubrication points: Lubrication points Lubrication point Fig.26.Tensioner lubrication points Fig.27.Bearings lubrication points 7. DEFECTS AND THEIR REPAIRS. Defect Reason Repair Worn knives Replace knives Put on knives strictly acc. to Improperly mounted knives instructions.

  • Page 23: Disassembly And Withdrawal From Use

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; 8. DISASSEMBLY AND WITHDRAWAL FROM USE 8.1. Disassembly Before starting any repair or service the mower should be cleaned and any grass or dirt removed. Carefully check nuts and bolts for correct tension and the pins for wear. Replace as necessary. 8.2.

  • Page 24: Warrranty Terms

    2. The warranty period is for a year from the date of sale to the purchaser, stated above. 3. Any repair which is subject to warranty should be carried out by an authorised SaMASZ dealer. Upon completion of the repair the dealer must submit a warranty claim within 21 days.

  • Page 25: Warranty Repairs Record

    Front disc mower Operator’s manual KDF260S; KDF300S; KDF260W; KDF300W; CAUTION: When the warranty expires, repairs can be done for a payment by the entitled repair shops pointed by the dealer. The dealer is obliged to indicate them. CAUTION: The manufacturer reserves the right to alter technical design and specification without prior notice and without liability.
