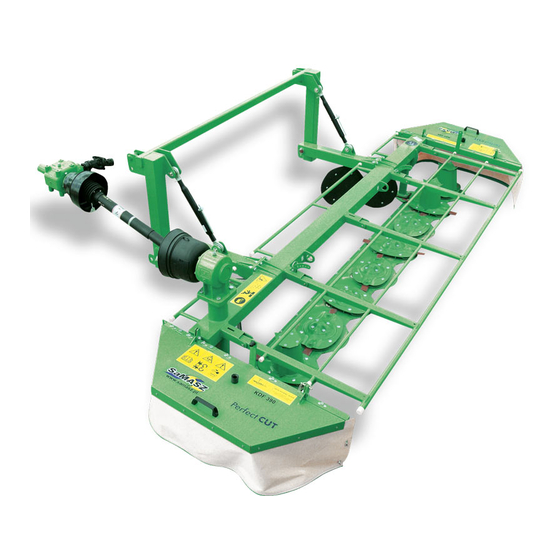

SaMASZ KDF 390 Operator's Manual

Front disc mower 3.9 m
Hide thumbs Also See for KDF 390:
Table of Contents

Advertisement

Quick Links

Download this manual
SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
Established – 1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
www.samasz.pl
OPERATOR'S MANUAL
FRONT DISC MOWER
KDF 390 - 3.9 m
IN235EN002
2013.04.18
VERSION 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDF 390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SaMASZ KDF 390

Summary of Contents for SaMASZ KDF 390

  • Page 1 Poland, 16-060 Zabłudów, ul. Trawiasta 1 Established – 1984 NIP PL-966-159-29-76 tel. (+48) (85) 664 70 31 fax (+48) (85) 664 70 41 e-mail: samasz@samasz.pl www.samasz.pl OPERATOR’S MANUAL FRONT DISC MOWER KDF 390 - 3.9 m IN235EN002 2013.04.18 VERSION 2...
  • Page 2 Well-proven design with thousands of machines in regular use in many countries and quality materials ensure high durability and reliability of SaMASZ mowers. We congratulate you on the purchase of your new SaMASZ mower and wish you much pleasure and the very best work results through the years to come.

  • Page 3: Table Of Contents

    Front disc mower Operator’s manual KDF 390 Contents page 1. IDENTIFYING THE MACHINE ..................... 2 2. INTRODUCTION ........................2 3. PROPER USE..........................3 3.1. Design and working principle ....................4 3.2. Technical data .......................... 5 3.3. Standard equipmenet and spare parts ..................5 4.

  • Page 4: Identifying The Machine

    Front disc mower Operator’s manual KDF 390 1. IDENTIFYING THE MACHINE Data plate is mounted to the mower’s main frame in the place shown below (Fig. 1). Fig. 1. Data plate Data plate includes: - name and adress of the manufacturer,...

  • Page 5: Proper Use

    KDF 390 3. PROPER USE SaMASZ front disc mower is designed for mowing standing grass on meadows and in stone free fields. It is a machine for hay and green fodder production. The mower is adjusted to work with FORTSCHRITT E 301; E 302; E303. Is intended to mow green fodder: grass, alfalfa and such on permanent grassland (pastures), on crop fields without rocks, and to form loose rows of cut fodder.

  • Page 6: Design And Working Principle

    Front disc mower Operator’s manual KDF 390 3.1. Design and working principle Fig. 2. Parts of SaMASZ front disc mower KDF 390 1 – Suspension frame 6 – PTO shaft 2 – Main frame 7 – Swath discs 3 – Cutterbar 8 –...

  • Page 7: Technical Data

    Front disc mower Operator’s manual KDF 390 3.2. Technical data Tab. 2. Technical data Model KDF 390 Working width 3.9 m Number of knives [pcs.] 18 (2x9) FORTSCHRITT PTO rpm 1000 rpm 60 kW FORTSCHRITT power required (82 KM) Transport width 3.9 m...

  • Page 8: Safety Advice

    Front disc mower Operator’s manual KDF 390 PTO shafts of other brands with equivalent parameters could be used after SaMASZ permission. CAUTION: Optional extra equipment should be ordered separately. 4. SAFETY ADVICE 4.1. Safety rules and regulations Operation without safety guards as well as with the damaged or raised guards is not allowed (danger of the stones, etc.

  • Page 9: Transport

    4.3. Safety decals Despite the fact, that company SaMASZ Białystok – the manufacturer of that mower takes responsibility for design and manufacturing of the mower, in order to eliminate dangerous situations, certain risk during mower operation is unavoidable.

  • Page 10: Warning Decals And Their Meaning

    Front disc mower Operator’s manual KDF 390 4.4. Warning decals and their meaning CAUTION: a) all warning decals should be clean and legible, b) lost or damaged decals must be replaced, c) please order new decals from your dealer or supplier.
  • Page 11 Front disc mower Operator’s manual KDF 390 N-30 – Cutterbar "Perfect Cut" N-31 N-53 N-109 – Quick knife replacementy N-162 - 9 -...

  • Page 12: Transport And Operation

    Front disc mower Operator’s manual KDF 390 Fig. 1. Warning decals placed on the mower KDF 390 5. TRANSPORT AND OPERATION 5.1. Attaching the mower to self-propelled mower FORTSCHRITT Fig. 5. Front disc mower KDT 390 attached to FORTSCHRITT - 10 -...
  • Page 13 Intersecting axis gear (1) is mounted on the special bracket (3) welded to self-propelled machine over the right wheel (Fig. 6). Mounting of the bracket may be done by SaMASZ crew or you can do it by yourelf according to the manual provided by the manufacturer.

  • Page 14: Operation

    Front disc mower Operator’s manual KDF 390 Fig. 8. Instruction of PTO shaft shortening CAUTION: Use the machines with PTO shafts designed to drive them. Before the work begins, check the safety guards (in tractor, mower and PTO shaft), if they are placed correctly and are not damaged.

  • Page 15: Mounting And Adjustments

    Front disc mower Operator’s manual KDF 390 Too low PTO rpm impair the quality of mowing and in some cases the mower stops mowing.(too low linear velocity of the knife). In case of mowing low grass, front safety guard should be lifted to reduce blasts of wind around the discs and reduce the pressure of the safety guard on the grass.

  • Page 16: Meintenance And Service

    Front disc mower Operator’s manual KDF 390 Fig. 10. Quick replacing of the knives with mounting lever Fig. 11. Disc turns KDF 390 CAUTION: Check disc turns, before you change the knife (Fig. 11). CAUTION: Different mounting of the knives will block the mower. When mounting pay particular attention to loose rotation of the knife on the knife holder pin.

  • Page 17: Daily Maintenance

    Front disc mower Operator’s manual KDF 390 min. Fig. 12. Permissible wear of knife holder pin 6.3.2. Daily maintenance Everyday after work please carry out the following maintenance: remove grass and mud, check all visible units and parts and their connections; tighten all loose bolts and nuts and...

  • Page 18: Intersecting Axis Gear

    Front disc mower Operator’s manual KDF 390 Fig. 13. Cutterbar oil inlet Tab. 4. Oil capacities Oil capacity [L] Model Oil type Lubrication frequency Once every 3 seasons KDF 390 80W90 (if working intensively) 7.2. Intersecting axis gear Everyday before starting work please check the oil level and, if needed, please refill after having removed the vent A on the top of the gear (Fig.

  • Page 19: Defects And Their Repairs

    Front disc mower Operator’s manual KDF 390 Tab. 5. Oil capacities Model Oil capacity [l] Oil type Lubrication frequency Once every 3 seasons KDF 390 about 1 (SAE 80W/90, API GL-4) (if working intensively) CAUTION: The above instructions should be strictly followed. If the discs in...

  • Page 20: Disassembly And Withdrawal From Use

    2. The warranty period is for two years from the date of sale to the purchaser, stated above. 3. Any repair which is subject to warranty should be carried out by an authorised SaMASZ dealer. Upon completion of the repair the dealer must submit a warranty claim within 14 days.
  • Page 21 SaMASZ, e) lack of needed records in the warranty card or filling in the warranty card independently, f) use of the mower not in accordance with operator’s manual or for incorrect purpose.

  • Page 22: Warranty Repairs Record

    Operator’s manual KDF 390 CAUTION: Company SaMASZ is working constantly on development of all types and models. That is why, there is always a possible change of form, equipment and technology of delivered products. Any claims arising from data, drawings and descriptions included in this operator’s manual and spare parts list cannot be laid.

Table of Contents
