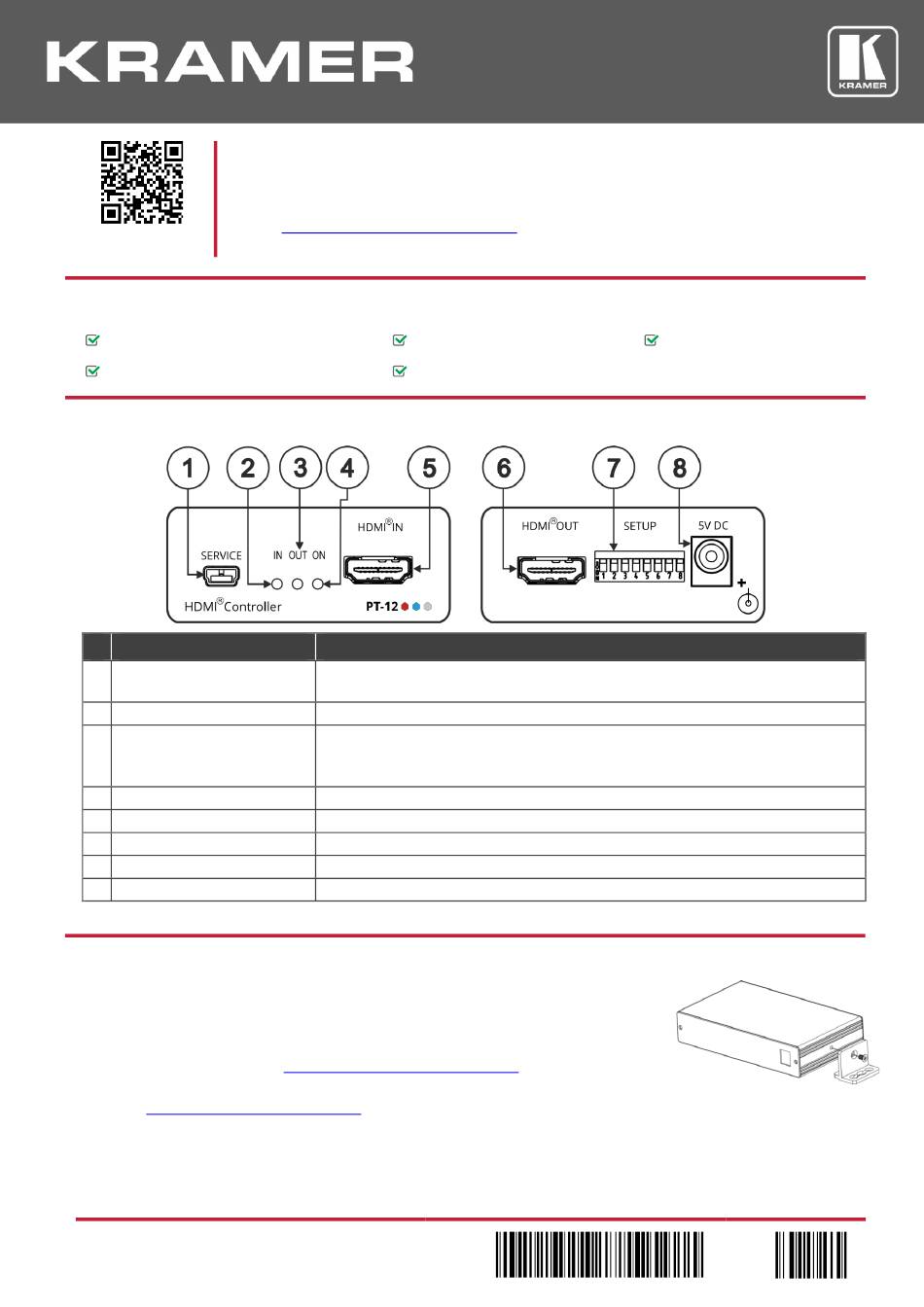

Kramer PT-12 Quick Start Manual

PT-12 Quick Start Guide
This guide helps you install and use your PT-12 for the first time.
Go to
Scan for full manual
upgrades are available.
Step 1: Check what's in the box

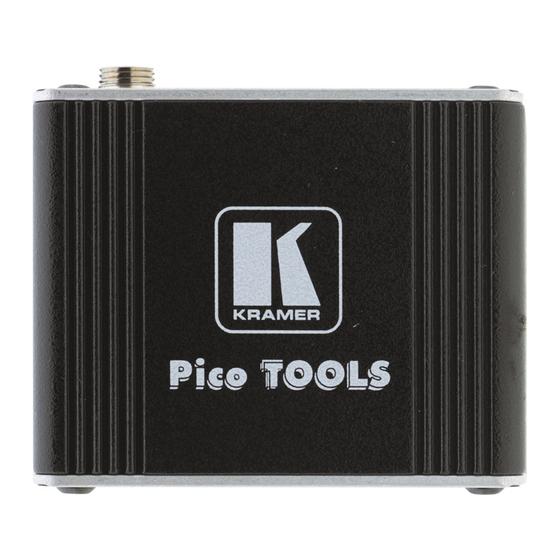

PT-12 HDMI Controller
1 Power adapter and cord

Step 2: Get to know your PT-12

# Feature
1 SERVICE Mini USB Connector Connect to a PC/laptop running EDID Designer to modify the EDID, control PT-12 via
2 IN LED
3 OUT LED
4 ON LED
®
5 HDMI IN Connector
®
6 HDMI OUT Connector
7 SETUP DIP-Switches
8 5V DC Power Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Step 3: Install PT-12

Install PT-12 using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to www.kramerav.com/downloads/PT-12.
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/PT-12).
PT-12 Quick Start
www.kramerav.com/downloads/PT-12
4 Rubber feet
1 Quick start guide
Function
P3K protocol or to update its firmware.
Lights green when an HDMI active signal source is connected to the input.
Lights green when an HDMI acceptor is connected to the output.
Flashes three times upon successful load of the designed EDID and then resumes to
normal operation.
Lights green when power is connected.
Connect to an HDMI source.
Connect to an HDMI acceptor.
Set the device behavior, defined in the DIP-switch setup table.
Connect to the supplied power adapter.
P/N:
to download the latest user manual and check if firmware
1 Bracket set
2 9 0 0 - 3 0 1 0 2 0 QS
Rev: 5
