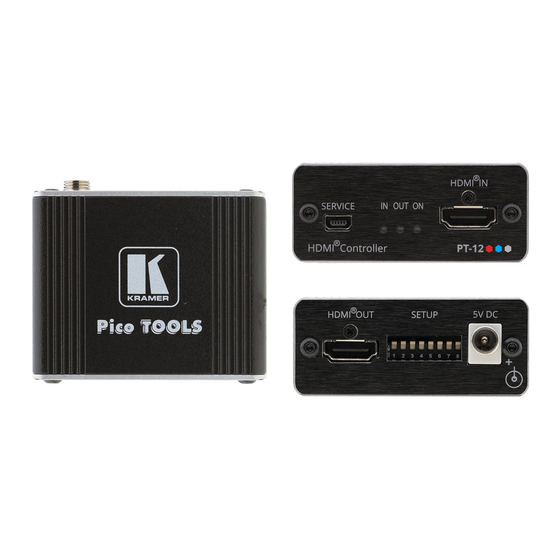

Kramer PT-12 User Manual

Hdmi controller
Hide thumbs Also See for PT-12:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
MODEL:
PT-12
HDMI Controller
P/N: 2900-301020 Rev 1
www.kramerAV.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer PT-12

Summary of Contents for Kramer PT-12

  • Page 1 USER MANUAL MODEL: PT-12 HDMI Controller P/N: 2900-301020 Rev 1 www.kramerAV.com...

  • Page 2: Table Of Contents

    Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining PT-12 HDMI Controller Mounting PT-12 Connecting PT-12 Configuring PT-12 Configuring Using DIP-Switches Configuring Automatic Power Controls Defining EDID Lock Modifying EDID with EDID Designer Defining Color Depth and Spacing...

  • Page 3: Introduction

    Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis.

  • Page 4: Overview

    The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility.

  • Page 5: Typical Applications

    Kramer Electronics Ltd. Typical Applications PT-12 is ideal for the following typical applications: • Home theatre or meeting room, automatic TV ON/OFF controller. • Adapting new device compatibilities with older AV infrastructure. • Supporting AV troubleshooting. PT-12 – Introduction...

  • Page 6: Defining Pt-12 Hdmi Controller

    Connect to an HDMI source. ® HDMI OUT Connector Connect to an HDMI acceptor. SETUP DIP-Switches Use to configure device settings (see Configuring Using DIP-Switches on page 7). 5V DC Power Connector Connect to the included power adapter. PT-12 – Defining PT-12 HDMI Controller...

  • Page 7: Mounting

    Kramer Electronics Ltd. Mounting PT-12 This section provides instructions for mounting PT-12. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F).

  • Page 8: Connecting

    Kramer Electronics Ltd. Connecting PT-12 Always switch off the power to each device before connecting it to your PT-12. After connecting your PT-12, connect its power and then switch on the power to each device. Figure 2: Connecting to the...

  • Page 9: Configuring

    Delay before Auto Sleep (before 5V output cut-off) Auto Sleep is disabled OFF (up) – Normal operation mode. CPU FW Upgrade ON (down) – CPU firmware upgrade mode. When set to ON the device is inactive. PT-12 – Configuring PT-12...

  • Page 10: Configuring Automatic Power Controls

    EDID values to be passed through the device and changed automatically to follow the output or to lock the EDID so that it will not be affected by changes on the output. PT-12 – Configuring PT-12...

  • Page 11: Modifying Edid With Edid Designer

    7). Modifying EDID with EDID Designer To download the software and user manual for EDID Designer, go to: www.kramerav.com/product/PT-12. To modify the EDID with Kramer EDID Designer software: 1. Connect your computer to the PT-12 SERVICE Mini USB Connector 2.

  • Page 12: Setting Hdcp Operation

    DIP-switch 8 set to ON (down position). The latest version of K-UPLOAD and installation instructions can be downloaded from our website at: www.kramerav.com/support/product_downloads.asp. Before using the micro USB port, install the Kramer USB driver, available at: www.kramerav.com/support/product_downloads.asp. PT-12 – Upgrading Firmware...

  • Page 13: Technical Specifications

    15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H Net Weight 0.1kg (0.2lbs) approx. Shipping Weight 0.6kg (1.3lbs) approx. Accessories Included Power adapter, bracket kit Specifications are subject to change without notice at www.kramerav.com PT-12 – Technical Specifications...

  • Page 14: Default Edid

    720 x 576i at 50Hz - Doublescan (16:9, 64:45) 640 x 480p at 60Hz - Default (4:3, 1:1) NB: NTSC refresh rate = (Hz*1000)/1001 CE vendor specific data (VSDB) IEEE registration number. 0x000C03 CEC physical address..1.0.0.0 PT-12 – Default EDID...
  • Page 15 Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 2/16/2016 Software revision..2.60.0.972 Data source....Real-time 0x0041 Operating system..6.1.7601.2.Service Pack 1 Raw data 00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,00,00,00,00,FF,19,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26, 10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,00,00,FC,00,50, 54,2D,32,43,20,20,20,20,20,20,20,20,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,01,CD, 02,03,1B,F1,23,09,07,07,48,10,05,84,03,02,07,16,01,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47 PT-12 – Default EDID...

  • Page 16: Protocol 3000

    • Parameters attributes – Parameters may contain multiple attributes. Attributes are indicated with pointy brackets (<…>) and must be separated by a period (.). The command framing varies according to how you interface with PT-12. The following figure displays how the # command is framed using terminal communication software (such as Hercules): PT-12 –...

  • Page 17: Protocol 3000 Commands

    #DISPLAY?1<CR> FEEDBACK – HPD status according to status ~nn@DISPLAYout_index,status<CR><LF> signal validation 0 – Signal or sink is not valid 1 – Signal or sink is valid 2 – Sink and EDID is valid PT-12 – Protocol 3000...
  • Page 18 Get command list or COMMAND Get the command list: help for specific #HELP<CR> #HELP<CR> command command. #HELPcmd_name<CR> To get help for FEEDBACK AV-SW-TIMEOUT: 1. Multi-line: HELPav-sw-timeout<CR> ~nn@Devicecmd_name,cmd_name…<CR><LF> To get help for command use: HELP (COMMAND_NAME)<CR><LF> ~nn@HELPcmd_name:<CR><LF> description<CR><LF> USAGE:usage<CR><LF> PT-12 – Protocol 3000...
  • Page 19 To avoid locking the FEEDBACK port due to a USB bug in ~nn@RESETok<CR><LF> Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port. PT-12 – Protocol 3000...
  • Page 20 Get the device serial number: number. #SN?<CR> factory assigned #SN?<CR> FEEDBACK ~nn@SNserial_num<CR><LF> – XX.XX.XXXX VERSION? firmware_version Get firmware version COMMAND Get the device firmware number. #VERSION?<CR> version number: where the digit groups are: #VERSION?<CR> major.minor.build version FEEDBACK ~nn@VERSIONfirmware_version<CR><LF> PT-12 – Protocol 3000...

  • Page 21: Result And Error Codes

    (Reserved) ERR_RESERVED_8 (Reserved) ERR_RESERVED_9 (Reserved) ERR_RESERVED_10 (Reserved) ERR_RESERVED_11 (Reserved) ERR_RESERVED_12 (Reserved) ERR_EDID_CORRUPTED EDID corrupted ERR_NON_LISTED Device specific errors File has the same CRC – no changed ERR_SAME_CRC ERR_WRONG_MODE Wrong operation mode ERR_NOT_CONFIGURED Device/chip was not initialized PT-12 – Protocol 3000...
  • Page 22 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
  • Page 23 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
