GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 K-NET is a proprietary Kramer protocol for communication between Kramer products 3 The guide provides information about how to set up the system and is updated on a regular basis. For the latest online guide, go to http://www.kramerelectronics.com...
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

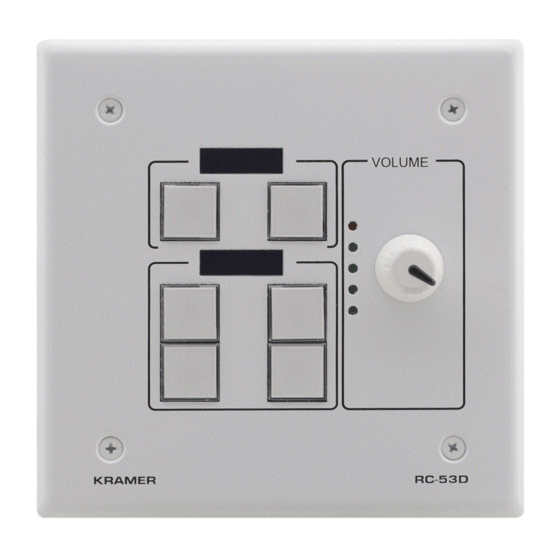

Vertrieb von CAMBOARD Electronics Overview Overview The RC-53D is an auxiliary remote control panel for Master Room Controllers control of A/V equipment in a room. The RC-53D: • Features six front panel, single color, backlit buttons designed in two groups;...
Vertrieb von CAMBOARD Electronics Defining the RC-53D Table 1: RC-53D K-NET™ Auxiliary Control Panel – Front Panel Features Feature Function SOURCE Buttons Group of four programmable, backlit buttons Faceplate Screws Four screws connecting the faceplate to the Rear Box “DISPLAY”...
Vertrieb von CAMBOARD Electronics Defining the RC-53D Grounding the RC-53D The grounding screw is used to earth the chassis of the unit to the building ground preventing static electricity from impacting the performance of the unit. Figure Table define the grounding screw components.
• The auxiliary panel can be programmed only via the Master Room controller (for example, the Kramer SV-551 SummitView™ Processor/Switcher) Figure 4: RC-53D connected to the SV-551 SummitView™ Processor / Switcher 1 By authorized Kramer technical personnel or by an external system integrator 2 Power supplies are sold separately.
Vertrieb von CAMBOARD Electronics Installing the RC-53D Faceplate, Button Caps and Labels Installing the RC-53D Faceplate, Button Caps and Labels This section describes how to install the faceplate, button caps and labels. Figure 5 illustrates a sample button label sheet.
6. Remove the protective foils from both sides of the Perspex (acrylic glass) windows. 7. Remove the protective foils from both displays. 8. Place the faceplate on the RC-53D so that the four screw mounting holes are aligned. 9. Insert the four mounting screws and tighten with a screwdriver.
Vertrieb von CAMBOARD Electronics Operating the RC-53D K-NET™ Auxiliary Control Panel Operating the RC-53D K-NET™ Auxiliary Control Panel In the following example (illustrated in Figure 9), the auxiliary control panel is labeled with specific functions and each button is programmed...
Technical Specifications Technical Specifications Table 5 defines the technical specifications. Table 5: Technical Specifications of the RC-53D K-NET™ Auxiliary Control Panel PORTS: 2 K-NET on terminal block connectors; 1USB connector, 1 RS-232 on terminal block connector (factory use only) POWER SOURCE:...
Page 14
im Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
Page 15
Vertrieb von CAMBOARD Electronics For the latest information on our products and a list of Kramer distributors, visit our Web site www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
