- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: SL-1N Master Room Controller P/N: 2900-300399 Rev 2...
-
Page 3: Table Of Contents
Connecting the Ethernet Port Connecting the K-NET Port Operating the SL-1N Technical Specifications Figures Figure 1: SL-1N Master Room Controller Figure 2: Connecting the SL-1N Master Room Controller Figure 3: RS-232 Connection Figure 4: K-NET Pinout Connection SL-1N – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer SL-1N Master Room Controller, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer SL-1N away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The SL-1N is a highly versatile controller; an all-in-one extended remote control panel for control of AV equipment—especially projectors and associated equipment—in any room (such as classrooms, boardrooms, or auditoriums). It streamlines operations and simplifies control by integrating audio, video, and computer-video sources into a centralized system. -
Page 8: Defining The Sl-1N Master Room Controller

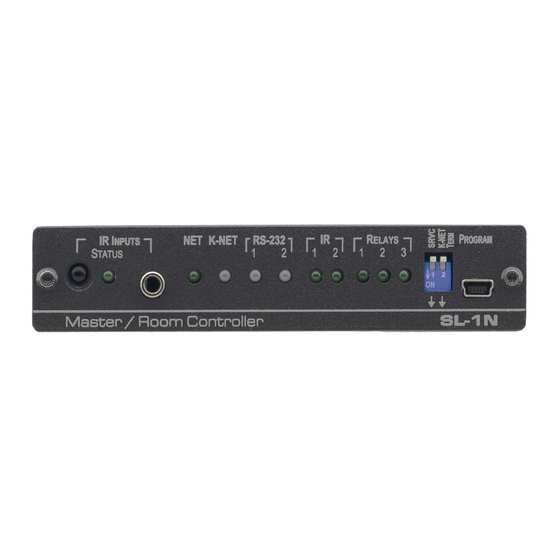

Defining the SL-1N Master Room Controller This section defines the SL-1N. Figure 1: SL-1N Master Room Controller Feature Function RELAYS Terminal Blocks Connect to low-voltage relay-driven devices (from 1 to 3) IR Output Terminal Blocks Connect to IR emitter cables (from 1 to 2) - Page 9 Slides down for service use only, slides up for normal operation K-NET TERM DIP-Switch Slides down for K-NET termination, slides up for not terminated PROGRAM USB Connector Connect to a computer for unit configuration and firmware upgrading SL-1N - Overview...
-
Page 10: Connecting The Sl-1N
Connecting the SL-1N Always switch off the power to each device before connecting it to your SL-1N. After connecting your SL-1N, connect its power and then switch on the power to each device. To connect the SL-1N, as the example in... -
Page 11: Connecting The Rs-232 Port
Figure 2: Connecting the SL-1N Master Room Controller Connecting the RS-232 Port To connect an AV device to the SL-1NN, connect the RS-232 9-pin D-sub port on your device to the RS-232 terminal block on the rear panel of the SL-1N controller as shown in Figure... -
Page 12: Connecting The Ethernet Port
To connect the SL-1N to a network: 1. Connect the Ethernet port of the SL-1N to the Ethernet port on a network hub or network router, via a straight cable with RJ-45 connectors. 2. At the other end, connect a PC running Site-CTRL to the network. -
Page 13: Operating The Sl-1N
Operating the SL-1N You can operate your SL-1N using: A K-NET-compatible remote controller or auxiliary control panel: To operate your device using an external K-Net device, see the K-Config Configuration Guide The optional RC-4 Infrared remote control transmitter:... -
Page 14: Technical Specifications
SHIPPING WEIGHT: 0.53kg (1.2lbs) INCLUDED ACCESSORIES: Power supply RK-3T 19” rack mount, RC-4 remote controller, external OPTIONAL ACCESSORIES: IR receiver (C-A35M/IRR-50) and IR receiver extension cables (C-A35M/A35F-50) Specifications are subject to change without notice at http://www.kramerav.com SL-1N - Technical Specifications... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
