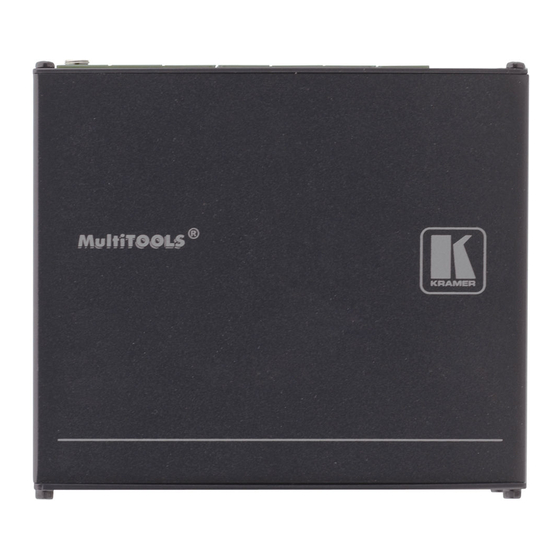

- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: SL-12 Master Room Controller...
-
Page 2: Table Of Contents
Operating the SL-12 Master Room Controller Technical Specifications Figures Figure 1: SL-12 Master Room Controller Figure 2: Connecting the SL-12 Master Room Controller Figure 3: SL-12 IR Inputs Figure 4: RS-232 Connection Figure 5: RS-485 Connection Figure 6: K-NET Pinout Connection... -
Page 3: Introduction
Introduction Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have... -
Page 4: Achieving The Best Performance
WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our... -
Page 5: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. -
Page 6: Overview
Overview Overview The SL-12 is a highly versatile controller that acts as an all-in-one control processor for control of A/V equipment—especially projectors and associated equipment—in any room (such as classrooms, boardrooms, or auditoriums). It streamlines operations and simplifies control by integrating audio, video, and computer-video sources into a centralized system. -
Page 7: Your Sl-12 Master Room Controller
3 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected) 4 Note that the SL-12 cannot receive power via the K-NET connector, but can power other units (but not another SL-12) -
Page 8: Connecting The Sl-12 Master Room Controller
1 See Section 5.2 2 Switch OFF the power on each device before connecting it to your SL-12. After connecting your SL-12, switch on its power and then switch on the power on each device 3 P/N: C-A35M/IRE; two IR Emitter extension cables are also available: a 15 meter cable and a 20 meter cable... -
Page 9: Figure 2: Connecting The Sl-12 Master Room Controller
Connect RS-232 port 3 to the plasma display 6. Connect the RS-485 to several Kramer matrices, for example 7. Connect the Ethernet port to a network. 8. Connect the K-NET port to any RC device with K-NET. Figure 2: Connecting the SL-12 Master Room Controller... -
Page 10: Using The Rc-4 Ir Transmitter
IR receiver , which exists in several cable lengths (shown in Figure 2 IR Input Functionality The SL-12 front panel includes one built-in receiver and two IR inputs on 3.5mm jacks (shown in Figure 3) for control via the RC-4. -
Page 11: Connecting The Rs-232 Interface
IR receiver Connecting the RS-232 Interface To connect an AV device to the SL-12 using the RS-232 port, connect the RS-232 9-pin D-sub port on your device to the RS-232 terminal block on the rear panel of the SL-12 as shown in... -
Page 12: Connecting The Rs-485 Interface
Site-CTRL control program. To connect the SL-12 to a network: 1. Connect the Ethernet port of the SL-12 to the Ethernet port on a network hub or network router, via a straight cable with RJ-45 connectors. 2. At the other end, connect the Internet to a PC running Site-CTRL. -
Page 13: Connecting The K-Net Port
Operating the SL-12 Master Room Controller You can operate your SL-12 using: • An RC family remote controller: To operate your device using an RC remote controller, see the Kramer K-Config Guide • The optional RC-4 infrared remote control transmitter... -
Page 14: Technical Specifications
Technical Specifications Technical Specifications The SL-12 technical specifications are shown in Table Table 3: SL-12 Master Room Controller Technical Specifications INPUTS: 4 RS-232, RS-485, 4 GPI/O and K-NET on terminal block connectors; Ethernet on an RJ-45 connector; 1 built-in receiver, 2 infrared on 3.5mm mini jack connectors;... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
