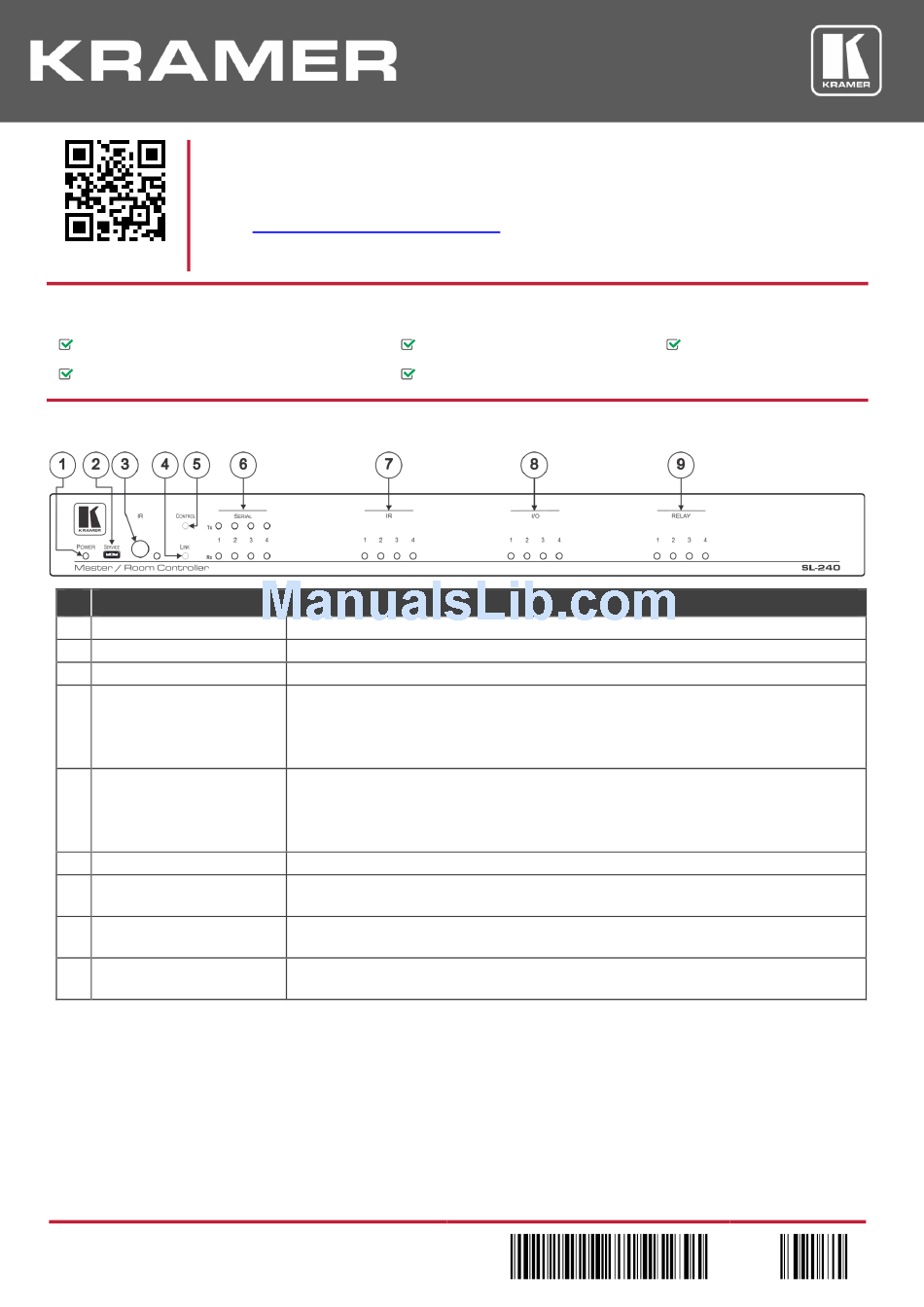

Kramer SL-240 Quick Start Manual

SL-240 Quick Start Guide
This guide helps you install and use your SL-240 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

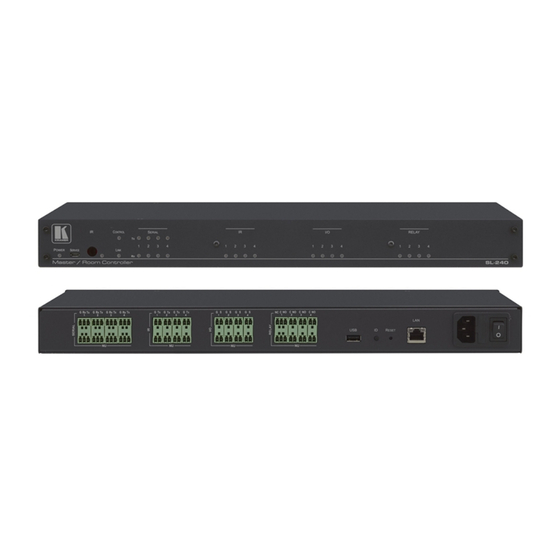

SL-240 Master / Room Controller
1 Power cord

Step 2: Get to know your SL-240

# Feature
1 POWER LED
2 SERVICE Mini USB 2.0 Port
3 IR Receiver and LED
4 LINK LED
5 CONTROL LED
6 SERIAL LEDs (from 1 to 4)
7 IR LEDs (from 1 to 4)
8 I/O LEDs (from 1 to 4)
9 RELAY LEDs (from 1 to 4)
SL-240 Quick Start (P/N: 2900-300728QS REV 2)
www.kramerav.com/downloads/SL-240
Function
Lights green when powered on.
Connect to a PC to perform a firmware upgrade.
Detects IR signals for IR learning and indicates an active signal by lighting blue.
Indicates Ethernet activity:
Blue LED on – good connection.
Blue LED flashing – no connection.
Blue LED off – not ready.
Indicates control states:
Green – the control application (brain) is ready and working.
Blue – the control application (brain) is synchronizing.
Red – indicates an error in the control application (brain).
White Tx LEDs and blue Rx LEDs flash to indicate activity on each channel.
Blue LEDs indicating IR activity on each channel (the associated LED lights when the
relevant IR port transmits data).
Blue LEDs indicating I/O activity on each channel (the associated LED lights on Digital Out
HIGH, and when Digital In is triggered).
Blue LEDs indicating relay activity on each channel (the associated LED lights when the
relay is closed).
to download the latest user manual and check if firmware
1 Set of rack ears
4 Rubber feet
P/N:
2900- 300728QS
1 Quick start guide
Rev:
2
