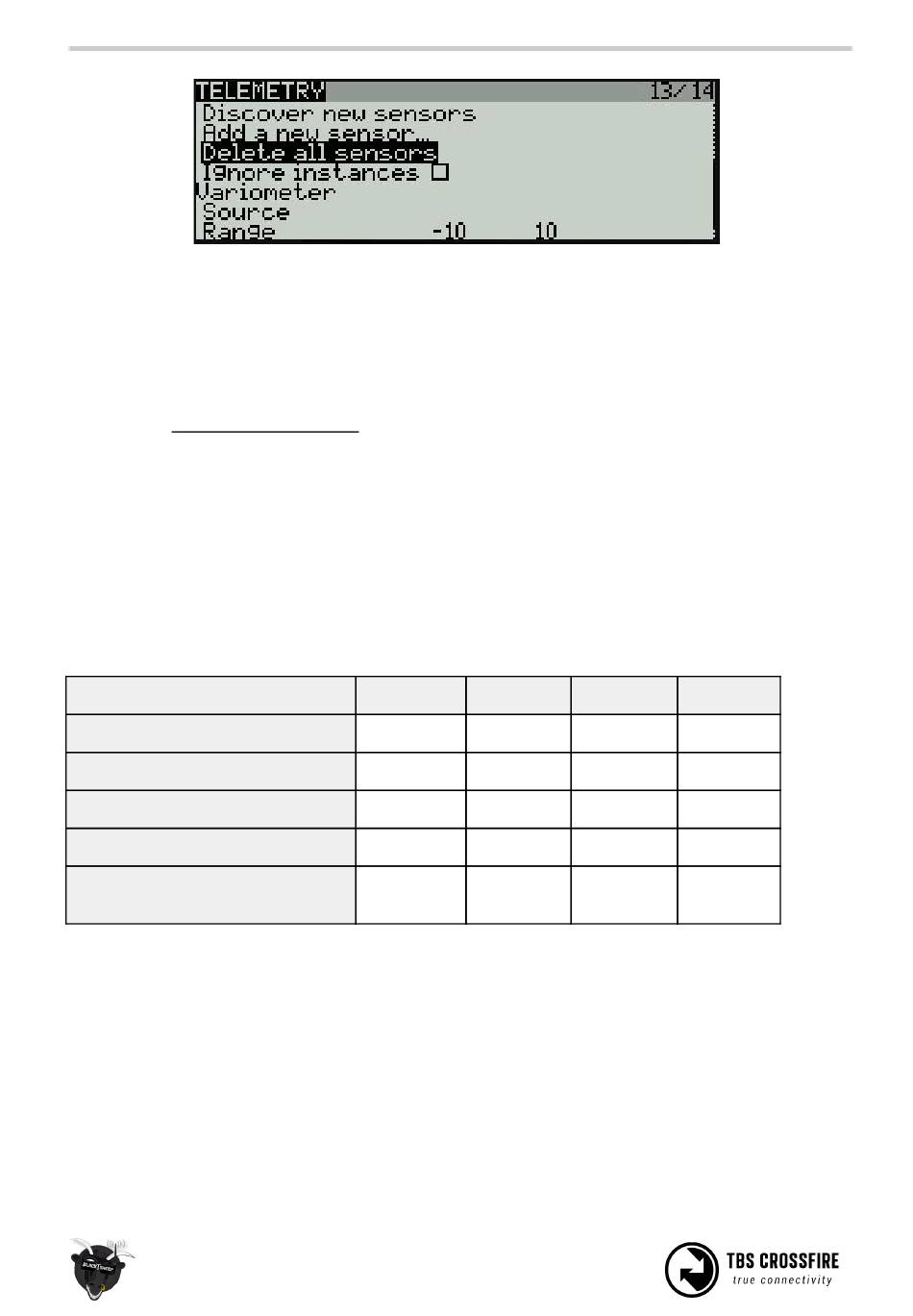

In-built Voltage monitoring
The Crossfire receivers are capable of measuring the voltage of their power supply . This becomes handy
when you use a rc glider where space matters.
This feature works on up to a 2s LiPo (max. Operation voltage for all receivers!) for almost all receivers,
except for the ​ N ano Rx rev 43 and lower​ .
If you experience issues with a other voltage sensor in your system, you can disable the Crossfire sensor in
the settings under ​ R eceiver/General - Voltage Sensor
Bst connection
BST (Blacksheep telemetry) is a bus system used by TBS to connect your gear like the TBS GPS puck, CORE
PRO etc.. All devices are connected in parallel. The BST bus needs to get clean 5v to power up the
connected devices:
TBS CROSSFIRE
TBS BLACKBOX (discontinued)
TBS GPS
TBS CORE PRO / FPVISION
TBS CURRENT SENSOR
Power type: BST 5V
✔ PWR IN
✔ PWR IN
✔ PWR IN
✔ PWR OUT
✔ PWR IN
VBATT BEC 5V
✔ PWR IN
✔ PWR IN
✔ PWR
OUT
46
FC 5V
✔ PWR IN
