Other radios
If you own a radio without a JR-bay, you need to use the Standard/ Lite transmitter with their input pins
for many trainer-port connectors, which you then connect to the RC In plug.
Note: over this connection you can not use CRSF between your radio and the Crossfire Tx. If your radio
supports CRSF, you need to feed the signal wire in the plug on the right. Check the Tx
p inout
f or details.

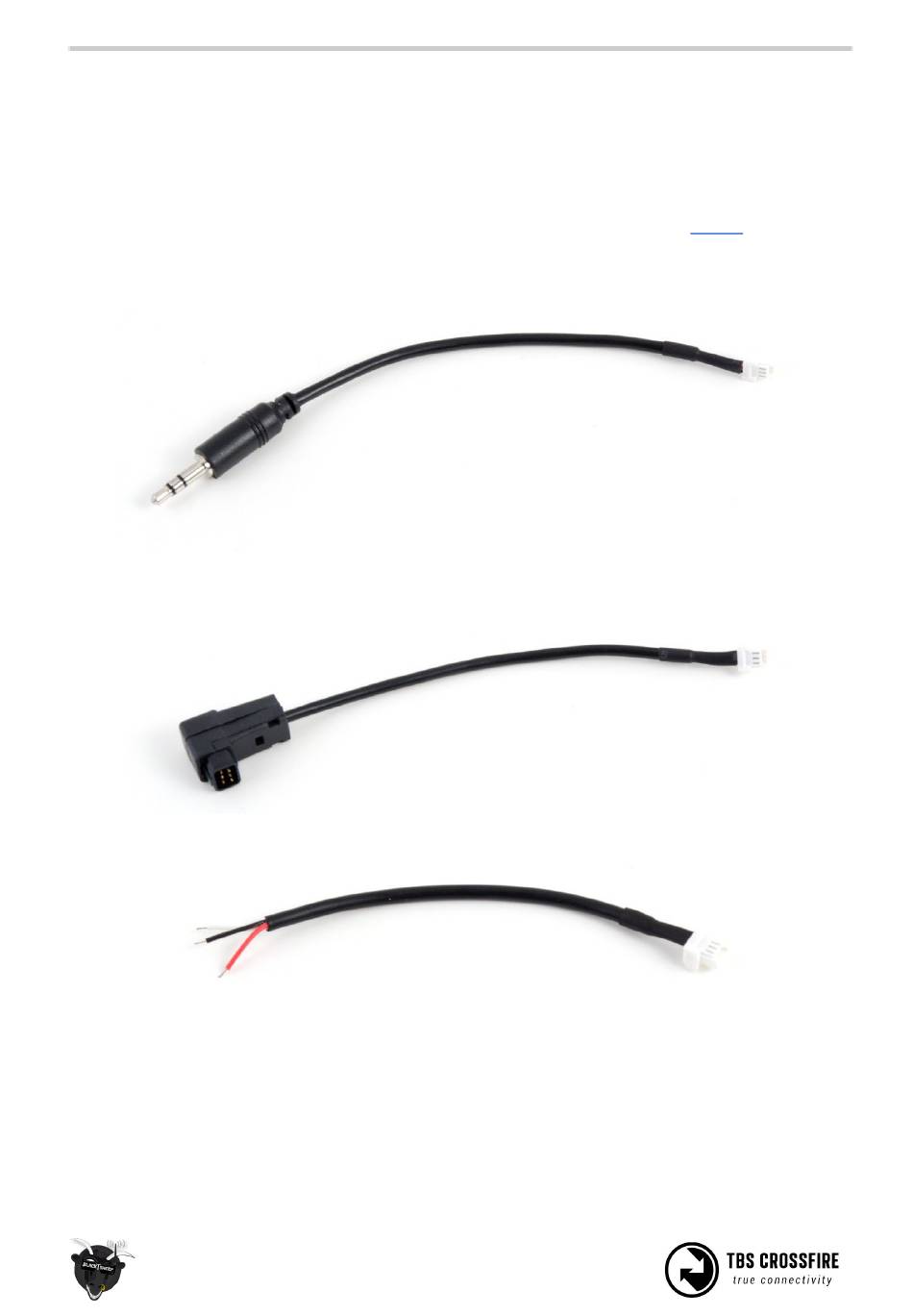

Hitec/Graupner/JR-cable
Futaba-cable
Custom PPM cable
13
