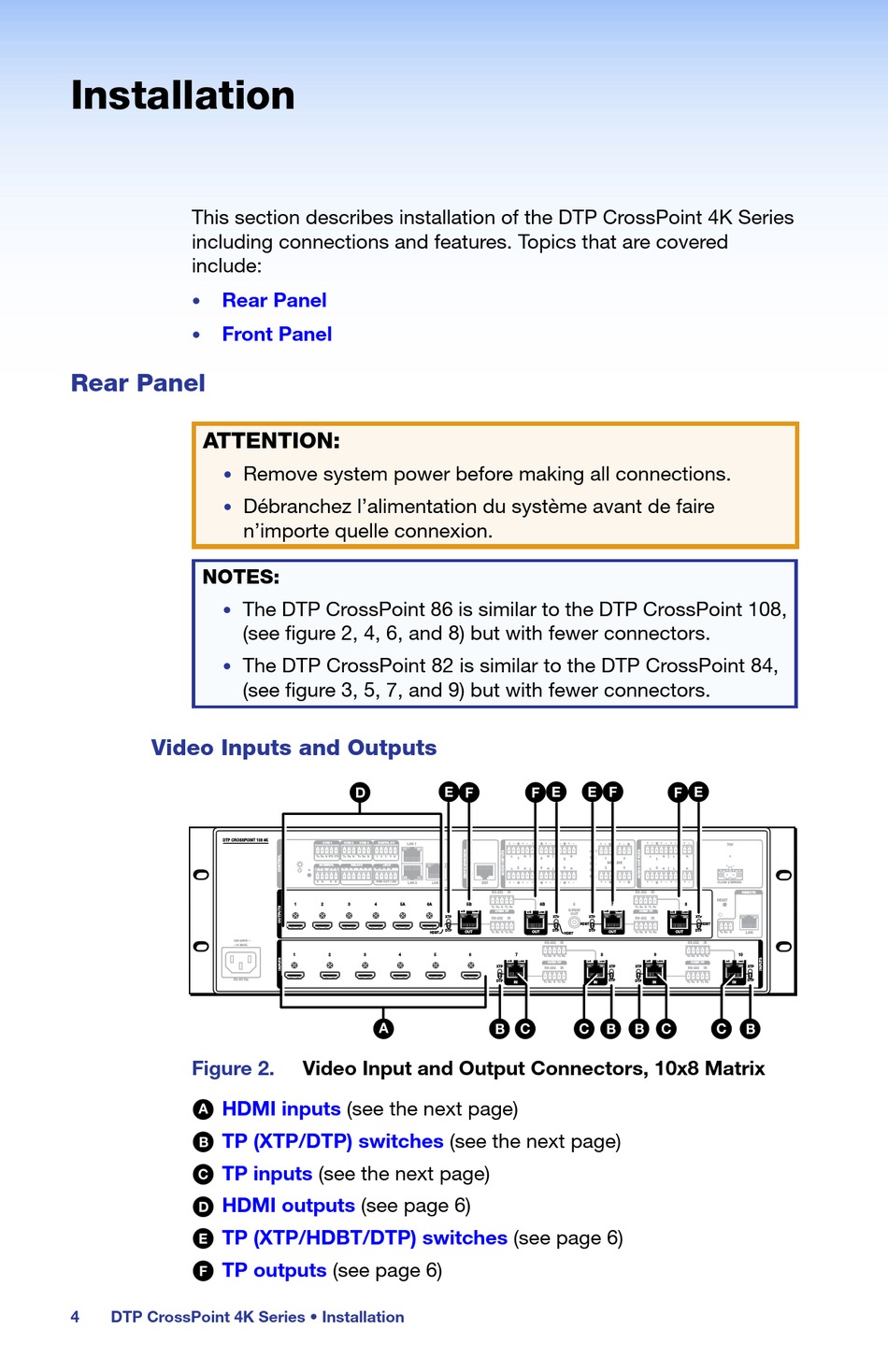

Installation

This section describes installation of the DTP CrossPoint 4K Series
including connections and features. Topics that are covered
include:
•

Rear Panel

Front Panel
•
Rear Panel
ATTENTION:
•
•
NOTES:
•
•

Video Inputs and Outputs

DTP CROSSPOINT 108 4K
100-240V ~
--A MAX
50-60 Hz
Figure 2.
A
HDMI inputs
B
TP (XTP/DTP) switches
C
TP inputs
D
HDMI outputs
E
TP (XTP/HDBT/DTP) switches
F
TP outputs
4 DTP CrossPoint 4K Series • Installation
Remove system power before making all connections.
Débranchez l'alimentation du système avant de faire
n'importe quelle connexion.
The DTP CrossPoint 86 is similar to the DTP CrossPoint 108,
(see igure 2, 4, 6, and 8) but with fewer connectors.
The DTP CrossPoint 82 is similar to the DTP CrossPoint 84,
(see igure 3, 5, 7, and 9) but with fewer connectors.
D
COM 1 COM 2 COM 3 DIGITAL I/O
LAN 1
Tx Rx G RTS CTS Tx Rx G Tx Rx G 1 2 3 4 G
IR/SERIAL RELAYS eBUS
1 2 1 2 C 3 4 C +V +S -S G
R
S G S G PWR OUT = 6W LAN 2
1 2 3 4 5A
1 2 3 4
A
Video Input and Output Connectors, 10x8 Matrix
(see the next page)
(see the next page)
(see page 6)
(see page 6)
E F F E E
+48V
L R L R L R
1
1 3 5
2
2 4 6
L R L R L R
3
4
LAN 3 EXP
RS-232 IR
6A 5B 6B 6
Tx Rx G Tx Rx
S/PDIF
SIG LINK OVER TP
SIG LINK
OUT
XTP XTP XTP
RS-232 IR
HDBT
DTP DTP DTP
OUT Tx Rx G Tx Rx OUT
HDBT HDBT
RS-232 IR
5 6 7
Tx Rx G Tx Rx
SIG LINK
SIG
OVER TP
XTP
RS-232 IR
DTP
Tx Rx G Tx Rx
IN IN
B C C
(see the next page)
(see page 6)
F F E
70V
L R L R 1
1 3 3
1
MIC/LINE
2 4 2 4
L R L R
CLASS 2 WIRING
REMOTE
RS-232 IR
RESET
7 8
Tx Rx G Tx Rx
SIG LINK OVER TP
SIG LINK
XTP
RS-232 IR
HDBT
DTP
OUT Tx Rx G Tx Rx OUT Tx Rx G LAN
RS-232 IR
8 9 10
Tx Rx G Tx Rx
SIG LINK
LINK SIG LINK
OVER TP
XTP
XTP XTP
RS-232 IR
DTP DTP DTP
Tx Rx G Tx Rx
IN IN
B B C C B
