Technical data

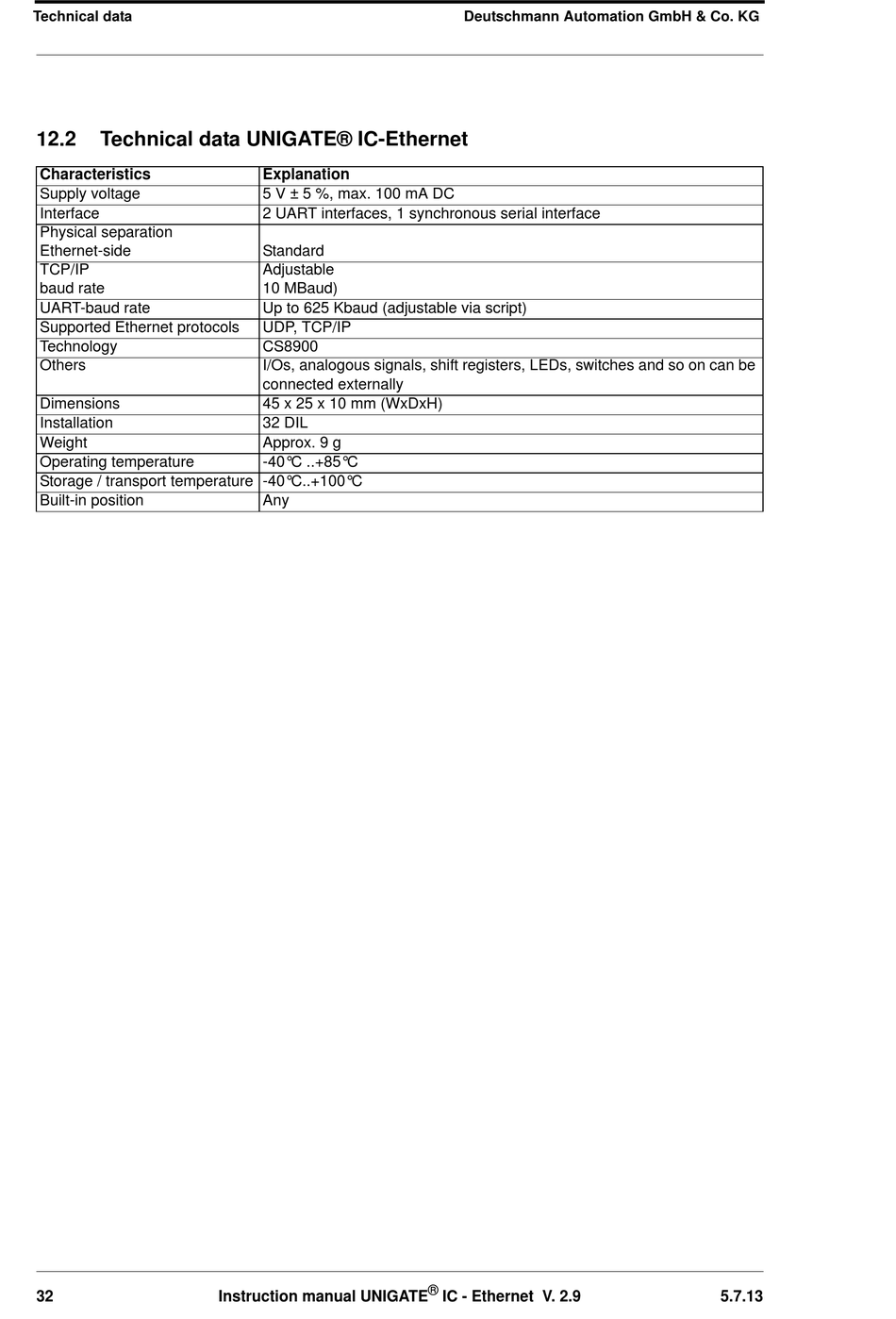

12.2 Technical data UNIGATE® IC-Ethernet
Characteristics
Supply voltage
Interface
Physical separation
Ethernet-side
TCP/IP
baud rate
UART-baud rate
Supported Ethernet protocols
Technology
Others
Dimensions
Installation
Weight
Operating temperature
Storage / transport temperature -40°C..+100°C
Built-in position
32
Explanation
5 V ± 5 %, max. 100 mA DC
2 UART interfaces, 1 synchronous serial interface
Standard
Adjustable
10 MBaud)
Up to 625 Kbaud (adjustable via script)
UDP, TCP/IP
CS8900
I/Os, analogous signals, shift registers, LEDs, switches and so on can be
connected externally
45 x 25 x 10 mm (WxDxH)
32 DIL
Approx. 9 g
-40°C ..+85°C
Any
