Accelnet
heatsInk kIt InstallatIon
• Standard heatsink for accelnet Plus Panel Be2
• Complete kit for user installation of the heatsink
deSCrIPTIon
The Be2-HK is a kit containing a heatsink and mounting
hardware for field installation of a standard heatsink onto a
BE2 model servo drive.
To order an Be2 drive with heatsink fitted at the factory,
add "-H" to the model part number.
InSTallaTIon
1) Place the heatsink fins-down on a work surface. orient the heatsink so that the edge with part number
is away from you. The hole for the BE2 grounding lug should be to your left.
2) remove the clear protective film from the thermal material and discard it. Place the thermal material
onto the heatsink in the placement area which is marked with four white "l".
apply light pressure to ensure that the thermal material is flat.
3) Peel the white protective layer away from the thermal material. do this slowly from one corner so as
not to lift the thermal material from the heatsink.

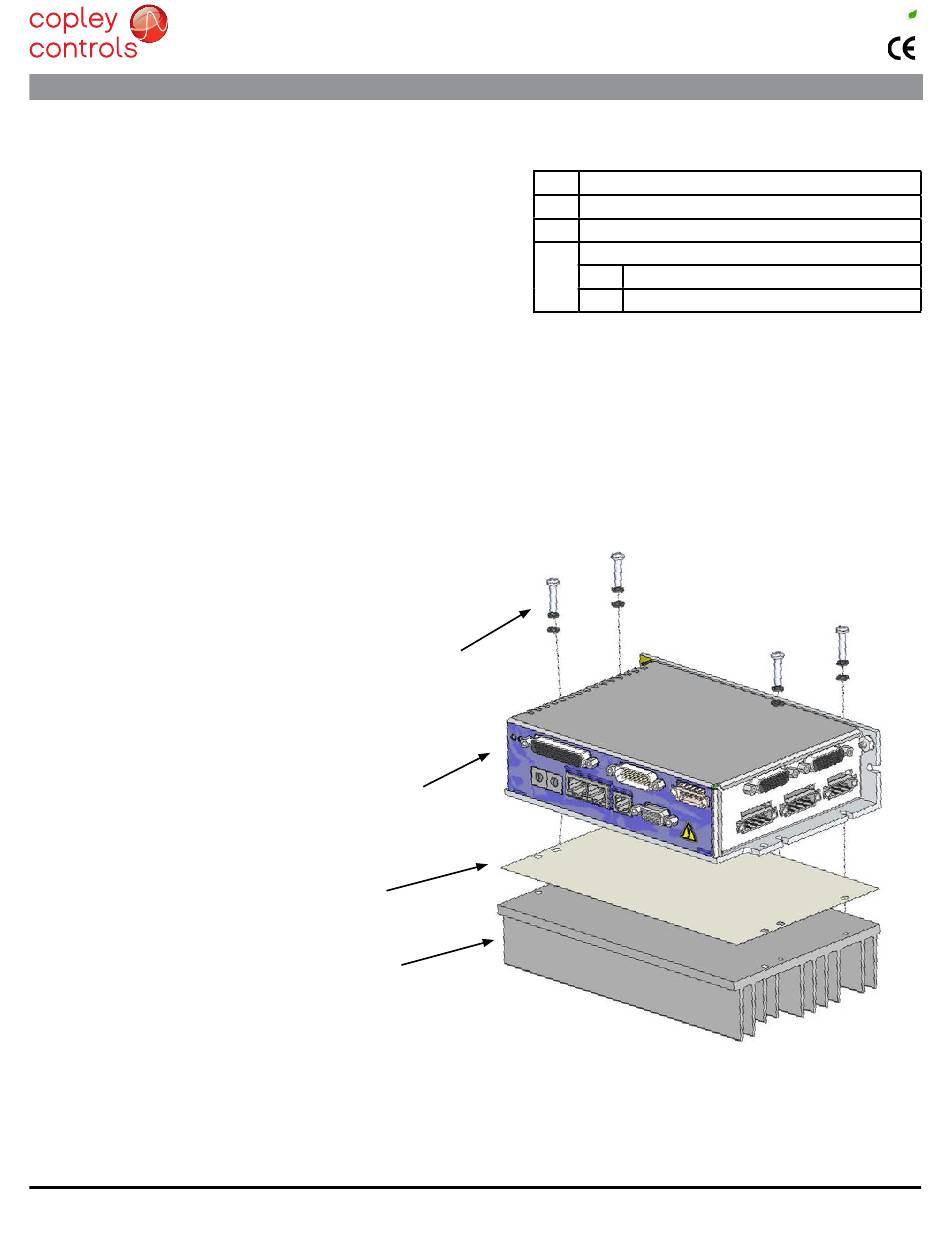

4) align the Be2 as shown and lower onto the heatsink. If needed to adjust the position, lift it away from
the thermal material and lower onto the heatsink again.
5) Install the four mounting screws with flat washers and tighten evenly. Torque to 17.8 lb-in (2.0 nm)
maximum.
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Web: www.copleycontrols.com
Plus
2-Axis Panel EtherCAT
Mounting
Screws (4)
BE2
Drive
Thermal material
Heatsink
Be2-HK HeaTSInK KIT ParT lIST
Qty Description
1 Heatsink, standard, Be2-HS
1 Thermal material, 4x4 in.
Kit, Heatsink Hardware, Be2
1 4 Washer, flat, #8
4 Screw, Pan, SemS, #8-32 x 1/2 in
Tel: 781-828-8090
BE2
RoHS
Fax: 781-828-6547
Page 30 of 33
