Accelnet
therMals: MountIng & therMal resIstance
mounTInG
Thermal data for convection-cooling
with a heatsink assumes a vertical
mounting of the drive on a thermally
non-conducting surface. Heatsink fins
run parallel to the long axis of the
drive. When fan-cooling is used vertical
mounting is not necessary to guarantee
thermal performance of the heatsink.
no heatsInk, no fan
ConVeCTIon
heatsink, no fan
ConvECtion
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Web: www.copleycontrols.com
Plus
2-Axis Panel EtherCAT
THermal reSISTanCe
Thermal resistance is a measure of the temperature rise of the drive heatplate due to
power dissipation in the drive. It is expressed in units of °C/W where the degrees are
the temperature rise above ambient.
E.g., an drive dissipating 16 W mounted with no heatsink or fan would see a
temperature rise of 38.2C above ambient based on the thermal resistance of 2.39C/W.
Using the drive maximum heatplate temperature of 70C and subtracting 38.2C from
that would give 31.7C as the maximum ambient temperature the drive in which the
drive could operate before going into thermal shutdown. To operate at higher ambient
temperatures a heatsink or forced-air would be required.

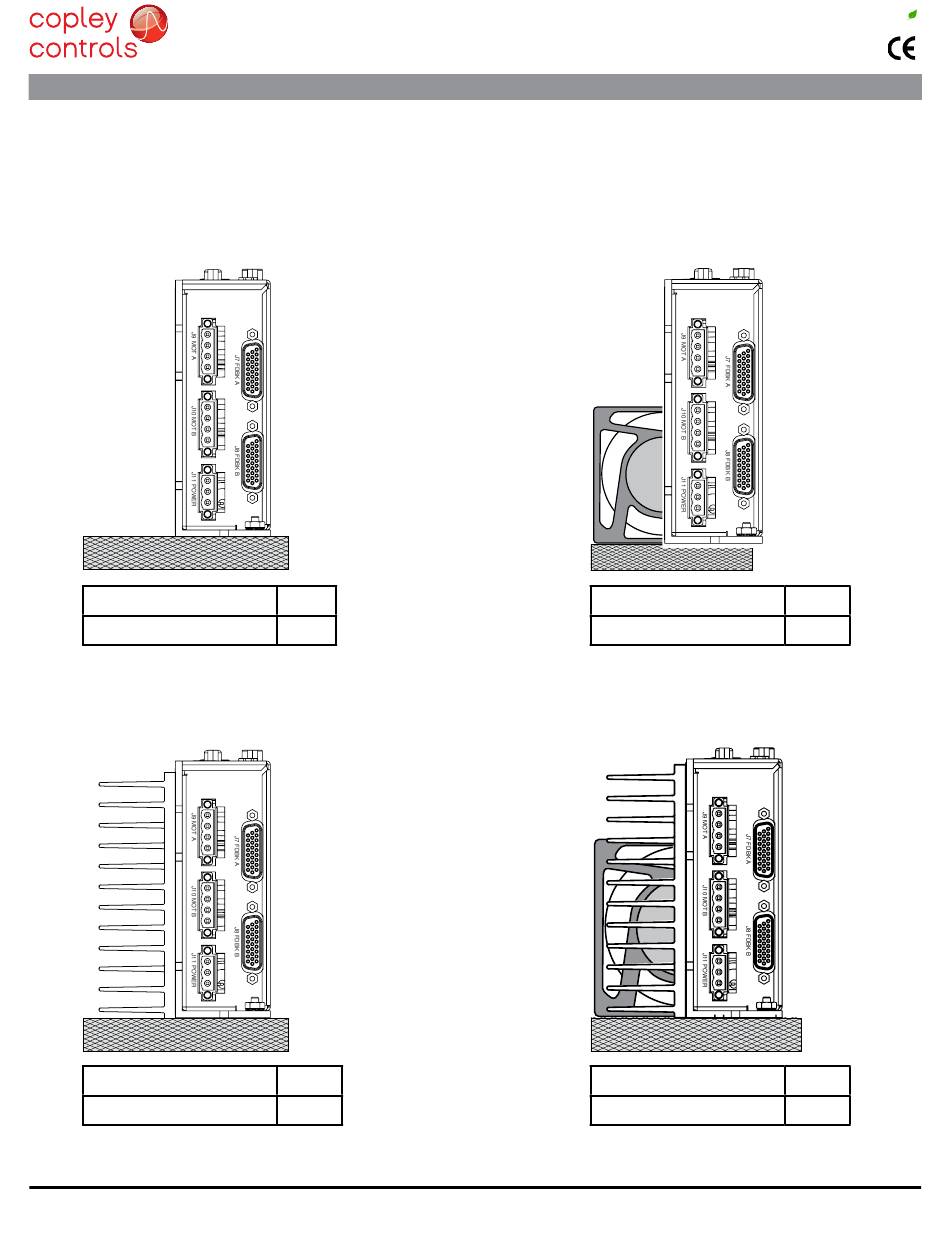

top vieWs
vertiCal mounting
°c/w
2.32
°C/W
1.28
+HV
0V
AUX
no heatsink + fan
forCED-Air, 300 lfm
+HV
0V
AUX
heatsink + fan
forCED-Air, 300 lfm
Tel: 781-828-8090
BE2
RoHS
°C/W
0.98
°C/W
0.61
Fax: 781-828-6547
Page 29 of 33
