Copley Controls Accelnet Plus Dual-Axis Panel EtherCAT Manual page 28

Accelnet

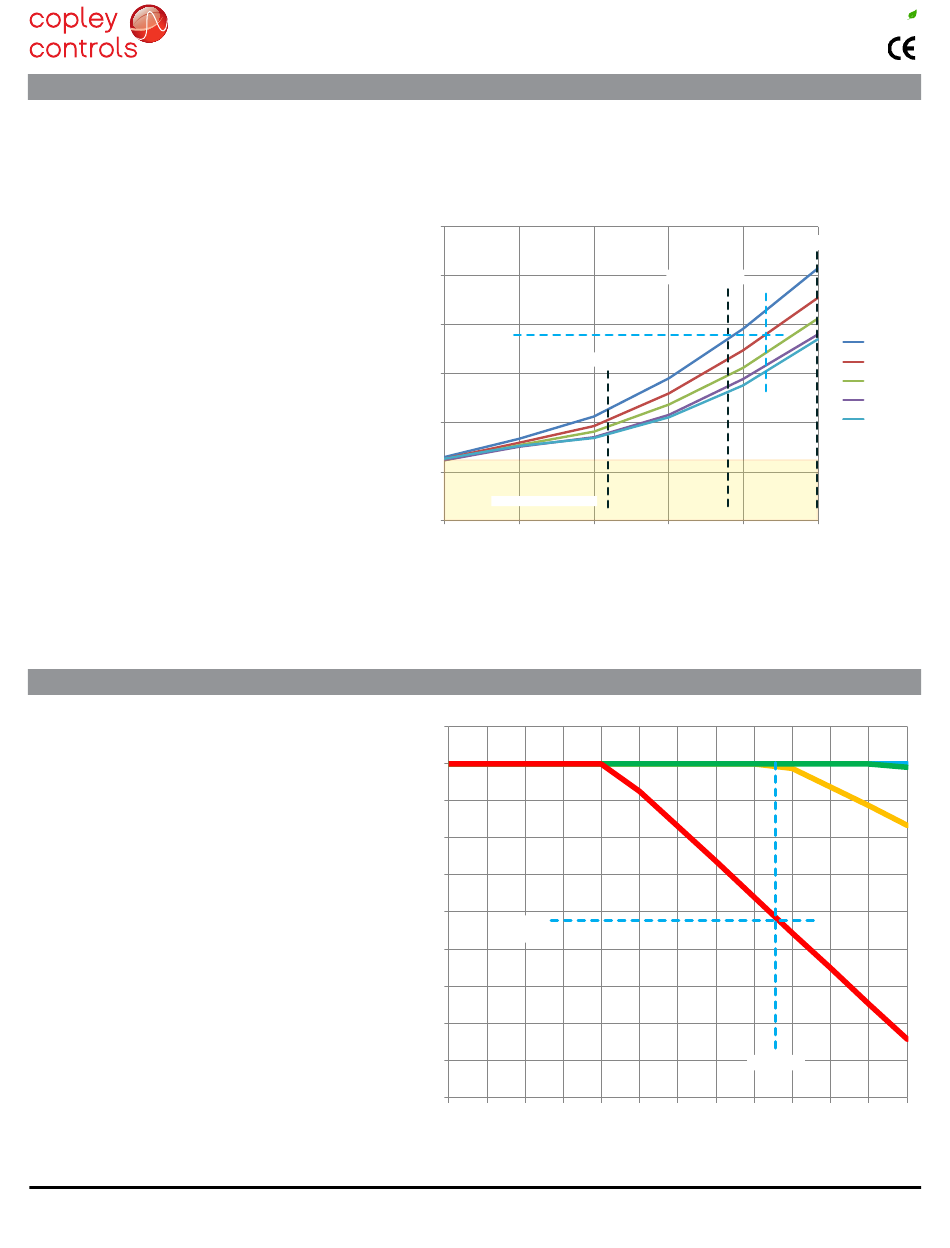

therMals: power dIssIpatIon
The top chart on this page shows the internal power dissipation for one axis of the BE2 under differing
power supply and output current conditions. The +HV values are for the average dC voltage of the drive
power supply. The lower chart shows the temperature rise vs. power dissipation under differing mounting
and cooling conditions.
ToTal PoWer dISSIPaTIon
use this chart to find the total power
dissipation for both axes.
Example:
Power supply HV = 65 Vdc
Axis 1 current = 7.5 A, axis 2 = 9.0 A
Total current = 16.5 A
Total dissipation = 19 Watts
therMals: MaXIMuM operatIng teMperature Vs. dIssIpatIon
use this chart to find the maximum
operating temperature of the drive under
differing mounting and cooling conditions.
Example:
Using the 19 W value from the calculations
above, draw a vertical line. This shows
that 24 C is the maximum operating
temperature for nHSnf, and that any of
the other mounting/cooling options will be
sufficient for operation up to the maximum
ambient temperature of 45 C.
HSf = Heat Sink (with) fan
nHSf = no Heat Sink (with) fan
HSnf = Heat Sink no fan
nHSnf = no Heat Sink no fan
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Web: www.copleycontrols.com
Plus
2-Axis Panel EtherCAT
30 W
25 W
20 W
19 W
15 W
10 W
5 W
Quiescent power
0 W
disabled 0A
Total continuous output current of both axes
50C
45C
40C
35C
30C
25C
24 C
20C
15C
10C
5C
0C
2W 4W 6W
BE2-090-14
BE2-090-06
5.0A 10A
nHSnf
8W 10W 12W 14W 16W 18W 20W 22W 24W 26W
Internal power dissipation (Watts)
Tel: 781-828-8090
BE2
RoHS
BE2-090-20
80V
65V
50V
16.5 A 35V
20V
15A 20A
HSf or nHSf
HSnf
19 W
Fax: 781-828-6547
Page 28 of 33
HSF
HSN
NHS
NHS
