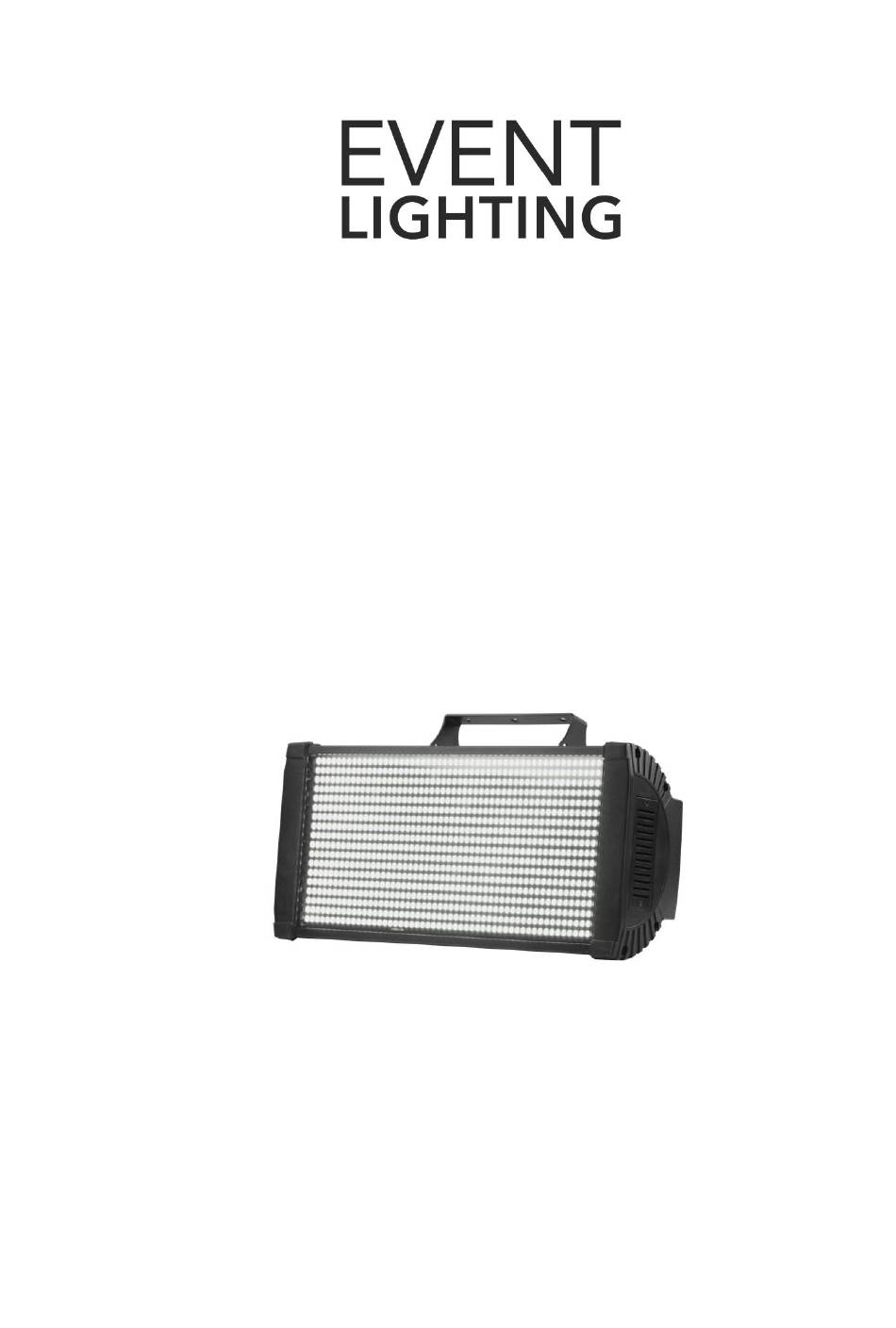

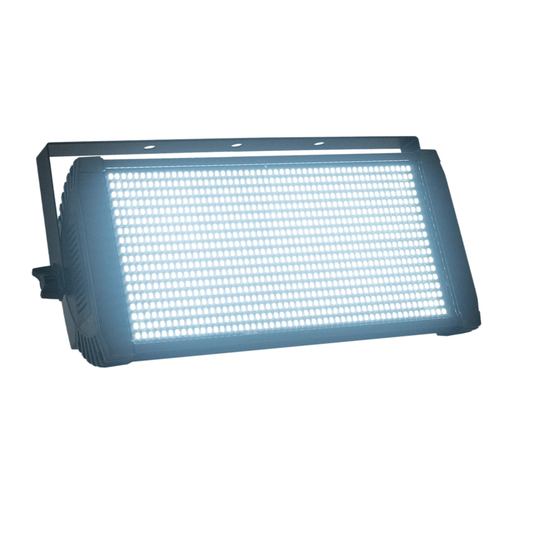

Strobe
Model No. StrobeX
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 2.0
Advertisement
Table of Contents
Related Manuals for Event Lighting StrobeX
Summary of Contents for Event Lighting StrobeX
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Lux chart Control Board Operation DMX address setting DMX modes setting Manual modes setting Auto run setting Master/slave setting DMX chart Technical specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
www.event-lighting.com.au Lux Chart Menu Map Address <001> to <512> DMX address Channel D4, S4, 6, 10 DMX channel modes Strobe speed, “0” no strobe, “001” to “255”, slow to Manual Strobe <000> to <255> fast BLOCK 1 <000> to <255> Dimmer for Block 1 BLOCK 2 <000>... -
Page 5: Dmx Chart
Use DMX to link master and slave fixture together. DMX Data When there is a ‘*’ flashing, the StrobeX is not receiving any DMX signal. A solid ‘*’ indicated DMX signal is being received. DMX takes priority over all other functions when a signal is being received. - Page 6 www.event-lighting.com.au D4 channels Mode Channel Value Function 000-009 No Function 010-255 Block 1 dimmer 0% ~ 100% 000-009 No Function 010-255 Block 2 dimmer 0% ~ 100% 000-009 No Function 010-255 Block 3 dimmer 0% ~ 100% 000-009 No Function 010-255 Block 4 dimmer 0% ~ 100% 6 channels Mode...
- Page 7 www.event-lighting.com.au 10 channels Mode Channel Value Function 000-255 Master dimmer 0% ~ 100% 000-010 No Function 011-255 Block 1 dimmer 0% ~ 100% 000-010 No Function 011-255 Block 2 dimmer 0% ~ 100% 000-010 No Function 011-255 Block 3 dimmer 0% ~ 100% 000-010 No Function 011-255...
-
Page 8: Technical Specifications
Cooling: Sensor thermostat controlled variable speed fan Housing Materials: ABS & steel Housing Finishing: Matte Black Net Weight: 6 kg Overall Size: 425 x 215 x 125 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
