RGB Strobe

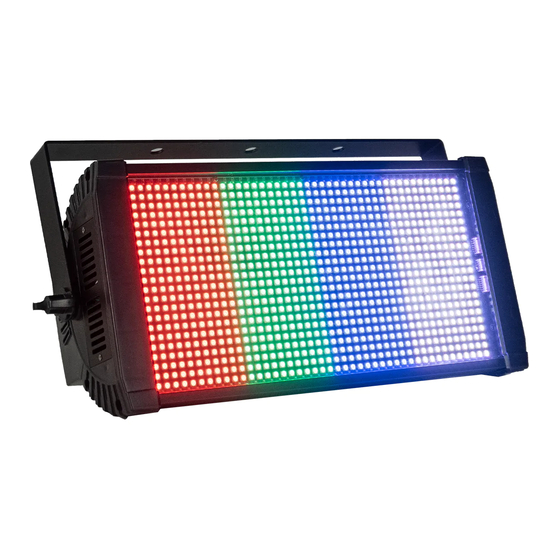

Model No. STROBEXRGB
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting STROBEXRGB
Summary of Contents for Event Lighting STROBEXRGB
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Lux chart Dimensions Control Board Operation DMX address setting DMX modes setting Manual modes setting Auto run setting Master/slave setting DMX chart Technical specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
www.event-lighting.com.au Lux Chart Dimensions... -
Page 5: Dmx Address Setting
www.event-lighting.com.au Menu Map Address <001> to <512> DMX address Channel 3, 6, 9, 18, 25 DMX channel modes Option Standard, Quiet Select quite mode or standard mode Channel 3 Mode CH:01 to CH:03 Select DMX channel mode first, set up each channel values to manual control according to DMX chart. -
Page 6: Dmx Chart
www.event-lighting.com.au Set up DMX channel from control panel. When fixture is in 3 DMX channel mode, you will only able to set up from Ch1 to Ch3. When fixture is in 25 DMX channel mode, you will only able to set up from Ch1 to Ch25. Use “Up”... - Page 7 www.event-lighting.com.au 9 channels Mode Channel Value Function 000-255 Master dimmer 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 Strobe speed and repetitions 000-255 Strobe interval (0 = longest, 255 = shortest) 000-255 Random strobe 000-255 Special effect...
- Page 8 www.event-lighting.com.au 000-255 Block 4 red 000-255 Block 4 green 000-255 Block 4 blue 000-255 Strobe on duration 000-255 Strobe rate 000-255 Random strobe 000-255 Special effect 000-255 Speed of special effect 25 channels Mode Channel Value Function 000-255 Master dimmer 000-255 Block 1 red 000-255...
-
Page 9: Technical Specifications
Housing Finishing: Matte Black • Dimension: 500 x 135 x 270 mm • Cooling: Sensor thermostat controlled variable speed fan • Net Weight: 6.5 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
