SURF640

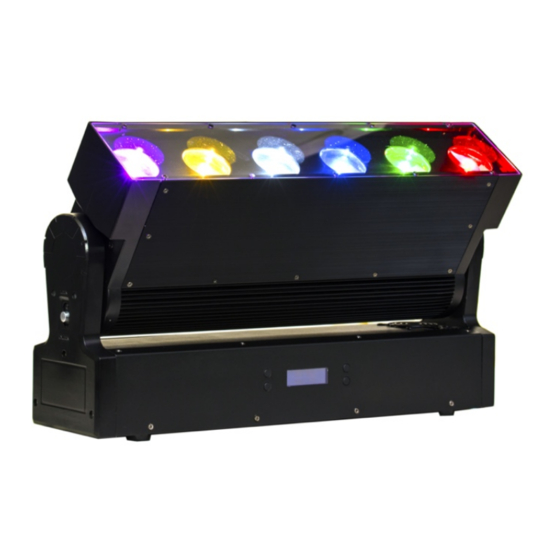

6X40W TILT BAR WITH ZOOM
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 3.0 (06 May 2020)
www.event-lighting.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SURF640 and is the answer not in the manual?

Questions and answers

Summary of Contents for Event Lighting SURF640

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
  • Page 2: Safety Instructions

    Safety Instructions Warning Do not open this device, there are no user-serviceable parts inside. Risk of electric • shock. • Do not look at the light source when the device is on. Caution: This unit's housing may be hot during and after operation. Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from •...
  • Page 3: Product Installation

    Product Installation This device can be mounted in many orientations provided each individual device is • secured by the use of correct mounting bracket. • Use a safety chain when mounting this device overhead. www.event-lighting.com.au...
  • Page 4: Lux Chart

    Dimensions Lux Chart Lux @ 4° Distance (m) Diameter (m) Ø 0.06 Ø 0.2 Ø 0.33 Ø 0.55 Ø 0.68 11,200 2,450 1,670 16,700 5,300 2,550 1,210 7,200 2,160 1,070 23,000 7,350 3,550 1,735 1,300 Full 46,000 13,900 8,450 3,980 2,500 www.event-lighting.com.au...
  • Page 5: Menu Operation

    Lux @ 38° Distance (m) Diameter (m) Ø 0.7 Ø 2.2 Ø 2.5 Ø 5.6 Ø 6.8 2,110 3,180 1,310 4,580 Full 9,200 1,268 Menu Operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter –...
  • Page 6 Pixel Reverse Reverse pixel DMX addressing (on/off) LCD Reverse Reverse LCD (on/off). Can also be changed by pressing the UP and DOWN buttons simultaneously. Pixel Frequen Pixel refresh rate. 1.2K, 2.4K, 3.6K, 4.8K, 6K, 7.2K, 8.4K, 9.6K, 10.8K, 12K, 13.2K, 14,4K, 15.6K, 16.8K, 18K, 19.2K, 20.4K, 21.6K, 22.8K, 24K.
  • Page 7 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Brightness Shutter Closed (No Light) Aug-15 No function (Shutter On) 16-119 Strobe effect Slow to Fast 120-127 No function (Shutter On) 128-183 Strobe Random Slow to Fast (All pixels) 184-191 No function (Shutter On) 192-247 Strobe Random Slow to Fast (Random pixels) 248-255...
  • Page 8 86-171 Fan Speed (Low) 172-255 Fan Speed (High) 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Dim Coarse 0-255 Dim Fine 46 Channel Mode Channel Value Function Applies To Normal Reverse 0-255 Tilt Coarse 0-255 Tilt Fine Shutter Closed (No Light) 8-15 No function (Shutter On) 16-119...
  • Page 9 0-255 Blue 0-255 White 0-255 Dim Coarse 0-255 Dim Fine 0-255 0-255 Green 0-255 Blue Pixel 2 Pixel 5 0-255 White 0-255 Dim Coarse 0-255 Dim Fine 0-255 0-255 Green 0-255 Blue Pixel 3 Pixel 4 0-255 White 0-255 Dim Coarse 0-255 Dim Fine 0-255...
  • Page 10: More Functions

    More Functions Remote Device Management (RDM) which allows users to remotely control the device. • Users can use RDM to remotely change the DMX address and the DMX settings. Each device has a unique RDM code programmed during manufacture to facilitate this function.
  • Page 11: Warranty

    Overall size: 498 x 193 x 304 mm • Net Weight: 11.5 kg • Rigging: 2x Omega brackets with ¼ turn quick locks • Optional Roadcase: SURF640RC • Warranty Please refer to your local dealer or contact Event Lighting Pty Ltd. www.event-lighting.com.au...
