AMP Research PowerStep Installation Manual page 7

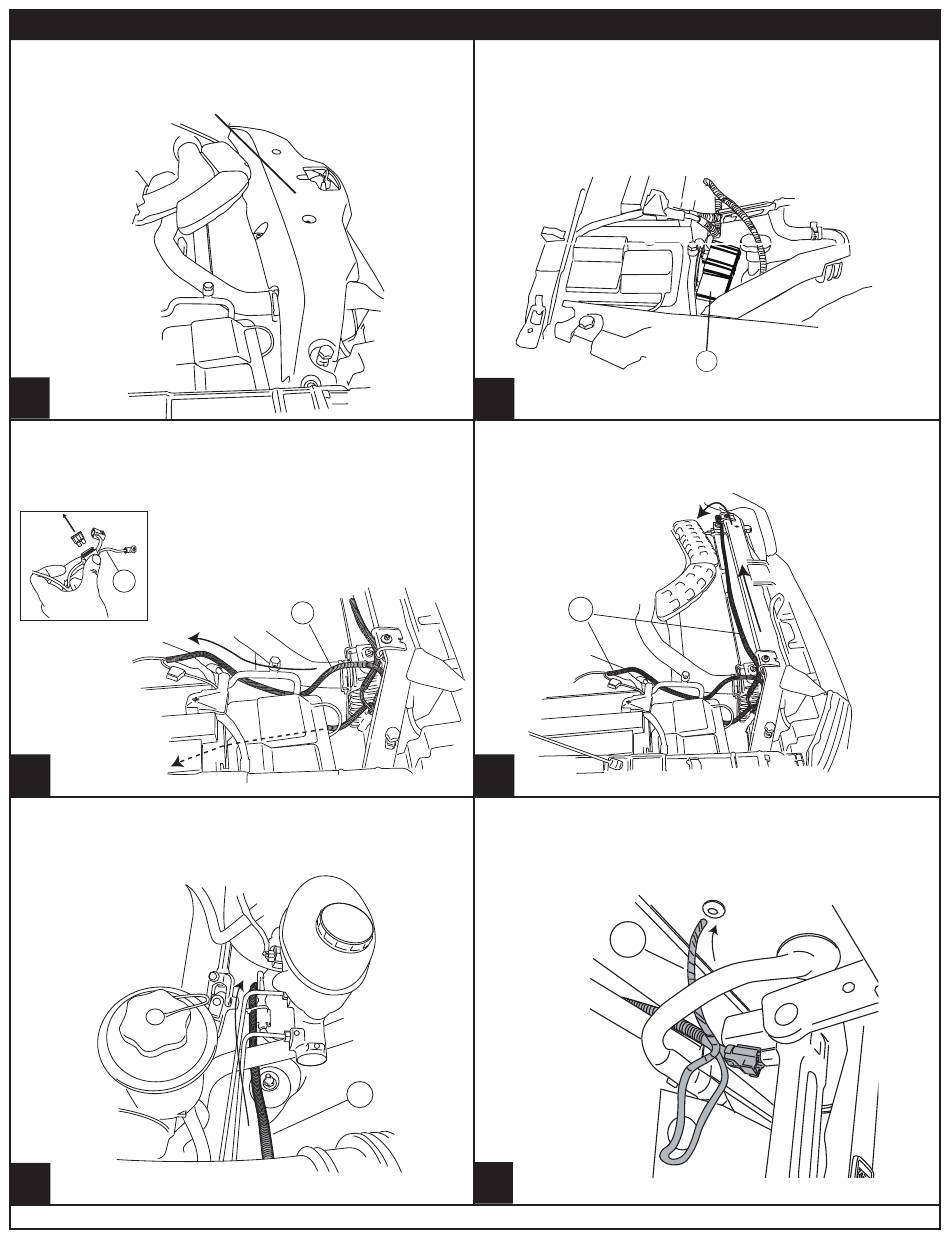

Remove fan shroud to allow for wire routing. Shroud
will be reinstalled in a later step.
1
11
Remove fuse.
6
13
Route longer leg of harness down along driver-side
wheel well and along frame of vehicle. Secure with tie
wraps.
5
15
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P
Connect red and black
power leads to battery. Red
lead goes to positive.
Route shorter leg of harness
down passenger-side wheel
well.
6
6
– F O R D F 1 5 0
T M
Mount controller with the two 11" tie wraps to
factory conduit. Route wire harness under core
support and down toward controller. Attach
harness to controller (make sure connector locking
tabs fully engage).
12
Secure harness with tie wraps.
Route longer leg of harness across front and down
under driver side. Secure harness with tie wraps and
reinstall shroud.
6
14
Puncture grommet and thread all four trigger wires
up into the cabin of vehicle. The grommet is located
on driver-side behind forward linkage assembly.
6
16
7/10
5
