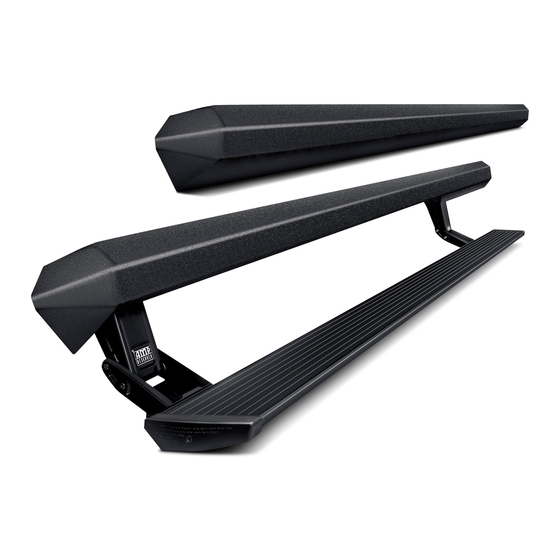

Installation Manual
APPLICATION
Ford F50 RegularCab
Ford F50 SuperCab
Ford F50 SuperCrew
I N S T A L L A T I O N G U I D E
LENGTH
MODEL YR
55"
205
72"'
205
85"
205
PART #
765-0A
765-0A
765-0A
INSTALLATION TIME
2-3 Hours
Professional installation recommended
SKILL LEVEL
2
4= Experienced
TOOLS REQUIRED
q Safety goggles
q 0 mm socket
q 3 mm socket
q 3 mm end wrench
q Ratchet wrench and extension
q Wire stripper
q 9/32" & 9/64" Drill Bit
q 3/6" hex key wrench ( allen wrench)
q 4mm hex key wrench ( allen wrench)
q Electrical tape
q Weather proof caulking ( silicone
sealer )
4
3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMP Research PowerStep
Summary of Contents for AMP Research PowerStep
- Page 1 I N S T A L L A T I O N G U I D E APPLICATION LENGTH MODEL YR PART # Ford F50 RegularCab 55” 205 765-0A Ford F50 SuperCab 72”’ 205 765-0A Ford F50 SuperCrew 85” 205 765-0A INSTALLATION TIME 2-3 Hours...
-
Page 2: Exploded View
A M P R E S E A R C H P O W E R S T E P – F O R D F - 5 0 INSTALLATION GUIDE Attaching motor to linkage assembly The motors must be attached to the linkage assemblies before continuing the installation process. - Page 3 A M P R E S E A R C H P O W E R S T E P – F O R D F - 5 0 Note: Some Applications require modification. Application Cut Length Regular Cab 55”...
- Page 4 A M P R E S E A R C H P O W E R S T E P – F O R D F - 5 0 PARTS LIST AND HARDWARE IDENTIFICATION 9-02640-90 Grommet 9-03356-90 (Only needed 9-02802-90 on SuperCab and Regular Nut with Conical...
- Page 5 A M P R E S E A R C H P O W E R S T E P – F O R D F - 5 0 Locate mounting points; first and last set of studs on the inner sill. Motor Linkage mounts toward the front of the truck and Idller mount toward the rear.
- Page 6 A M P R E S E A R C H P O W E R S T E P – F O R D F - 5 0 Connect red and black power leads to battery. Remove fuse from wire harness Red lead goes to positive.
- Page 7 Connection Module Power (12V) Posi-Splice Powerstep Power (12V) Powerstep Connection Module Connection Module Direct to Port Option Direct to Port Option To Powerstep Direct to Port Option To Powerstep Motors To Powerstep Motors Motors Pass-Through Harness Option Pass-Through Harness Option Powerstep...
- Page 8 A M P R E S E A R C H P O W E R S T E P – F O R D F - 5 0 On each side of the vehicle measure from the Attach step, sliding the mounting T-nut into rear linkage to end of the board.
-
Page 9: Final System Check
Replace fuse. FINAL SYSTEM CHECK Check that all doors activate the PowerStep and the LED lights work when doors open and close. NORMAL OPERATION: When the doors open, PowerStep automatically deploys from under the vehicle. When the doors are closed, PowerStep will automatically return to the stowed/retracted position. Note that there is a 2-second delay before the PowerStep returns to the stowed/retracted position. - Page 10 Congratulations on your purchase of the genuine AMP Research PowerStep! Here’s what you should know... AMP Research PowerStep running boards automatically move when the doors are opened to assist entering and exiting the vehicle. Automatic power deploy: The running boards will extend down and out when the doors are opened.
