Page 1: User Manual
USER MANUAL DigiFlow 2000 Digital Gas Flow Meter 110 Toledo Street •Farmingdale, NY 11735 • USA www.netechcorp.us... -
Page 2: Table Of Contents
Optional Accessories ............. 10 Introduction & Features ............11 Specifications ................. 12 Instrument Familiarization ............13 CAUTION ................14 FUNCTIONAL OVERVIEW ............ 15 MENU DESCRIPTION ............16 FLOW MEASUREMENT ............17 APPENDIX ..................19 DIGIFLOW 2000 USER MANUAL REV 0... -
Page 3: Company Letter
Dear User, We appreciate your purchase of the DigiFlow 2000 digital gas flow meter. Properly used, DigiFlow 2000 will deliver years of high performance and accuracy. This User manual is designed to assist you in receiving the most from your DigiFlow 2000. To... -
Page 4: Patents / Copyright
Netech Corporation is ISO 9001-2015 Certified. This instrument was thoroughly tested and inspected according to Netech’s ISO 9001-2015 quality standards and test procedures. This DigiFlow 2000 was made to meet those specifications when shipped from factory. Warranty Netech warranties the DigiFlow 2000 against defects in materials and workmanship for one year from the date of original purchase. -
Page 5: Trademarks
In no event shall Netech Corporation be liable for consequential damages Trademarks Netech and DigiFlow 2000 are trademarks of Netech Corporation. -
Page 6: Calibration
. If Calibration data for any other GAS is required, it must be requested at the time of order. Safety Considerations General Before using the DigiFlow 2000 read the instruction manual and familiarize with all functions and controls. Safety Symbols WARNING “WARNING”... -
Page 7: Returns And Credits
Products not returned within 60 days of purchase, or products, which are not in “as new”, and resalable condition, are not eligible for credit return. The Return Procedure (see below) must be followed to assure prompt refund / credit. DIGIFLOW 2000 USER MANUAL REV 0... -
Page 8: Restocking Charges
We also recommend that you insure your shipment for its actual replacement cost. Netech Corporation will not be responsible for lost shipments or instruments that are received in damaged condition due to improper packaging or handling. Use the original carton and packaging material for shipment. -
Page 9: Repair And Calibration
4. Include a copy of the purchase order, or reference your purchase order on your packing slip. Include the completed RMA Form provided. Ship the instrument to the following address: DIGIFLOW 2000 USER MANUAL REV 0... -
Page 10: Models And Part Numbers
The following standard accessories are included with each unit: Part Number Description 780-CASE Die cut - Hard caring Case 660-HHS-002 Lithium Ion Battery Charger 780-Bard-Connector-Kit Connector Kit Optional Accessories Various optional Accessories are available. Contact factory for part numbers DIGIFLOW 2000 USER MANUAL REV 0... -
Page 11: Introduction & Features
INTRODUCTION The DigiFlow 2000 is a simple and easy to operate Gas Flow Meter intended for accurate measurement of volumetric flow, which is independent of temperature and pressure. This bench-top, micro controller-based flow meter is designed for medical and hospital facilities, Field Service or in manufacturing and quality assurance applications. -
Page 12: Specifications
(203 X 114 X 50.8 cm) Weight: 10 oz (.28 kg) ENVIRONMENTAL: Operating range: 60 to 95 F (15 to 35 Storage Temperature: 0 to 122 F (0 to 50 Relative Humidity: 90% (max) at Temperatures DIGIFLOW 2000 USER MANUAL REV 0... -
Page 13: Instrument Familiarization

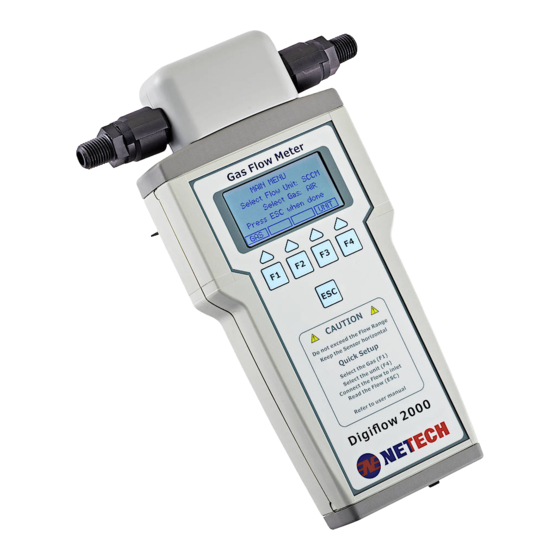

Instrument Familiarization 1. Flow Input 2. Flow Output 3. LCD Graphics Display 4. Interactive Function Keys 5. Battery Charger Input 6. Power ON/OFF Switch DIGIFLOW 2000 USER MANUAL REV 0... -
Page 14: Caution
CAUTION Before attempting to use DigiFlow 2000, please observe the following precautions: 1. When connecting the DigiFlow 2000 to a flow source, please ensure that the input pressure does not exceed 20 PSI. Hammer pressure levels in excess of 20 PSI will cause damage to the flow sensor. -
Page 15: Functional Overview
Low battery condition will result in erroneous readings. OPERATIONS & CONTROL The DigiFlow 2000 is designed to be user friendly with tactile soft keys and an interactive menu. The user can set up the unit by selecting an option from the graphics display as instructed. The Keypad consists of 5 menu key marked F1 through F4 and ESC. -
Page 16: Menu Description
Minute). • SCFM (Standard Cubic Feet per Minute) • LpM (Liter per Minute). GAS: Selection of gas under measurement The available Gas selections are as follows. • Air, O2, N2, Co2, ARG and N2O. DIGIFLOW 2000 USER MANUAL REV 0... -
Page 17: Flow Measurement
3. Push the F4 key to select the desired unit of measurement. The available units are as follows: • SCCM (Standard Cubic Centimeter per Minute). • SCFM (Standard Cubic Feet per Minute) • LpM (Liter per Minute). DIGIFLOW 2000 USER MANUAL REV 0... - Page 18 5. The unit and the GAS selected in step 2 & 3 will be displayed on the screen. In the event you power off Digiflow 2000, the selections chosen will not change on power up. They are saved in the memory until a new selection is chosen.
-
Page 19: Appendix
