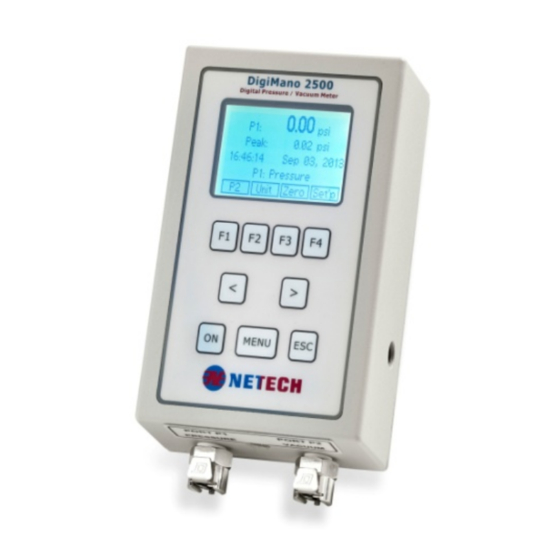

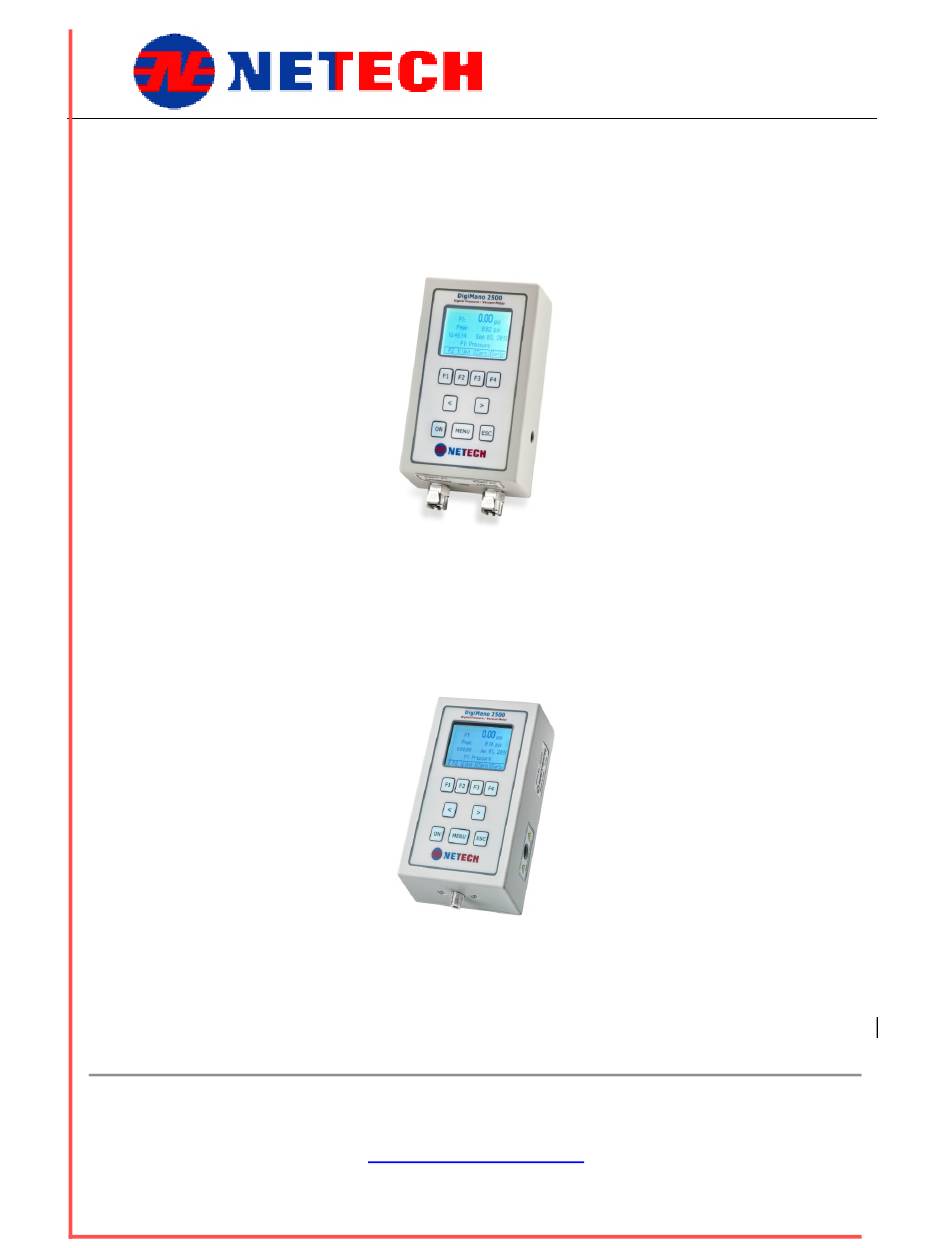

- Page 1 DigiMano 2500 User Manual DigiMano 2500 Series Pressure / Vacuum – Dual Port Model Pressure / Vacuum – Single Port Model Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014...
-
Page 2: Table Of Contents
User Manual DigiMano 2500 Contents Warranty ............................3 Notices (Patents / Copy Right, Trademarks) .................. 4 Quality Assurance ..........................4 Calibration ............................4 Safety Considerations ........................4 Returns & Credits ..........................4 Repair and Recalibration........................6 Models and Part Numbers ......................6 Standard Accessories .......... -
Page 3: Warranty
Corporation. Only serialized products are covered under this warranty. This warranty does not apply if the product has been damaged by accident or misuse or as the result of service or modification by other than Netech Corporation, or if its serial number is defaced or removed. -
Page 4: Notices (Patents / Copy Right, Trademarks)
Notices Patents / Copyright Copyright © 2014 by Netech Corporation. All rights reserved. No part of this publication may be reproduced or transmitted in any form other than for the purchaser’s personal use without written permission from Netech Corporation. - Page 5 Return Procedure All items being returned (including all warranty-claim shipments) must be sent freight- prepaid to our factory location. When you return an instrument to Netech Corporation, we recommend using United Parcel Service, Federal Express, DHL or Air Parcel Post.
-
Page 6: Repair And Recalibration
Products returned for repair or recalibration must obtain a RMA (Return Material Authorization) from our service department after completing a service request form our website or contact: http://www.netechcorporation.com/repair.php Netech Corporation Service Dept. 110 Toledo Street New York, 11735 Email: Service@NetechCorporation.com Models and Part Numbers (Pressure and Vacuum Measurement –Dual Port) -
Page 7: General Overview
Real Time Clock • Data storage and export records capability • Rugged Aluminum Case • Sealed Membrane Switches • Rechargeable Li –Ion polymer Battery • Optional Pressure control dual Relay Output. Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014... -
Page 8: Specifications
User Manual DigiMano 2500 Specifications: Display: Graphics: ........128 x 64 LCD Model Types: ..........Pressure/Vacuum and Gauge Pressure Models Pressure Ranges available: ...... Form 2 PSI to 200 PSI Accuracy: Dual Port Models: ..... 0.1 % full range, +/- 1 count. Accuracy: Single Port Models:.... -
Page 9: Getting Familiar With The Unit
Display and Keypad Display Serial Port Key Pad Charger Input Pressure Vacuum Port-P1 Port –P2 Pressure / Vacuum Model – Dual Port Pressure / Vacuum Port Pressure/Vacuum Model – Single Port Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014... -
Page 10: Menu Descriptions
User Manual DigiMano 2500 Menu Descriptions On power up the display shows the Model of the unit, the pressure range, software version, build number and the date. The display remains on for about 5 seconds and switch to the main menu as shown below. All the screen shots shown are representation only. - Page 11 (<). To select the highlighted function press F1 (“Sel”). To exit the menu press F4 “(Exit”) or press key “ESC”. Screen shots of each of these menu selections are shown below. Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014...
- Page 12 User Manual DigiMano 2500 Setup Menu Screen Records Clock Settings Back Light Pressure Control Settings Sel’ Prev Next Exit Records Menu From the Setup Menu select the “Records” by pressing F1. The screen shot for the Records Menu is as shown below. In this menu Data capture rate, Export saved data to the PC, Erase saved data records and Machine Settings (optional) are available.
-
Page 13: Initial Setup
Do not use any corrosive fluids that might damage the transducer. The unit is supplied with a Li battery charger. Do not use any other Power supply or charger as it will damage the battery Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014... -
Page 14: Getting Started
User Manual DigiMano 2500 Getting Started Pressure Connection DigiMano 2500 (Pressure /Vacuum Dual Port Model) is provided with two ports, Port 1 and Port 2 fitted with quick connect fittings. Port 1 is for positive pressure measurements and Port 2 is for Vacuum measurements. When making Pressure measurements Port 2 must be left open to atmosphere and vice versa when making vacuum measurement. - Page 15 The peak reading can be reset by pressing F1 (Peak). This will be useful if the pressure is changing rapidly or detecting leak in the system. Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014...
-
Page 16: Data Capture
User Manual DigiMano 2500 Data Capture Measurement data can be saved to the internal memory as well as uploaded to the PC through the RS 232 port at selected intervals for record keeping. To set the capture rate follow the procedure. The default capture rate setting is set to ‘Off’. - Page 17 DigiMano 2500 Model 250-100PSI-G Software version = 1 Revision = 8 CAL ZERO_OFFSET_COUNT: 10012 DIGIMANO 2500 (c)Copyright 2010 NETECH CORPORATION S/W Rev 1:8, Build: Mar 13 2014 00:35:30 ----------------------- 1) PSI 2) mbar 3) mmH20 4)mmHg 5) cmH20 6)kPa...
-
Page 18: Exporting Saved Data To The Pc
User Manual DigiMano 2500 Measurement data is also saved into the internal EEPROM memory (1M) at the elected data capture rate (0.5 seconds to 15 minutes). Even though more than 10,000 records can be saved in the memory, it will get full if the data capture rate is set at a fast rate. When the internal memory is full the data gets overwritten. -
Page 19: Erase Saved Data From Memory
Exit < > Select ((“SEL”) “Erase Records” by pressing F1. The following message will be displayed, “warning that the data will be permanently deleted. Press F2 (“Yes”) to erase the data. Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014... -
Page 20: Clock Setting
User Manual DigiMano 2500 Records will be Permanently deleted Do you want to proceed? Clock Setting The following are the procedures for setting the clock time date month and year. From the “Setup” Menu select records by pressing F1 Key. Records Clock Settings Back Light... -
Page 21: Back Light Setting
Key. The back light will be turned off after the set time till the next power up. Always ON 1 Minute 10 Minute 20 Minute Sel’ Exit < > Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014... -
Page 22: Pressure Control Settings
User Manual DigiMano 2500 Pressure Control Settings (Optional Function) This is a very unique function available as an optional upgrade to the standard units. Two pressure controlled relay out puts are available through the optional relay control interface box (PN: 250-OUTPUT-NT). The Pressure settings for the control of each Relays can be individually set. - Page 23 When the pressure reading is equal to the setting the relay output is enabled. For the detailed specification of the relay and external power supply interface please refer to the wiring diagram and instructions provided with the optional relay interface box (PN:250-OUTPUT-INT). Netech Corporation www.PressureMeter.com Manual P/N DigiMano User-manual, Rev 3/19/2014...
-
Page 24: Maintenance And Storage
The mechanical assembly of DigiMano 2500 contains no parts that can be serviced by the user. The unit should be returned to Netech Corporation for repair or calibration. The alignment and adjustment parameters are critical to the robust and efficient performance of the unit and can be performed only at the factory. -
Page 25: Battery Charging And Replacement
DigiMano 2500 Returning the DigiMano for Re-Calibration Products returned to Netech for repair or recalibration requires a RMA (Return Authorization Number) for speedy processing of the service required. To obtain a RMA number follow the link http://www.PressureMeter.com and fill in the required information, Email service@netechcorporation.com... -
Page 26: Appendix
User Manual DigiMano 2500 Appendix This section is intentionally left blank for future use XXVI...
