Instruction Manual
Pocket Tachometer (Laser Non-Contact/Contact)
Model MT-200
Congratulations on the purchase of our MT-200 contact
tachometer. We trust you will enjoy many years of
professional results from your product.
Please read the entire instruction manual thoroughly before
initial set-up and operation; the information contained
herein will aid you in operating your MT-200 safely and
with excellent results.

INSPECTION/STANDARD ACCESSORIES

If upon delivery shipping damage is detected, do not
operate the tachometer. Notify shipping carrier immediately
for damage claim instructions. Refer to nameplate
and record the serial number for future reference.

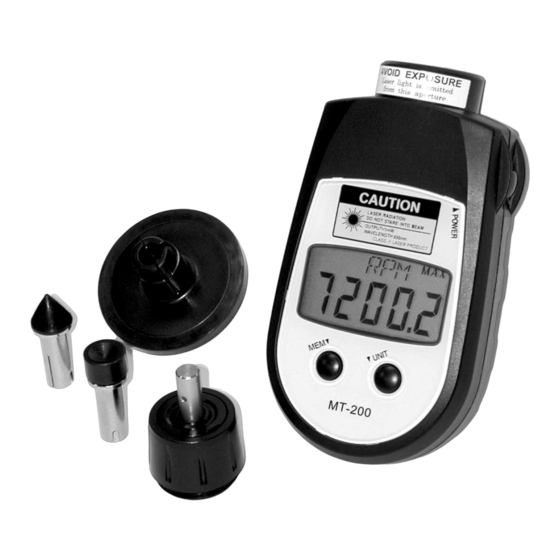

Items included with the MT-200:
• Carrying case
• 3 manganese AA batteries
• Cone adapter & Contact adapter
• Funnel adapter
• 6" circumference wheel
• NIST certificate
• Instruction manual
• Reflective tape (35 pieces)
for

FEATURES AND BENEFITS

The MT-200 tachometer incorporates the latest
microprocessor technology and offers:
• Multiple measurement types: total revolutions (rev);
revolutions per minute (rpm); surface speed: m/min,
y/min, in/min, ft/min; and length: meters, yards, feet
and inches.
• Compact, pocket-size design
• Non-contact rpm measurements up to 60cm away.
• Contact measurements with included contact adapter
• 14 reading memory: minimum, maximum, final, 10
selectable measurements and an average of memory
measurements, up to ten.
• Efficient design; long battery life and continuous operation.
• Automatic conversion of units.

IMPORTANT SAFETY INSTRUCTIONS

Laser radiation may be harmful to the human eye.
Avoid direct exposure of human eyes to laser light.
Eye damage can result.
Never point the unit at another person.
Keep out of the reach of children.
Avoid indirect exposure via reflective materials such
as glass and mirrors.
When power button is depressed, laser is active.
When using the master wheel, do not use an
extension shaft as the wheel may come off of the
shaft and cause damage or injury.
Although the tachometer is able to achieve higher
measurements than what is listed, the master wheel
has a maximum speed limitation of 5000 ft/min (for
safety reasons).

DISPLAY

1. Low battery display
2. Tachometer's display
3. Max/Min display
4. Main display
