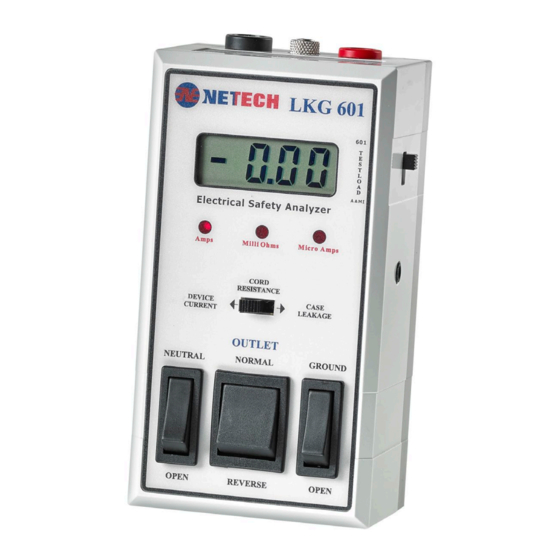

- Page 1 LKG 601 LKG 601 ELECTRICAL SAFETY ANALYZER INSTRUCTION MANUAL Netech Corporation 110 Toledo St, Farmingdale, NY 11735, http://www.NetechCorp.us http://www.PressureMeter.com...
-
Page 2: Table Of Contents
Controls & Indicators ..................11 Preparation for use ..................... 12 Operating Instructions ..................13 Performance check ..................... 14 Theory of Operation .................... 15 Maintenance and Storage Maintenance ....................... 16 Calibration / Service ................... 16 Returning the LKG 601 for Calibration ..............17... -
Page 3: Warranty
Netech Corporation. Only serialized products are covered under this warranty. This warranty does not apply if the product has been damaged by accident or misuse or as the result of service or modification by other than Netech Corporation, or if its serial number is defaced or removed. -
Page 4: Notices (Patents / Copy Right, Trademarks)
Netech Corporation. Trademarks LKG 601 is trademarks of Netech Corporation. Any other trademark names used in this manual are only for editorial purposes and the benefit of the respective trademark owner with no intention of improperly using that trademark. -
Page 5: Returns & Credits
LKG 601 CAUTION The “CAUTION” sign denotes a hazard. It calls attention to a procedure, practice or the like, which, if not correctly performed or adhered to, could result in damage to or destruction of part or the entire instrument. Do not precede beyond a “CAUTION”... -
Page 6: Repair And Recalibration
Return Procedure All items being returned (including all warranty-claim shipments) must be sent freight- prepaid to our factory location. When you return an instrument to Netech Corporation, we recommend using United Parcel Service, Federal Express, DHL or Air Parcel Post. -
Page 7: Models And Part Numbers
LKG 601 Models and Part Numbers Part Number Description 510-110 Electrical Safety Analyzer (110 V) with Hard case 510-220 Electrical Safety Analyzer (220 V) with Hard case Electrical Safety Analyzer 110 V and 220V 510-110-220 Operation with Hard Case Standard Accessories... -
Page 8: General Overview
The LKG 601 measures Electrical Leakage Current, Power Cord Ground Resistance, and Device Current. The LKG 601 is simple to operate. A three- position switch selects the test to be performed. The user may select either the AAMI ESI-1993 or the IEC 601-1 test load to compensate for high frequency components in the measurement. -
Page 9: Specifications
LKG 601 Specifications Display: 3-1/2 Digit LCD Display LEAKAGE CURRENT: 0-1999 Micro Amps. All Current measurements are made through the AAMI/ANSI ES1-1985 or IEC 601-1 test load. The meter readings correspond to the true RMS value of the current. Accuracy: ±... -
Page 10: Instrument Familiarity
User Manual LKG 601 Instrument Familiarity... -
Page 11: Controls & Indicators
Case Leakage are measured using this cable A calibrated output is provided at the test jack for resistance and Test Jacks current functions. This performs a self-check of the LKG 601 Zero This recessed adjustment allows for the zeroing of the display to... -
Page 12: Preparation For Use
Make sure that the power requirements of the Device Under Test are within the power ratings of the LKG 601, 15 amps at 110 volts and 10 amps at 230 volts. Do not leave the Device Under Test continuously turned on and connected to the LKG601. -
Page 13: Operating Instructions
Test into the test outlet. • Using the test lead provided, connect the chassis of the Device Under Test to the Case Ground jack on the LKG 601. • The display will indicate the Power Cord Resistance in milliohms. Case Ground... - Page 14 DUT On. The LCD will display the Device Current in Amps. CAUTION Do not attempt to open the unit. There are no user serviceable parts inside. Further, the warranty will be void if the unit is opened by other than Netech trained personnel.
-
Page 15: Performance Check
LKG 601 Performance Check 1. Connect the LKG 601 to a live 110 VAC (or 220 VAC for the LKG 601-220) outlet. Display will turn on and read 0 ± 1 when the Mode switch is in the Case Leakage position. In the CORD RESISTANCE position the display will show the numeral one (1) in the left position indicating that the cord circuit is open. -
Page 16: Theory Of Operation
User Manual LKG 601 Theory of Operation The LKG 601 circuitry can be divided into main functional blocks as shown in Figure 3. Each performs a key role in the operation of the instrument. RMS TO AAMI or IEC 601... -
Page 17: Maintenance And Storage
Annual calibration is recommended. If the LKG 601 is returned to Netech for recalibration before the first year warranty expires Netech will provide a second year warranty. The warranty is void if the LKG 601 is serviced by anyone other than Netech or if the warranty seal is broken. -
Page 18: Returning The Lkg 601 For Calibration
User Manual LKG 601 Returning the LKG 601 for Re-Calibration Products returned to Netech for repair or recalibration requires a RMA (Return Authorization Number) for speedy processing of the service required. To obtain a RMA number follow the link and fill in the required http://www.NetechCorp.us... - Page 19 LKG 601 Addendum LKG 601 (PN: 510-110-220) shown with the universal adapter for 220 Volt devices. CAUTION LKG 601 dual voltage model (PN: 510-110-220) designed for use in 110 Volt Ac powered equipments or 220 AC powered equipments. For 220 volt devices make sure the device is 220 Volt AC and the wall outlet is 220 Volt.
- Page 20 User Manual LKG 601 Appendix This section is intentionally left blank for future use...
