- Page 1 USER MANUAL MultiPro 2000 PN: 560-110 (110 VAC) PN: 560-220 (220 VAC) Advanced Electrical Safety Analyzer & Multi-Parameter Simulator 110 Toledo Street, Farmingdale, NY 11735 www.NetechCorp.us...
- Page 2 We welcome any comments you may have that could help us improve the MultiPro 2000 and this manual. Netech is recognized as an innovator and manufacturer of advanced affordable instruments.
- Page 3 Trade Marks Netech and MultiPro 2000 are the trade mark of Netech Corporation. Any trade mark reference used in the manual are only for editorial purpose and the benefit of the respective trademark owner, with no intention of improperly using that trade mark.
- Page 4 • Use proper safety precautions Intended Use The MultiPro 2000 is intended to be used by a trained Biomedical Technician who performs preventive maintenance and repair of medical equipments. It is intended to be used in an environment outside of the patient care area and not to be used to test units while connected to patients.
-
Page 5: Table Of Contents
Saving test results in the internal memory....27 Software setup ................ 28 ProComPrint Version 1.0 Features ......29 Uploading Test Results............32 Specifications ................33 Maintenance:................35 Product Return Instruction ........... 35 Netech Products and Services ..........37 Replacement Parts and Accessories ........38 WARRANTY .................. 39... -
Page 6: General Description

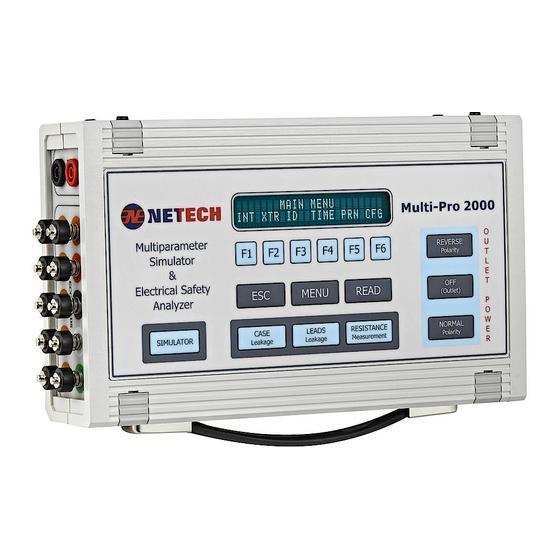

MultiPro 2000 User Manual General Description Introduction The Multi-Pro 2000 (PN: 560) is a full featured, compact portable analyzer designed for the testing of the electrical safety of medical devices. The analyzer tests to US standards (ANSI/AAMI ES1, NFPA 99) or international standards IEC60601-1 by user selectable patient loads. - Page 7 MultiPro 2000 User Manual • Save and print test results. The following waveform simulation functions are available. • ECG – Normal Sinus Rhythm (NSR). • Performance – SIN, SQUARE, TRIANGLE, PULSE. • User selectable Amplitude and rate. The waveform output is through the 10 color coded ECG snap posts marked RL, LL, RA, LA, V1, V2, V3, V4, V5, and V6.
-
Page 8: Preparation For Use
MultiPro 2000 User Manual Preparation for Use The Analyzer is shipped with power cord, 2 Test leads, Kelvin Cable, Serial to USB interface cable and user manual and Print Software CD in a hard carrying case. Also included is our calibration certificate along with Calibration Data sheet. - Page 9 MultiPro 2000 User Manual • “MENU”:- Pressing “MENU” key will bring back to the “MAIN MENU” • “READ”: “READ” key is associated with the measurement functions as well as to save the displayed test data in to the storage memory.
-
Page 10: Menu Functions And Operation
Menu Functions and Operation The operation of the MultiPro 2000 is Menu driven. It is simple and easy to use following the interactive Menus with soft keys (F1,F2, F3, F4, F5, F6) and dedicated key functions such as “Simulator”... - Page 11 MultiPro 2000 User Manual • “EXT” - External Measurement. This option is useful for measuring the leakage current of Hard Wired Units, Non AC Powered (Battery Operated) or any devices. • “ID”- For entering a unique (4 Digit) reference ID of the instrument under test.
- Page 12 MultiPro 2000 User Manual • “OFF” – Enables the Power the outlet to turn off. • “REVERSE POLARITY” – Set the outlet to reverse.
-
Page 13: Getting Started
MultiPro 2000 User Manual Getting Started Connect the Analyzer to a grounded three prong outlet. The Analyzer is intended for use with single phase ground power. It is not intended for dual phase power configurations. Turn the Analyzer on using the rocker switch on the side panel. - Page 14 MultiPro 2000 User Manual Key. The display will change to the “INTERNAL MEASUREMENT “Menu Press F1 Key (“VOL”) and the line voltage will be displayed. Press “ESC” to go back to the previous Menu (“INTERNAL MEASUREMENT “Menu). (“CUR”):- Device Current Measurement.
- Page 15 DUT (Device under Test) “ID”:- Device Identification Input Function. MultiPro 2000 is capable of storing over 5000 test results in the Non- volatile memory and can be uploaded to a PC, to save or print the records.
- Page 16 MultiPro 2000 User Manual To change the ID, press F6 (yes). Press F1, F2, F3 F4 keys to enter a unique ID for the unit under test. • If an ID is already entered for the unit under test press F4 (N0).
-
Page 17: Measurements
MultiPro 2000 User Manual Measurements Earth Leakage: Earth leakage is compliant to IEC 60601 and ANS/AAMI ES1 standard. The default compliant standard is set to AAMI ES1. The Compliant standard can be changed by pressing F1 to toggle between (AAMI “ES1” or “IEC”... - Page 18 MultiPro 2000 User Manual Screen Shot 3 To save the result press F1 (“SAVE”). This will save the test data in the memory under Device ID. To measure leakage for open neutral conditions first select first select “NORMAL POLARITY” followed by F6 to open the neutral.
-
Page 19: Case Leakage: Using External Leads
MultiPro 2000 User Manual Case Leakage: Using External Leads Case /Enclosure leakage measurement is similar to Earth Leakage measurement except the leakage current is measured through the external test Lead. To measure the case leakage/Enclosure leakage, attach the external Kelvin cable to the case (conductive surface) of the (DUT) device under test. -
Page 20: External Leakage: Point To Point Measurement
MultiPro 2000 User Manual The following block diagram shows the electrical connections between The Safety Analyzer and the device under test. External Leakage: Point to Point Measurement It is also referred to as point to point Leakage. This function can be used to measure Leakage current flowing from any conductive surface of the DUT and Earth ground. -
Page 21: Leads Leakage
MultiPro 2000 User Manual Press F1 (“SAVE”) to save the results. Screen Shot 4 Leads Leakage: This function is only applicable to devices such as ECG (EKG) monitors or DUTs with direct patient connections. The following two modes of measurement function available as shown in Screen Shot 5. - Page 22 MultiPro 2000 User Manual Leads to Ground leakage: Press F1 “GND” and select the desired leads from the next menu. Press “READ” and the leakage current will be displayed. Press F1 (“SAVE”)to save the results. Press “ESC” to go back to the previous menu.
- Page 23 MultiPro 2000 User Manual Patient Safety Precaution: SINCE THE TEST METHOD INJECTS POTENTIALLY HAZARDOUS CURRENT LEVELS INTO THE ELECTROCARDIOGRAPH AND THE RELATED POWER SYSTEM, DO NOT CONDUCT TESTS IN AN OCCUPIED PATIENT LOCATION OR WHILE THE PATIENT IS CONNECTED TO A RELATED POWER SYSTEM BRANCH CIRCUIT.
-
Page 24: Power Cord Ground Resistance
MultiPro 2000 User Manual Power Cord Ground Resistance To measure line cord ground resistance for the device under test, depress the switch labeled “RESISTANCE Measurement”. The display will read “POWER CORD RESISTANCE/Connect Klvn Cable”. Once Kelvin cable is attached to a suitable ground on the device under test, press the “READ”... -
Page 25: Simulator Function
MultiPro 2000 User Manual Simulator Function: The Simulator function menu is activated by the “Simulator” key. The following is the screen shot of the Simulator Menu (Screen Shot 6). The following simulator selections are the available. • NSR – Normal Sinus Rhythm. - Page 26 MultiPro 2000 User Manual The default values of the rate and amplitude of the waveform is displayed as shown in Screen Shot 7. The amplitude and rate selection can be done from this Menu. Amplitude selection can be achieved by using F1 to F6 keys, “<”...
-
Page 27: Save And Print Test Results
MultiPro 2000 User Manual Save and Print Test Results Test results can be stored into the memory under the user specific “ID” and available to be uploaded to a PC using the serial to USB cable. Set the device ID (Main Menu), if not set already. Once the measurement is done press save by pressing F1. -
Page 28: Software Setup
When the installation is complete a window appears as shown below. The ProComPrint Version 1.0 is a basic version of the advanced ProComPrint. Uploading the test results and printing and saving data from MultiPro 2000 to a PC is easier than ever. -
Page 29: Procomprint Version 1.0 Features
The ProComPrint Ver. 1.0 included with the unit is a basic version of the optional, customizable, database version. This will earnable the user to quickly connect the MultiPro 2000 to the PC and download, the test results and print. Following are some of the basic features of the software. - Page 30 MultiPro 2000 User Manual screen shot shown below. The following are the descriptions of the highlighted functions. • “Result”: – This will down load all the saved test results from the MultiPro memory into the top screen. • “Select Equipment ID”:-If multiple units are...
- Page 31 MultiPro 2000 User Manual • “Data Sheet”:- A sample “Word” template (as shown below) is included in the “ProComPrint Ver 1.0. Note: Sample Data Sheet can be opened and printed only if a licensed copy of the word is installed in the PC.
-
Page 32: Uploading Test Results
MultiPro 2000 User Manual Uploading Test Results The test results can be uploaded to the PC from the MultiPro. To upload all the test results, select “PRN” (F5) from the “MAIN MENU”. The “Print MENU” will be as shown below (Screen Shot 9). -
Page 33: Specifications
MultiPro 2000 User Manual Specifications Specifications are subject to change without notice Leakage Current: All Current measurement loads are user selectable to AAM ES1 or IEC60601-1 Load. The meter readings correspond to the RMS value of the current measured. Measurement Mode: True RMS Test Load: AAMI ES1 or IEC 60601 Range: Auto range: 0 to 99.9, 100 to 2000 uA. - Page 34 MultiPro 2000 User Manual Physical Dimensions: Size: 10.25” X 6.25” X 2.5” Weight: 4 lbs. Temperature: Operating range: 15°C - 35°C (59°F -95°F) Storage Temperature: 0°C - 50°C (32°F -122°F) Power: 110 Volt Units (PN: 560-110): 90 V AC to 130 V, 50 Hz to 60 Hz, 20 A maximum.
-
Page 35: Maintenance
Second year Warranty is void if the unit is not returned to the factory for the annual recalibration. Netech recalibration charges are very low compared to the industry standard. Any firmware or software update will be done during annual recalibration at no additional cost. - Page 36 The delivering carrier’s paper should be signed noting the apparent damage. If the instrument is damaged beyond use, a new order should be placed with NETECH while awaiting reimbursement from the carrier for the damage instruments Malfunction: Please follow these steps for repair or re-calibration of your NETECH instrument: 1.
-
Page 37: Netech Products And Services
New York, USA. Netech support its products longer than any other manufacturer in this field. All Netech Products are manufactured in the USA. We are proud to serve the global biomedical community with innovative high quality products at a below market price. -
Page 38: Replacement Parts And Accessories
MultiPro 2000 User Manual Replacement Parts and Accessories Part Number Description 560-110 MultiPro 2000 Safety Analyzer-110 V 560-220 MultiPro 2000 Safety Analyzer-220 V 560-503 Test Lead set of two 560-HRD-CASE Hard Carrying case 560-553 Kelvin Test Cable 560-552 AC Power cord... -
Page 39: Warranty
Netech warrants this instrument against defects in materials and workmanship. If the it fails to conform to these warranties, Netech will repair or replace the unit and/or it’s components within a reasonable period of time if the MULTI-PRO 2000 is returned, shipping prepaid, to Netech’s...
