Netech MT-100 Instruction Manual

Instruction Manual

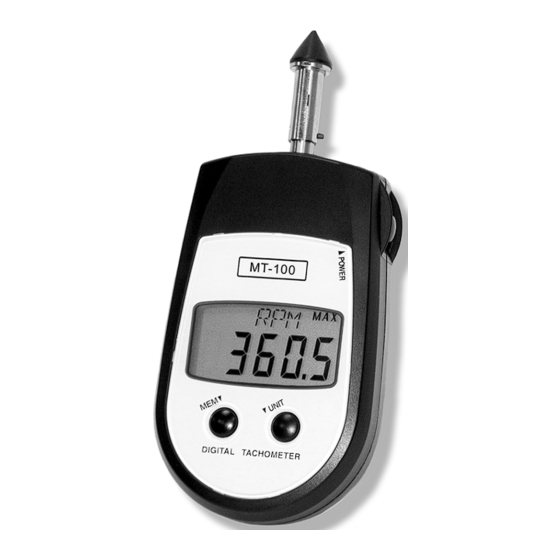

Pocket Tachometer (Contact)
Model MT-100
Congratulations on the purchase of our MT-100 contact
tachometer. We trust you will enjoy many years of
professional results from your product.
Please read the entire instruction manual thoroughly before
initial set-up and operation; the information contained
herein will aid you in operating your tachometer safely
and with excellent results.
INSPECTION/STANDARD ACCESSORIES
If upon delivery shipping damage is detected, do not
operate the tachometer. Notify shipping carrier immediately
for damage claim instructions. Refer to nameplate
and record the serial number for future reference.
Items included with the MT-100:
• Carrying case
• 3 manganese AA batteries
• Cone adapter
• Funnel adapter
• 6" circumference wheel
• NIST certificate
• Instruction manual
FEATURES AND BENEFITS
The MT-100 tachometer incorporates the latest
microprocessor technology and offers:
• Multiple measurement types: total revolutions (rev); revolu-
tions per minute (rpm); surface speed: m/min, y/min, in/min,
ft/min; and length: meters, yards, feet and inches.
• Compact, pocket-size design
• 14 reading memory: minimum, maximum, final, 10 select-
able measurements and an average of memory measure-
ments, up to ten.
• Efficient design; long battery life and continuous opera-
tion.
• Automatic converion of units.

IMPORTANT SAFETY INSTRUCTIONS

When using the master wheel, do not use an
extension shaft as the wheel may come off of the
shaft and cause damage or injury.
Although the tachometer is able to achieve higher
measurements than what is listed, the master wheel
has a maximum speed limitation of 5000 ft/min (for
safety reasons).
DISPLAY
1. Low battery display
2. Tachometer's display
3. Max/Min display
4. Main display
