- Page 1 UniMano 1000 Pressure Vacuum Series 800-Series July 2009 UniMano 1000 Series...
- Page 2 Phone: 631-531-0100 Fax: 631-531-0101 www.netech.org Copyright Copyright © 2003 by Netech Corporation. All rights reserved. No part of this publication may be reproduced or transmitted in any form other than for the purchaser’s personal use without written permission from Netech Corporation.
- Page 3 Netech Corporation. This warranty does not apply if the product has been damaged by accident or misuse, or as the result of service or modification by other than Netech Corporation, or if its serial number is defaced or removed.
-
Page 4: Table Of Contents
Table of Contents General Overview Introduction----------------------------------------------------- 05 Specifications--------------------------------------------------- 05 Accessories------------------------------------------------------ 07 Optional Accessories------------------------------------------- 07 General Operation Controls and Indicators --------------------------------------- 08 Precautions ---------------------------------------------------- 09 Normal Operation --------------------------------------------- 10 Peak Operation ------------------------------------------------ 11 Set Operation -------------------------------------------------- 12 Leak Detection ----------------------------------------- 12 Alarm Mode -------------------------------------------- 12 Simple Troubleshooting Guide ------------------------------ 13 Typical Application Set Up ---------------------------------- 13... -
Page 5: General Overview
GENERAL OVERVIEW SECTION 1 1.1 INTRODUCTION GENERAL DESCRIPTION The UniMano 1000 is an advanced microcontroller based, compact, high performance pressure and vacuum meter designed for very precise measurement and calibration of pressure and vacuum in medical, laboratory and industrial applications. The UniMano 1000 combines such features as fluid compatibility, temperature compensation, linearity correction, leak detection, peak hold, over pressure alarm and user selectable units of measurement. - Page 6 Range and Resolution for UniMano 1000 Standard Models: 800-2000 Unit Pressure Vacuum Resolution MmHG 1500 276.9 MBar 2000 689.7 2100 68.97 0.07 InHg 20.36 0.02 0.01 kg/cm 0.703 0.0007 800-4000 Unit Pressure Vacuum Resolution MmHG 3000 1600 MBar 4100 4200 InHg 20.4 0.02...
-
Page 7: Accessories
1.3 ACCESSORIES Description Part Number User Manual 800-Manual OPTIONAL ACCESSORIES Description Part Number 110 VAC Adapter 220 VAC Adapter 302-220 Syringe Pressure Applicator Tubing And Connector Set Soft Carrying Case UniMano 1000 Series... -
Page 8: Controls And Indicators

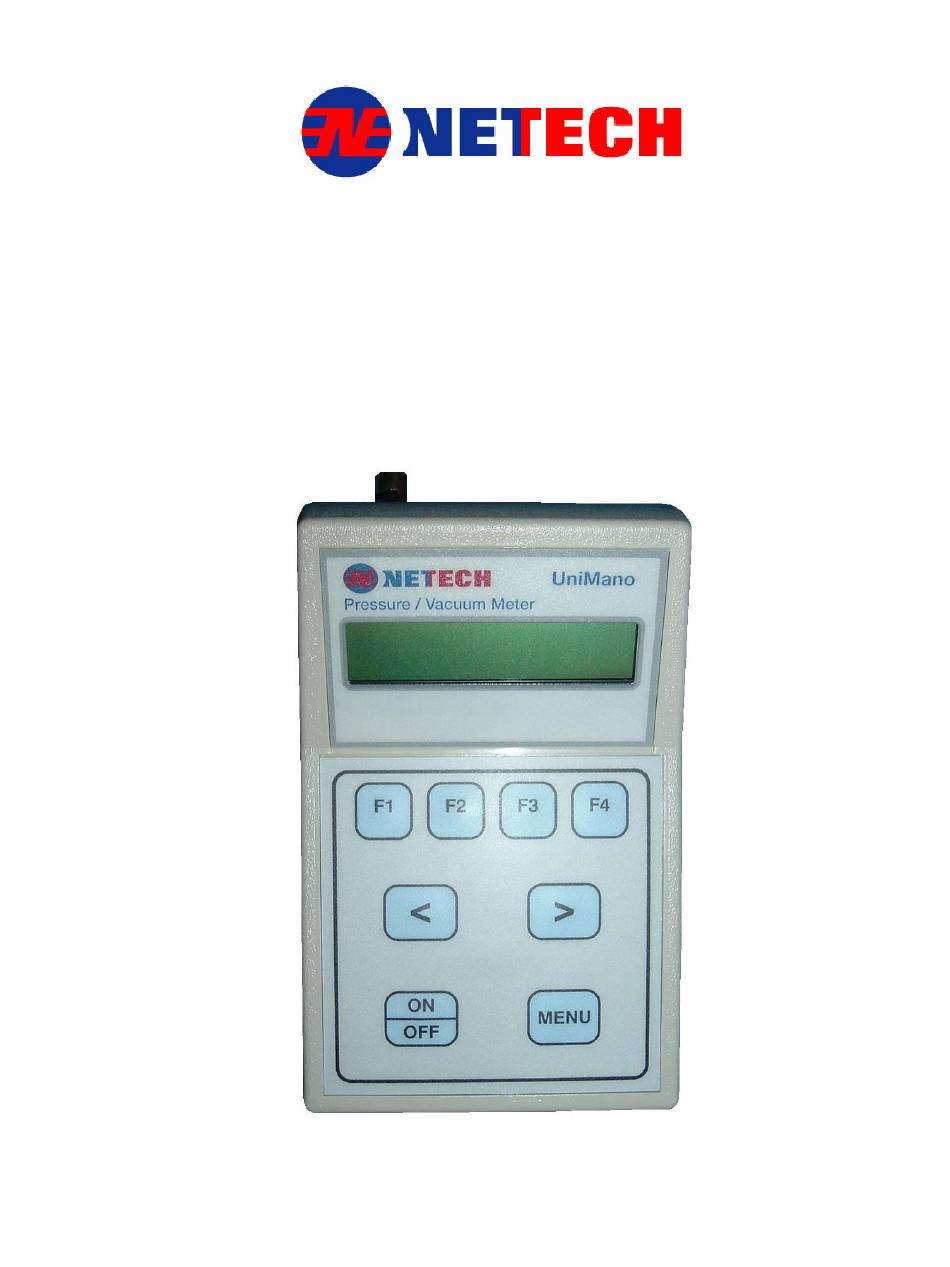

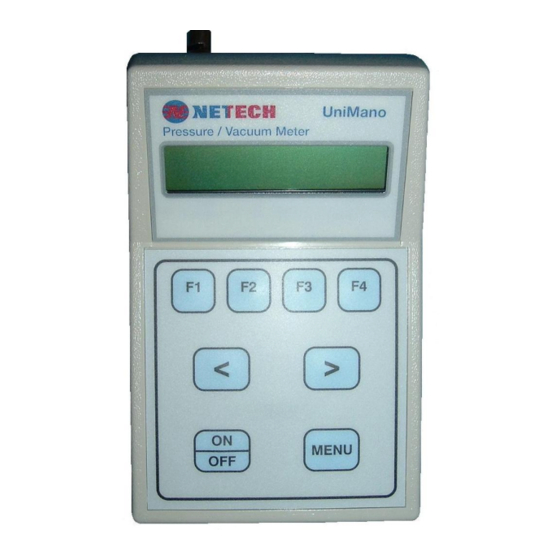

OPERATION SECTION 2 CONTROLS AND INDICATORS Display Screen ON/OFF Key Pad Function Selection Keys Scroll Functions Keys Luer Lock Fitting (Female) Function Menu Key AC Adapter Input Zero Adjust (R11) Fine Gain Adjustment UniMano Pressure Meter Figure 1 UniMano 1000 Series... -
Page 9: Precautions
Side Views Figure 2 PRECAUTIONS Because the UniMano 1000 is both a Pressure and a Vacuum Meter it will read below zero identifiable by the negative sign in front of reading. Do not exceed the rated maximum pressure of the instrument, although a transient pressure of two times the rating will generally be tolerated. -
Page 10: Normal Operation
NORMAL OPERATION Press the ON/OFF to activate the UniMano 1000. On startup the microcontroller will initiate a self check, beep and briefly display the Model and Version of software. UniMano UM5000 100PSI Ver 2.0 The display will then revert to: 00.00 PSI peak Allow two minutes for the transducer to warm up and stabilize. -
Page 11: Peak Operation
Use the [<] or [>] keys to bring your choice to the display and then press the appropriate [F] Key to select your choice. For example pressing [F1] for kilopascal. Once your unit of measurement is selected you can press [MENU] 000.1 KPA peak Your display should revert back to your basic functions... -
Page 12: Set Operation
SET OPERATION Press set from main menu 000.0 KPA peak The following display will appear: Setup Menu Leak Alrm 2.5.1 LEAK DETECTION The UniMano 1000 is capable of calculating the change in pressure over a selected period of time. Press [F1] Leak to select Leak Detection and the following menu appears: Leak in Seconds Use the [F] keys to determine the time span for the period of time you wish to measurement to occur. -
Page 13: Alarm Mode
2.5.2 Alarm Mode The UniMano has an audio beeper that always activate during a overpressure situation, for low battery situation and after Leak Detection. If you press [F2] in the Setup Menu and select ‘ON’ [F1] the UniMano will also beep when zeroing the unit and if Peak Function is selected. -
Page 14: Test And Calibration
Netech for either calibration or repair. Extended Warranty Option: If the instrument is returned to Netech Technical Service for its recommended annual calibration, the standard one year warranty is extended for a second year. Before attempting calibration please be aware that the warranty on the UniMano 1000 Series Pressure Vacuum Meter will become void if the Quality Seal is broken without proper factory authorization. - Page 15 Appendix A UniMano 1000 Series...
