1 Introduction

1.1 Product Overview

Industry standard RGB video formats up to 165 MHz are supported over multi-mode or single-mode
fiber. Resolutions which fit into the 165 MHZ bandwidth will be flawlessly transported from end to end.

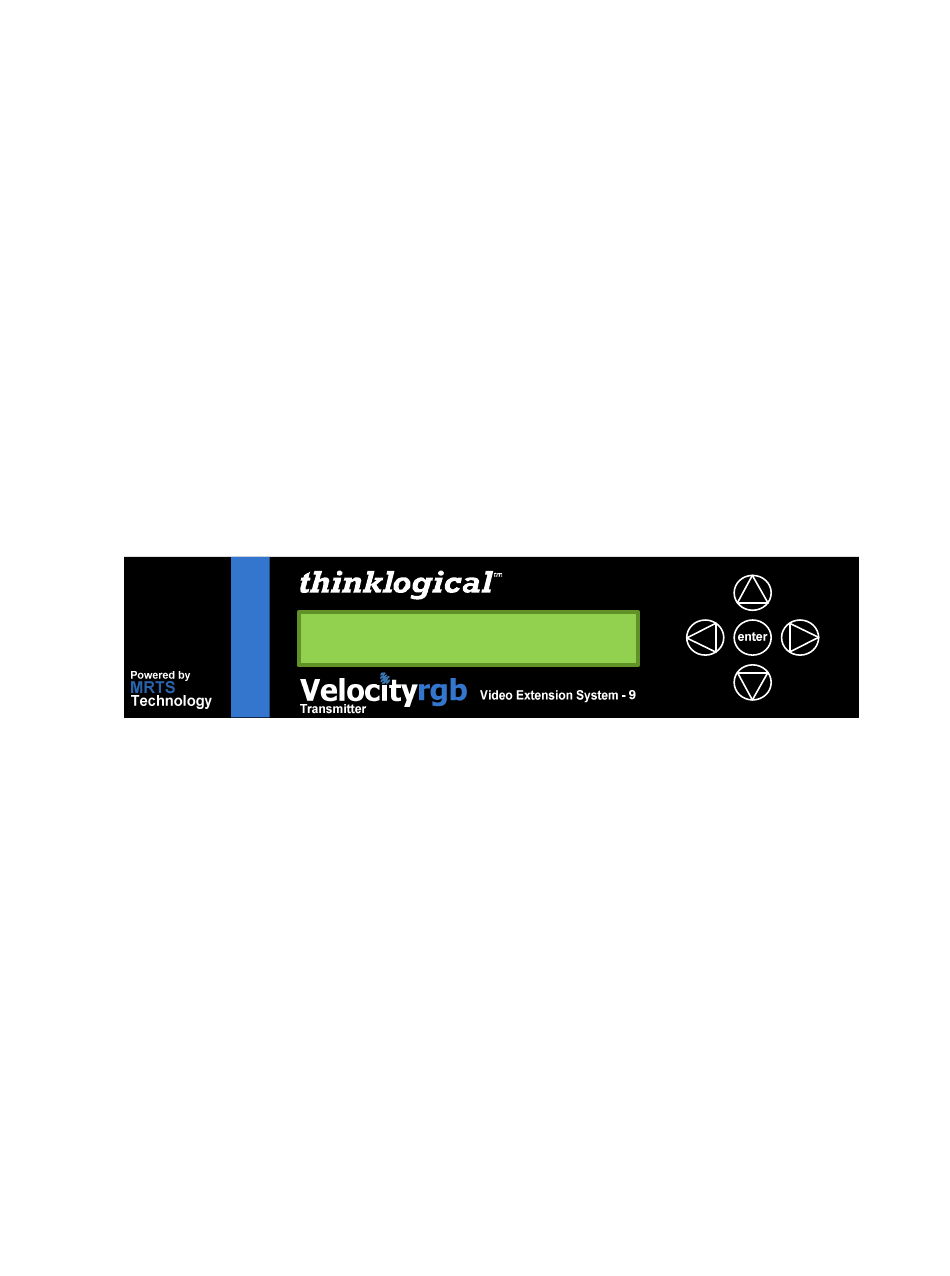

The Velocity RGB-9 harnesses advanced fiber optic technology which means that image quality is not
compromised with problems such as frame dropping or content loss. The VelocityRGB-12 product
allows for component video.
Each system consists of a transmitter and a receiver connected by multi-mode or single mode fiber optic
cable. The transmitter unit connects to an analog video source with a suitable cable and the receiver unit
provides connections to the display device. A +5V DC power supply is required on both the transmitter
and receiver.
The Velocity RGB-9 and Velocity RGB-12 require two fibers. The Velocity RGB-9 transmitter supports
RGB video formats up to 165MHz. In addition, the Velocity RGB-9 has a local RGB video display port on
the transmitter and is compatible with all Thinklogical Velocity fiber video receivers, whether RGB or DVI.
The receiver converts the video signal back from optical to RGB formats. The Velocity RGB-9 receiver
with dual RGB outputs is offered for distributing the video source to two displays, eliminating the need for
an external distribution amp.

1.2 Contents

When you receive your Thinklogical™ VelocityRGB Video Extender, you should find the following
items:
RGB Video Extender Transmitter
•
RGB Video Extender Receiver
•
HD15M to HD15M cable, 2M (CBL000020-002MR)
•
Universal AC Power adapters (PWR-000022-R)
•
CD Product Manual
•

1.3 Laser Information

The VelocityRGB Video Extender is designed and identified as Class 1 LASER products
