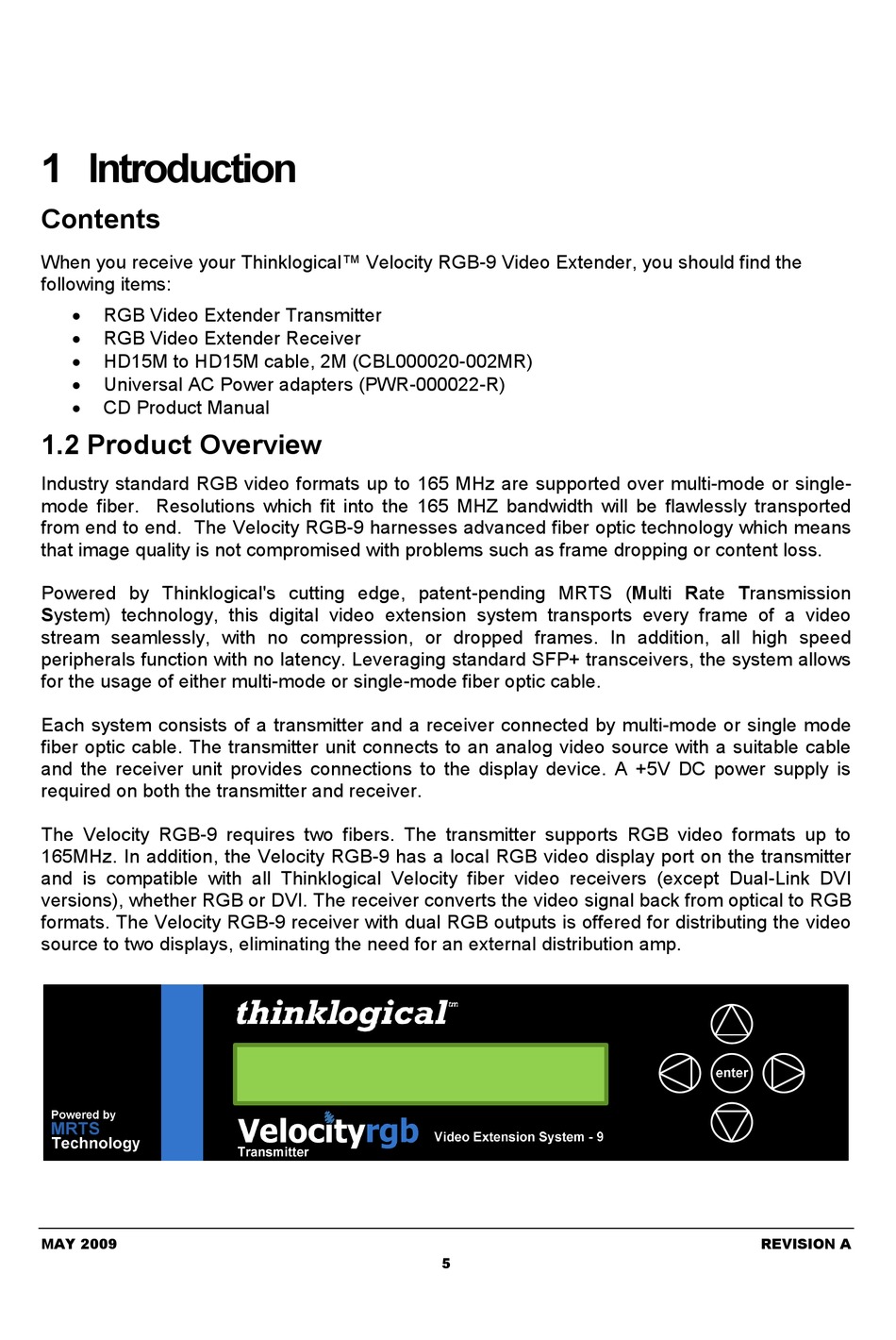

1 Introduction

Contents

When you receive your Thinklogical™ Velocity RGB-9 Video Extender, you should find the
following items:

RGB Video Extender Transmitter

RGB Video Extender Receiver

HD15M to HD15M cable, 2M (CBL000020-002MR)

Universal AC Power adapters (PWR-000022-R)

CD Product Manual

1.2 Product Overview

Industry standard RGB video formats up to 165 MHz are supported over multi-mode or single-
mode fiber. Resolutions which fit into the 165 MHZ bandwidth will be flawlessly transported
from end to end. The Velocity RGB-9 harnesses advanced fiber optic technology which means
that image quality is not compromised with problems such as frame dropping or content loss.
Powered by Thinklogical's cutting edge, patent-pending MRTS (Multi Rate Transmission
System) technology, this digital video extension system transports every frame of a video
stream seamlessly, with no compression, or dropped frames. In addition, all high speed
peripherals function with no latency. Leveraging standard SFP+ transceivers, the system allows
for the usage of either multi-mode or single-mode fiber optic cable.
Each system consists of a transmitter and a receiver connected by multi-mode or single mode
fiber optic cable. The transmitter unit connects to an analog video source with a suitable cable
and the receiver unit provides connections to the display device. A +5V DC power supply is
required on both the transmitter and receiver.
The Velocity RGB-9 requires two fibers. The transmitter supports RGB video formats up to
165MHz. In addition, the Velocity RGB-9 has a local RGB video display port on the transmitter
and is compatible with all Thinklogical Velocity fiber video receivers (except Dual-Link DVI
versions), whether RGB or DVI. The receiver converts the video signal back from optical to RGB
formats. The Velocity RGB-9 receiver with dual RGB outputs is offered for distributing the video
source to two displays, eliminating the need for an external distribution amp.
