Hardware description of EVAL-M3-IM564

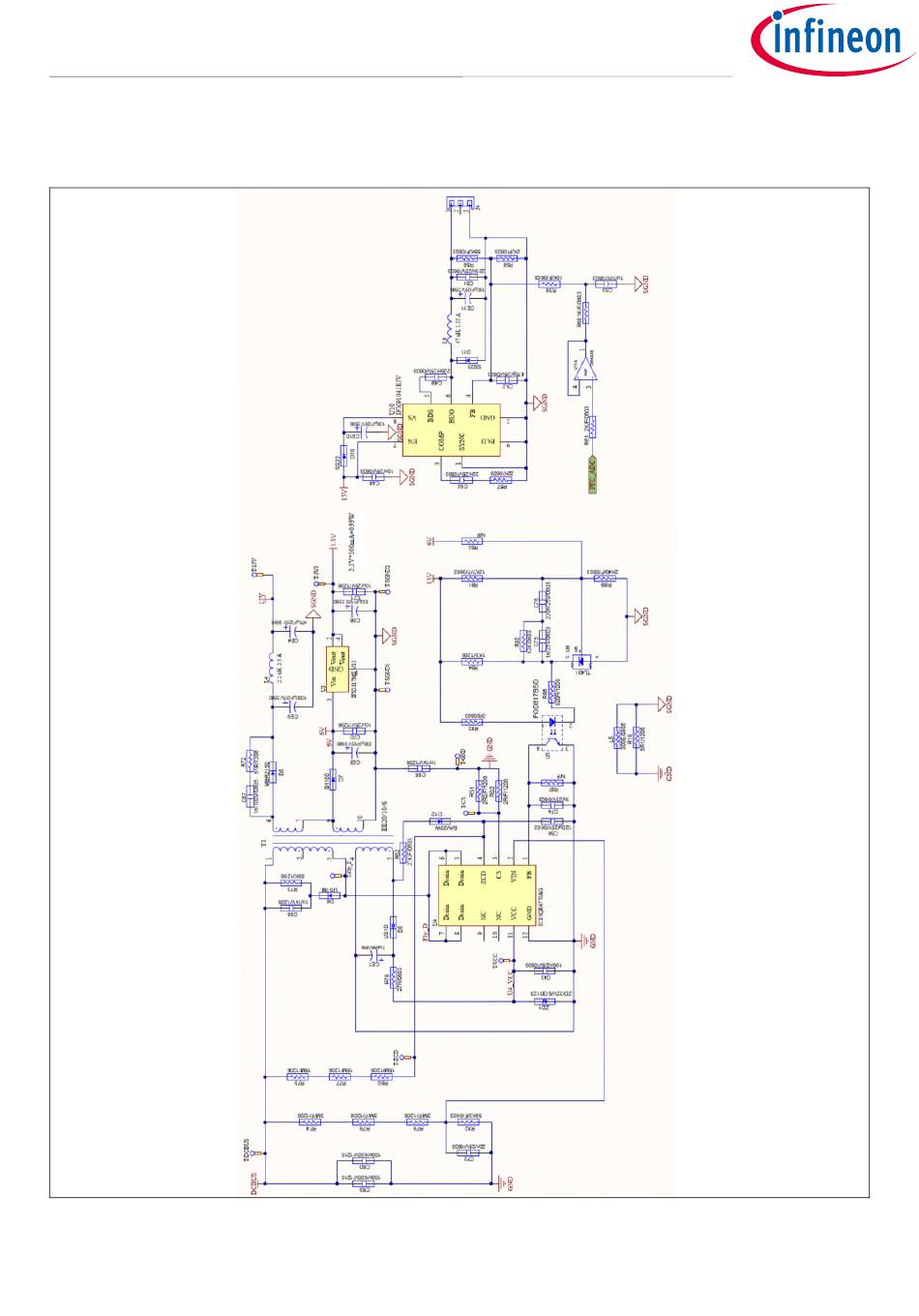

The Auxiliary Power Supply setion schematic for EVAL-M3- IM564 is provided in Figure 35.
Figure 35
Auxiliary Power Supply Section Schematics for EVAL-M3- IM564
User Manual
33 of 45
Revision 1.0
2019-09-17
