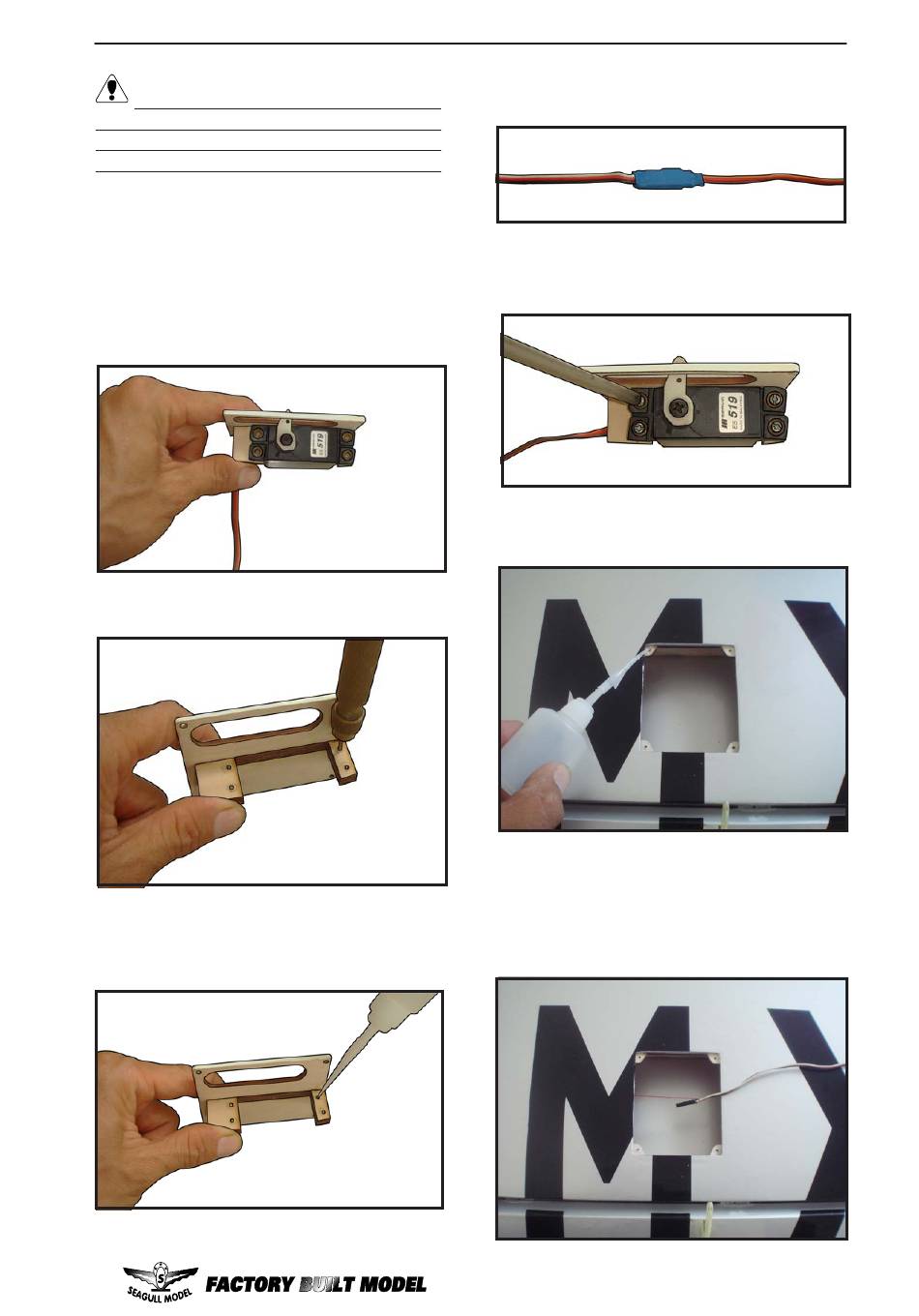

Seagull Models GISPY MOTH Assembly Manual page 15

Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
1) Using a small weight (
) and string, feed the string through
works well
the wing as indicated.
2) Place the servo between the mounting
blocks and space it from the hatch. Use a pencil
to mark the mounting hole locations on the
blocks.
3) Use drill bit in a pin vise to drill the mouting
holes in the blocks.
4) Apply 2-3 drops of thin C/A to each of the
mounting holes. Allow the C/A to cure without
using accelerator.
www.seagullmodels.com
Weighted fuel pick-up
5) Use dental floss to secure the connection
so they cannot become unplugged.
6) Secure the servo to the aileron hatch using
Phillips screwdriver and the screws provided
with the servo.
7) Apply 1-2 drops of thin C/A to each of the
mounting tabs. Allow the C/A to cure without
using accelerator.
8) Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out. When
you have pulled the servo lead out, remove the
masking tape and the servo lead from the
thread.
15
