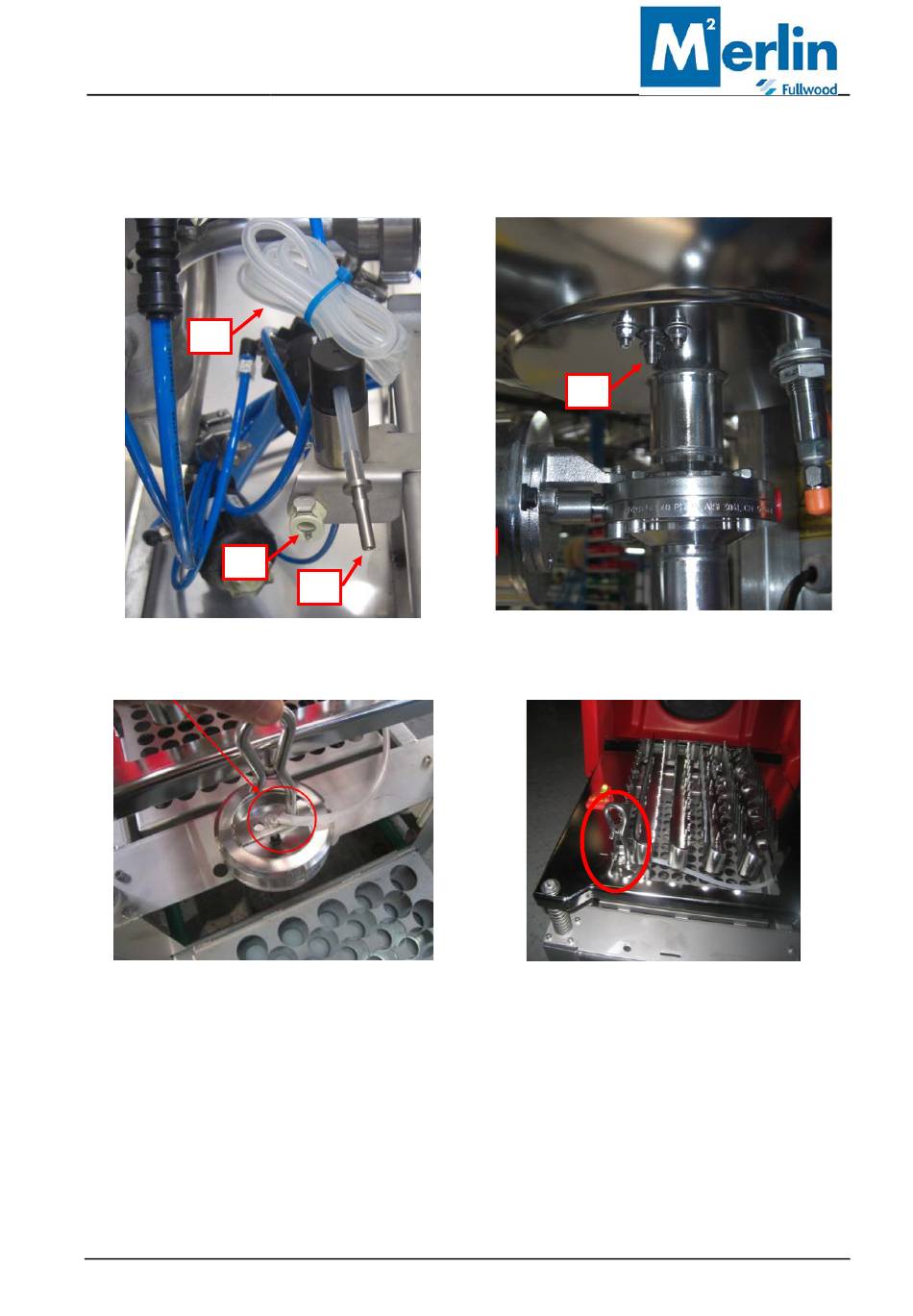

16.2 Connecting the Multi Sampler

•
Pause M²erlin ready for connection
D
A
Connect the red flexible airline from the
Sampler to the quick connect port 'A' on
M²erlin
Connect the other end of the sampler 'D' tube
to the spoon on the sampler
294130
Operating Instructions for Safe Use
Fullwood M²erlin
C
B
Remove the plug 'B' from the underside of the
milk receiver and replace with connector 'C'
Place the spoon into position 1 of the toothed
section. Ensure that the silicone tube is routed
so that it cannot catch on an obstruction.
