10.4 Using the HMI

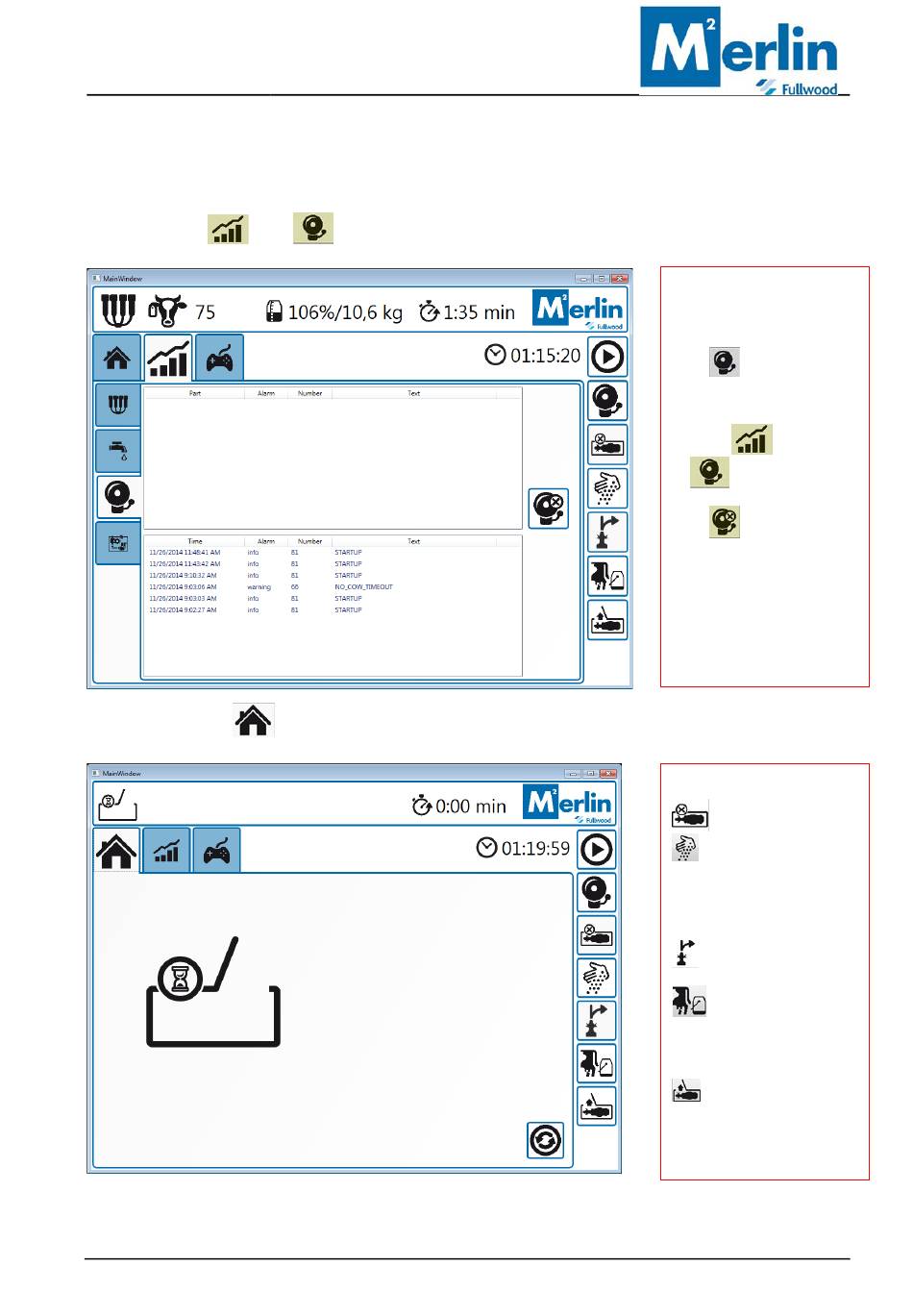

When turning on the machine for the first time the program will boot up and the HMI will display
the home screen.
Alarm Screen then
Waiting for Cow
294130
Operating Instructions for Safe Use
Fullwood M²erlin
If the alarm icon is red there
are alarms requiring attention.
An orange alarm icon indicates
a warning which does not
require immediate attention.
Press icon to display the
alarm screen;
OR
Press the icon followed
by to display the alarms.
Press to clear the alarms.
Icons in the right bar do the
following:
Keep cow in box
Supplies feed (feed
manger drops into position on
pressing button once and feed
dispenses on second press.
Motor runs as long as button is
pressed.)
Separate cow (default
destination)
Separate milk; shows
dialog, with drain, bucket and
cancel options
(do not change destination)
Stop and release (stops
milking and releases cow)
