11.1 Changing the Liners

The teat cup liner is the only component within the robot that comes into contact with the
cow's udder; therefore they, along with the shells should be checked for cracks and
other damage daily and replaced when recommended in order to achieve maximum
performance and minimise udder damage.
Fullwood recommend that liners are replaced every 2500 cow milkings or every six
months (whichever comes first). Liners should always be replaced in sets of four.
Select the correct liner to go with the shell, vacuum chamber and liner gauge.
Put the robot into PAUSE, and turn off the compressed air supply

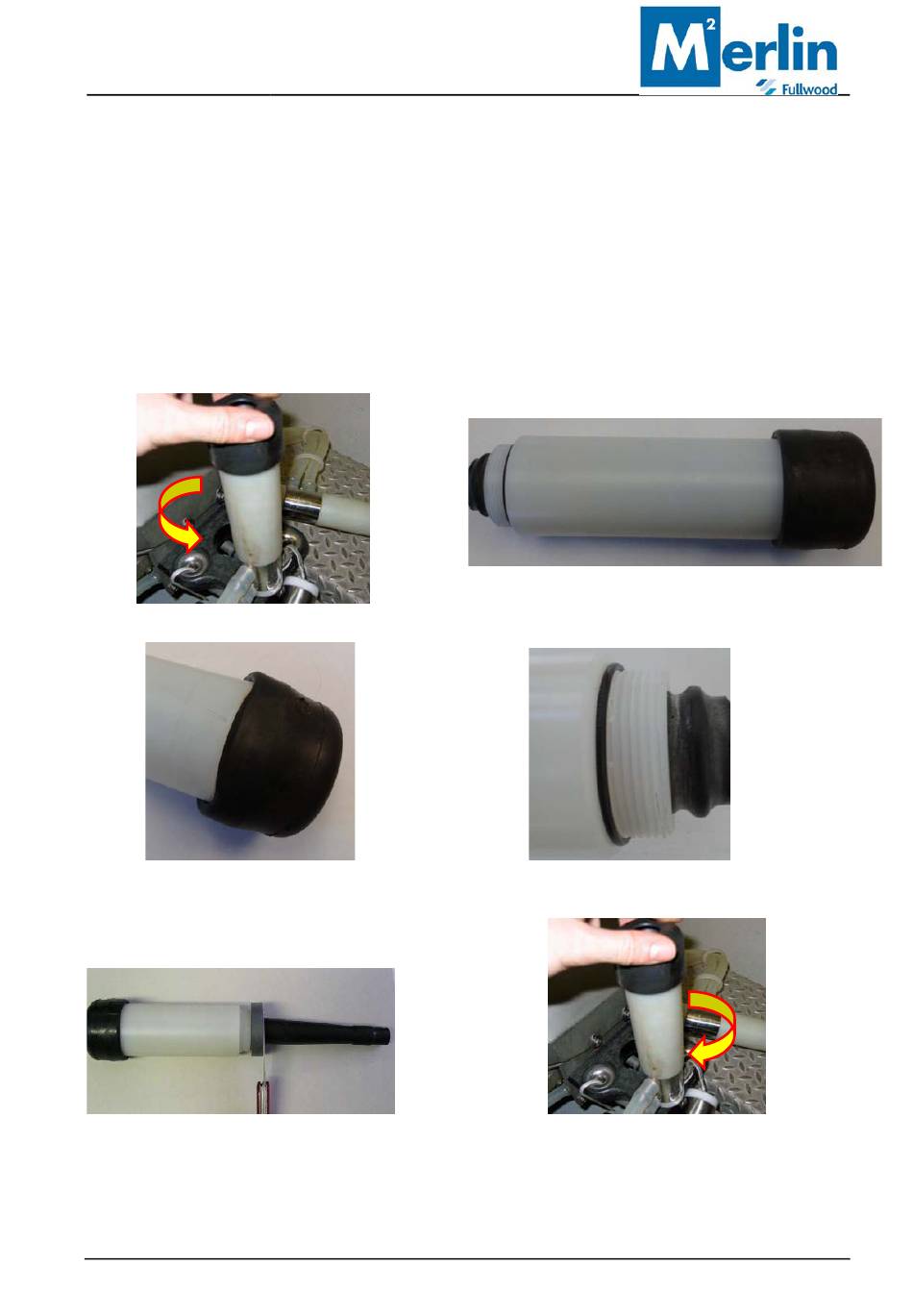

1.Rotate shell anti clockwise and remove
3. Remove used liner from shell and discard
5. Use the correct liner gauge and cut
Repeat the above process until all liners have been changed, turn the air supply back on and
press PLAY on the HMI, the robot is ready to milk again.
294130
Operating Instructions for Safe Use
Fullwood M²erlin
2.Shell and liner
4. Fit new liner and pull into shell as
far as shown (middle groove).
6. Screw the shell back into the milk
vacuum chamber; ensure that the
liner is not twisted.
