Atdec AF-AT Installation Manual page 4

Single arm desktop monitor mount

Advertisement

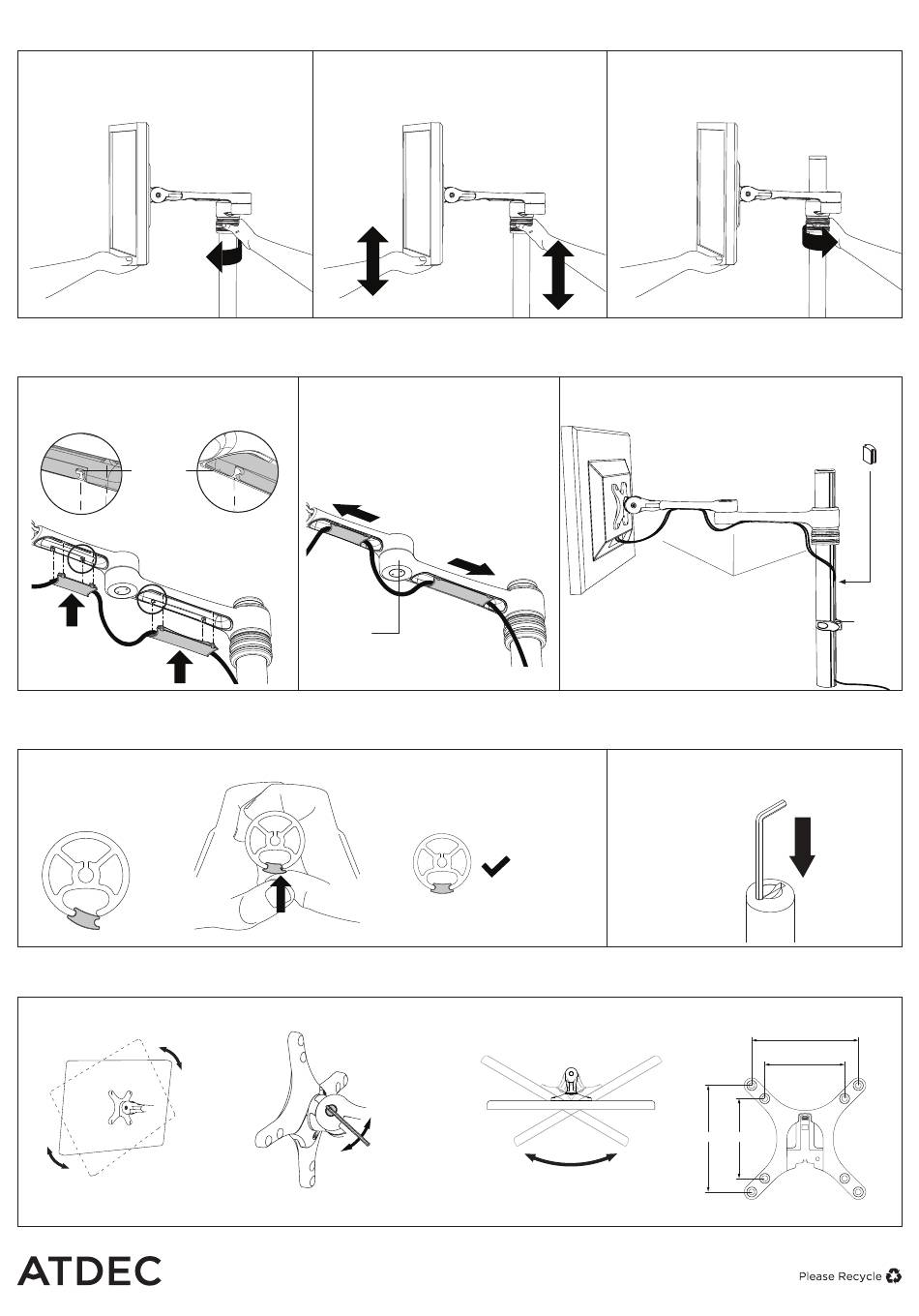

9. Adjusting Height
9.1 Unlock Handgrip ensuring both the
screen and arm assembly are supported
10. Cable Management
10.1 After plugging in your cables,
install the Cable Covers.
Lock Slot
Lock Slot
Insert Cable Covers
up into Lock Slots.
11. Insert Cable Stops
11.1 Insert Cable Stop on one edge
of the Pole Slot
12. Adjusting the Display Bracket
Portrait/ Landscape
No Allen Key
necessary
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specifications without notice. ©20191024A
atdec.com | atdec.co.uk | atdec.com.au
9.2 Lift/Lower the Screen to the desired
height. Move both Screen and Arm
assembly together
10.2 Push Cable Covers away from
Elbow Joint to secure in place.
'click'
'click'
Elbow Joint
Elbow Joint
Note: Press down firmly onto
the other edge of the Cable
Stop and hold. This allows the
rear profile to flex in place
Tilt (Screen angle up/down)
Loosen
5mm Allen Key
Tighten
Note: Support Screen when
adjusting tilt.
10.3 Cable Clips and Cable Stops can be installed
to further manage cables.
'click'
'click'
Pan (Screen angle left/right)
No Allen Key necessary
9.3 Lock Handgrip firmly
Note: Ensure enough cable
slack is given to allow for
movement.
11.2 Insert allen key into top cap
on pole
Allen Key
Storage
VESA 75 x 75 / 100 x 100mm
100mm
100mm
75mm
AF-AT Page 4 of 4
Cable
Stop
Cable
Clip
75mm
