Atdec A-STSWW-A Installation Instructions Manual

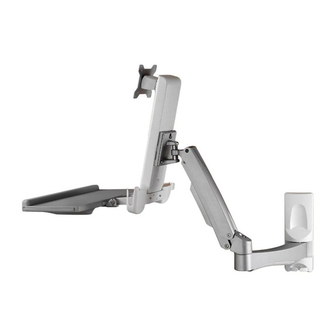

A-STSWW-A
Sit-to-Stand Workstation - Antimicrobial

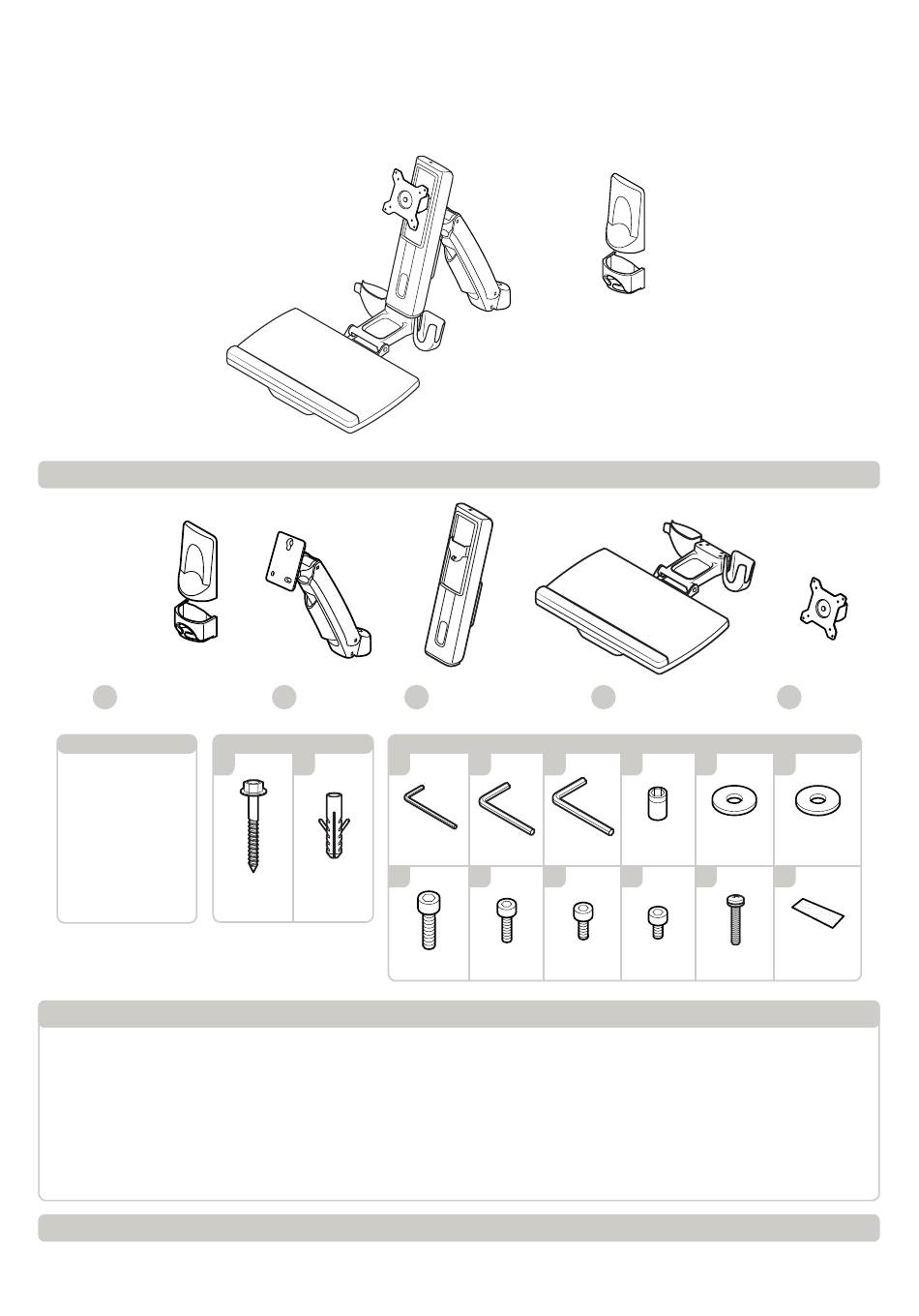

Component Checklist
A
Lower Arm
Tools Required
• 8mm wrench
• Drill
• 10mm masonry bit
• 4.5mm drill bit
• Ratchet
• Spirit Level
• Stud Finder
• Pencil
IMPORTANT INFORMATION
! IMPORTANT - Install as per Installation Instructions
! The manufacturer accepts no responsibility for incorrect installation.
! This product supports a maximum load 8Kg (17.6lbs.)
! The wall mount can be installed on vertical, flat, solid concrete or brick walls, or timber stud walls only.
! The wall should be strong enough to sustain a weight of at least four times that of the display and wall mount bracket combined.
If in doubt, consult a structural engineer.
! Check wall anchors and screws every 3 months from the time of installation to ensure the workstation is firmly fixed to the wall.
! Tighten all screws (do not exert excessive force to avoid breaking the screws or damaging their thread)
Step 1. Check Components
Check that you have received all parts against the Component Checklist.
B
Upper Arm
Wall Mounting Hardware
F G
Coach Nylon
Screw (x6) Anchor (x6)
Installation Instructions
Vertical Screen
C
Slider
Hardware
H J K
2.5mm Allen 5mm Allen 6mm Allen
O P Q
M8X20 (x1) M6X12 (x4) M6X10 (x3)
Wall Mounted
D
Keyboard Tray
L M
8mm Plastic
¼" Drive Washer (x1)
R S
M6X8 (x1) M4x10 (x4)
A-STSWW-A
E
Tilt Head
N
Metal
Washer (x1)
T
Velcro
Strip (x2)
Page 1 of 5
