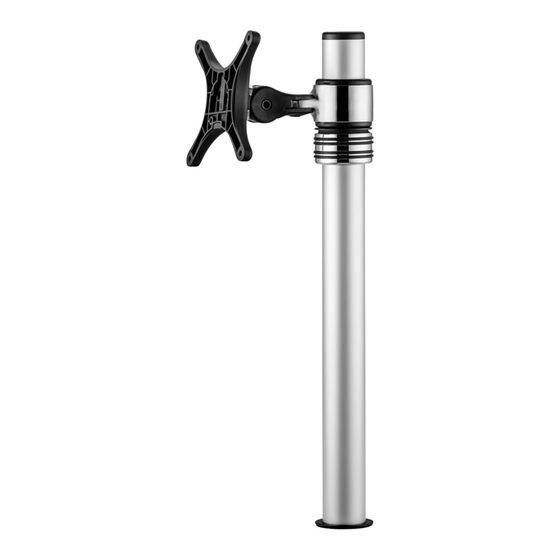

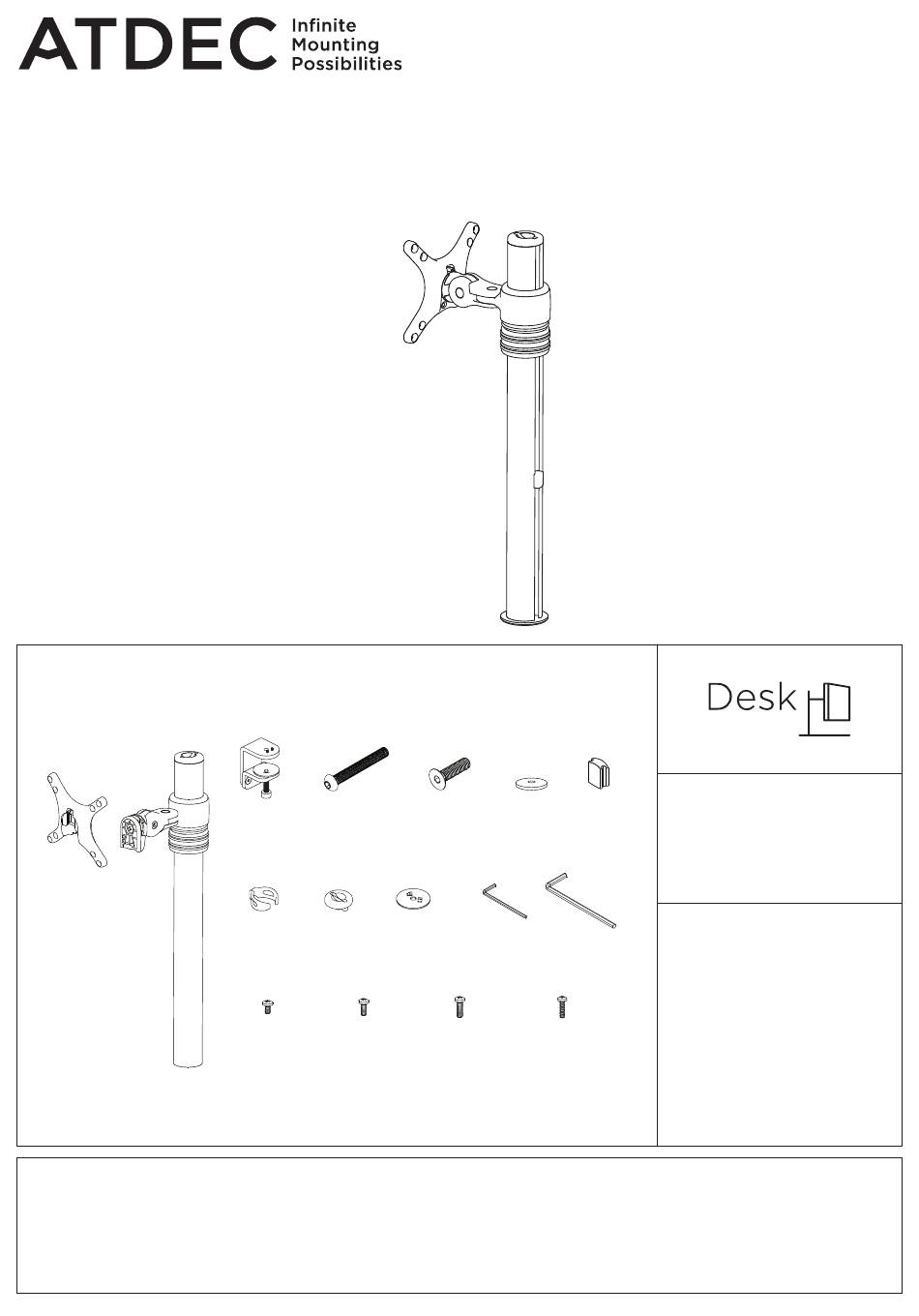

Micro Desktop Monitor Mount
COMPONENT CHECKLIST
A
VESA
head
(x1)
B
Pole
Assembly
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with the range of AF Poles and arms.
! The manufacturer accepts no responsibility for incorrect installation.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the
capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further
information.
C
D
Desk clamp
Screw
assembly
M8 x 60mm
(x1)
(x1)
H
I
Cable Clip
Pole
Bolt Through
(x1)
Top Cap
(x1)
M
N
Mounting
Mounting
screws
screws
M4 x 10mm
M4 x 12mm
(x4)
(x4)
E
F
Screw
Steel
M8 x 30mm
Washer
(x1)
(x1)
K
J
2mm
5mm
Allen key
Allen key
Base
(x1)
(x1)
(x1)
O
P
Mounting
Security Screw
screws
M4 x 16mm
M4 x 16mm
(x1)
(x4)
Installation Guide
REQUIRED TOOLS
G
Cable
• Phillips Head Screwdriver
Stops
(x2)
WEIGHT RANGE
L
Flat Monitors
0 - 8kg
(0 - 17.6lbs)
Curved Monitors
0 - 5.5kg
(0 - 12lbs)
AF-M
AF-M Page 1 of 4
Advertisement
Related Manuals for Atdec AF-M
Summary of Contents for Atdec AF-M
-
Page 1: Installation Guide
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information. - Page 2 4. Bolt through - Drill Hole 5. Bolt Pole to work surface 4.1 Drill 9mm hole in desired post position on work surface. Bolt Through Plate (3/8”) Steel Washer M8x60mm Note orientation of Screw plate with pole Allen Key AF-M Page 2 of 4...
- Page 3 Locked position previously removed. Turn the Grub Screw clockwise until it is tight. Do not over-tighten Pole Slot in Pole Grub Screw Hole 2mm Allen Key Micro Arm Grub Screw 2mm Allen Key Grub Screw AF-M Page 3 of 4...
-
Page 4: Cable Management
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20191024A AF-M Page 4 of 4 atdec.com | atdec.co.uk | atdec.com.au...
