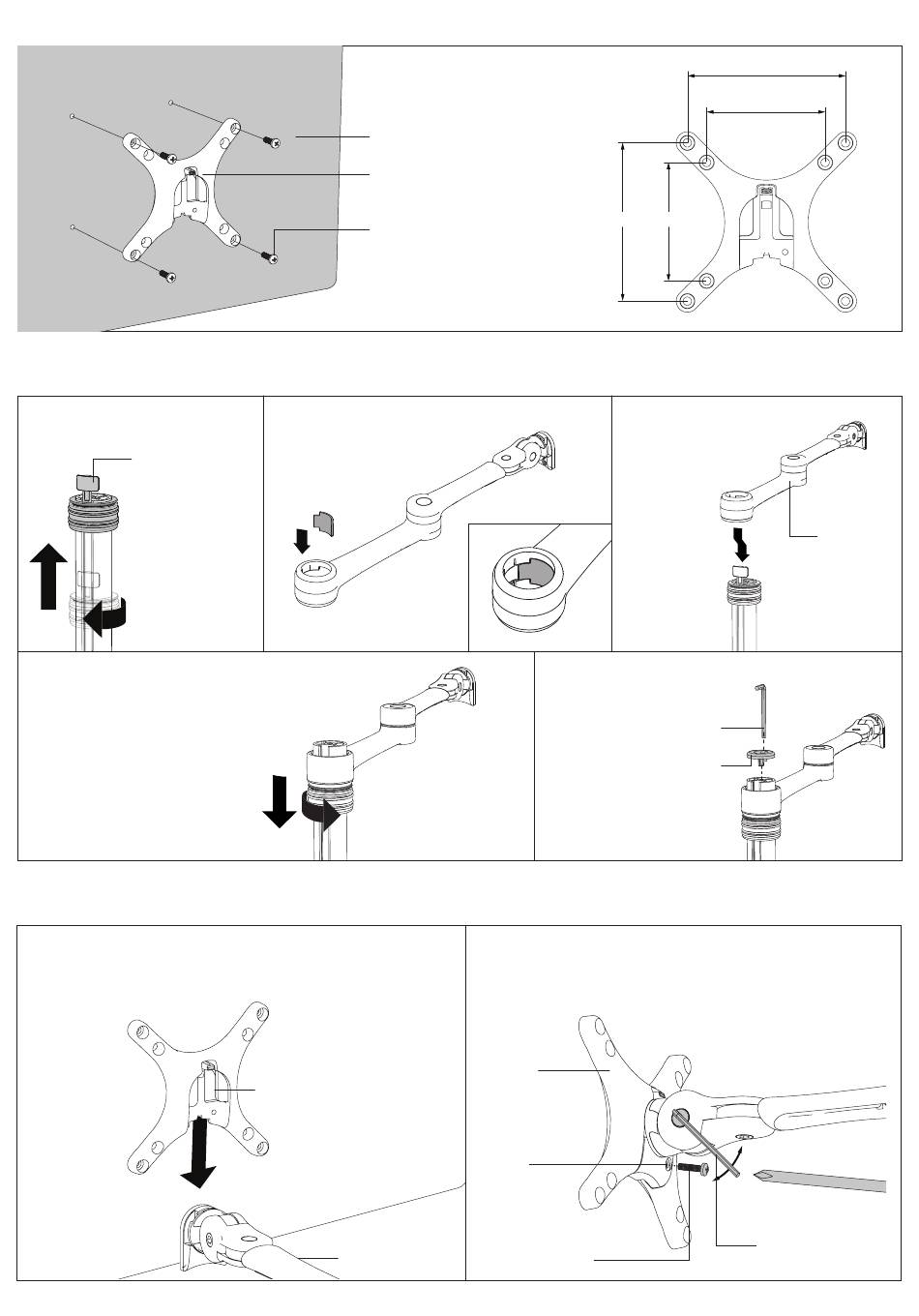

6. Install VESA monitor head
6.1 Install VESA monitor head as shown.
7. Install arm assembly
7.1 Unlock handgrip and raise so
that handgrip tab protrudes
Handgrip Tab
7.4 Slide the Arm Assembly and
Handgrip down the pole before locking
the handgrip at the desired height
8. Mounting Monitor
8.1 Insert VESA monitor head into
the receptacle in the Arm Assembly
Screen
VESA monitor
head
M4x10/12/16mm
Phillips Head Mounting
Screws
7.2 OPTIONAL ROTATION LIMITER
Insert rotation limiter for 180�
rotation around mounting pole
VESA monitor head
Arm Assembly
100mm
75mm
7.3 Slip the Arm Assembly
over the Handgrip Tab and
then onto the Pole
7.5 Insert Pole Top
Cap into Pole. This is
also where the Allen
Key is stored.
8.2 OPTIONAL SECURITY SCREW
Ensure the Monitor is supported, then loosen the Monitor head
screw with the 5mm Allen Key and tilt screen up before installing
the M4 x 16mm Security Screw into the Security Screw hole
Monitor head
screw
Security Screw
Hole
M4 x 16mm
Security Screw
100mm
75mm
Arm Assembly
5mm
Allen Key
Pole
Top Cap
Note: Support Screen
when adjusting tilt.
Loosen
Tighten
Phillips Head
Screwdriver
5mm Allen Key
AF-AT Page 3 of 4
