Accessory Arm

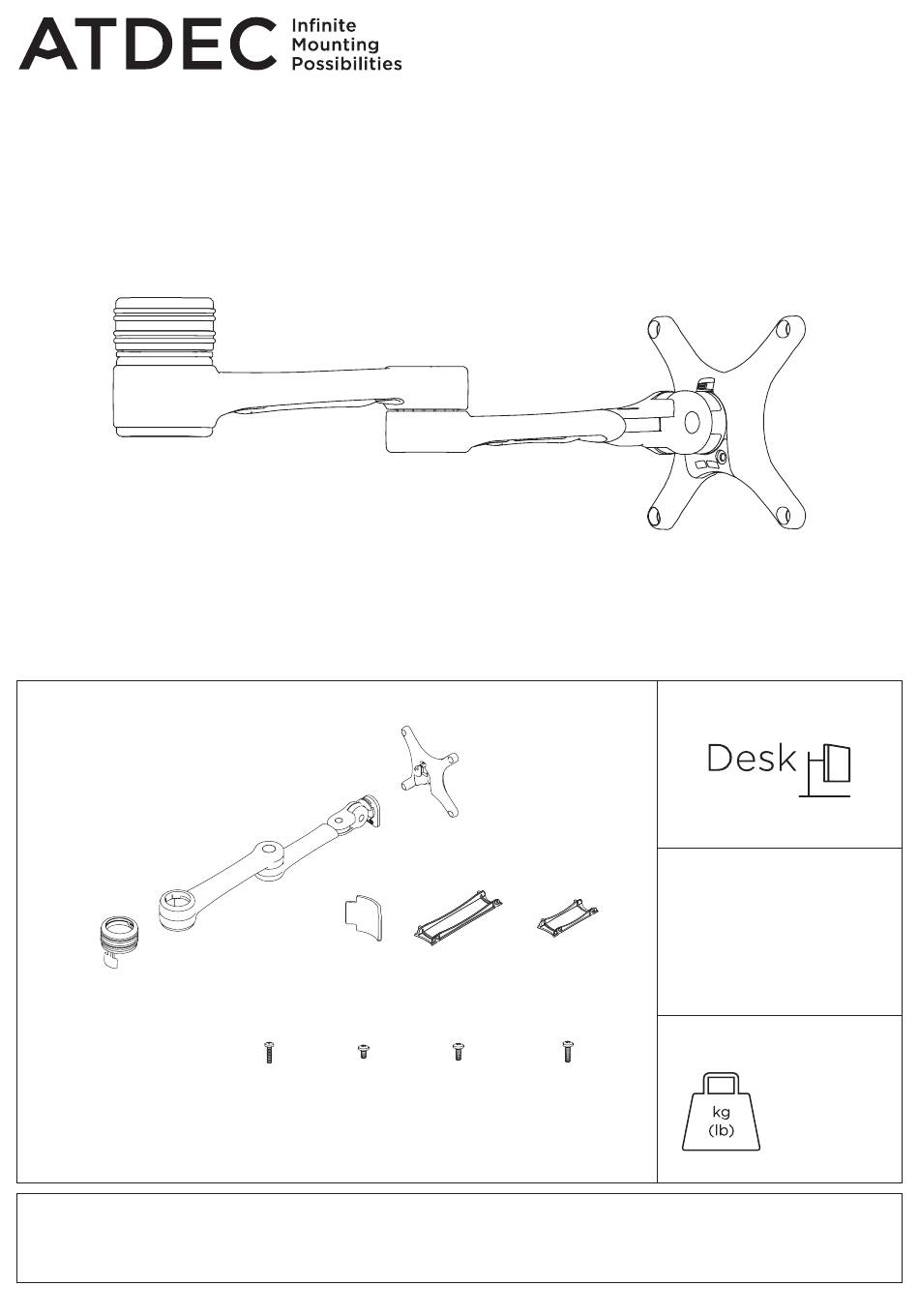

COMPONENT CHECKLIST
C
Hand grip assembly
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with the range of AF Poles and arms.
! The manufacturer accepts no responsibility for incorrect installation.
B
Monitor
arm
(x1)
D
Rotation
limiter
(x1)
G
H
Security Screw
Mounting
M4 x 16mm
screws
(x1)
M4 x 10mm
(x4)
A
VESA
head
(x1)
E
F
Primary arm
Secondary arm
cable cover
cable cover
(x1)
(x1)
I
J
Mounting
Mounting
screws
screws
M4 x 12mm
M4 x 16mm
(x4)
(x4)
Installation Guide
AF-AA
REQUIRED TOOLS
• Phillips Head Screwdriver
WEIGHT RANGE
0 - 8kg
(0 - 17.6lbs)
AF-AA Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atdec AF-AA
Summary of Contents for Atdec AF-AA
-
Page 1: Installation Guide
IMPORTANT INFORMATION ! Please ensure this product is installed as per these installation instructions. ! This product is compatible with the range of AF Poles and arms. ! The manufacturer accepts no responsibility for incorrect installation. AF-AA Page 1 of 4... - Page 2 2.5 Turn the handgrip to fix the height of the arm handgrip on to the pole and place the top cap back on to the pole Pole Top Cap Allen Key Note Ensure handgrip tab lines up with slot in pole AF-AA Page 2 of 4...
-
Page 3: Cable Management
Lock Slot Cable Stop Lock Slot Insert Cable Covers up into Lock Slots. ‘click’ ‘click’ Elbow Joint ‘click’ Note: Ensure enough cable ‘click’ Cable Clip slack is given to allow for movement. Elbow Joint AF-AA Page 3 of 4... - Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20180206B AF-AA Page 4 of 4 atdec.com | atdec.co.uk | atdec.com.au...
