Roger Access Control System
ME-14-24V User Manual
Product version: 1.0
Document version: Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME-14-24V and is the answer not in the manual?

Questions and answers

Summary of Contents for Roger ME-14-24V

  • Page 1 Roger Access Control System ME-14-24V User Manual Product version: 1.0 Document version: Rev. A...

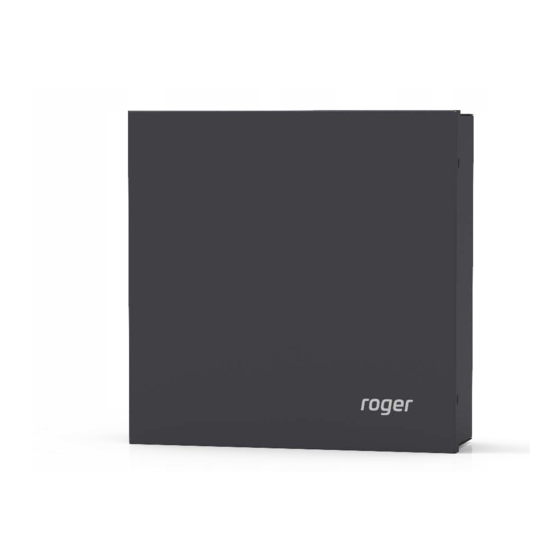

  • Page 2 02.10.2019 ESIGN AND APPLICATION ME-14-24V metal enclosure is dedicated to installation of RACS 5 modules and devices which require DIN rail and 7Ah backup battery. The enclosure is equipped with single DIN rail, 24V/50W power supply unit and tamper contact. The enclosure front panel is attached with screws. ME-14 is made of anthracite grey powder coated stainless metal sheet.
  • Page 3 ME-14-24V User manual 02.10.2019 Fig. 1 Arrangement of ME-14-24V internal components PECIFICATION Parameter Value Rated output voltage 24VDC Rated output current 2.2A Rated power Tamper protection Tamper contact NO/NC; 50mA/50VDC DIN rail 1 x 245mm Metal sheet DC01; 0,8mm; anti-corrosion protection...
  • Page 4 Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
