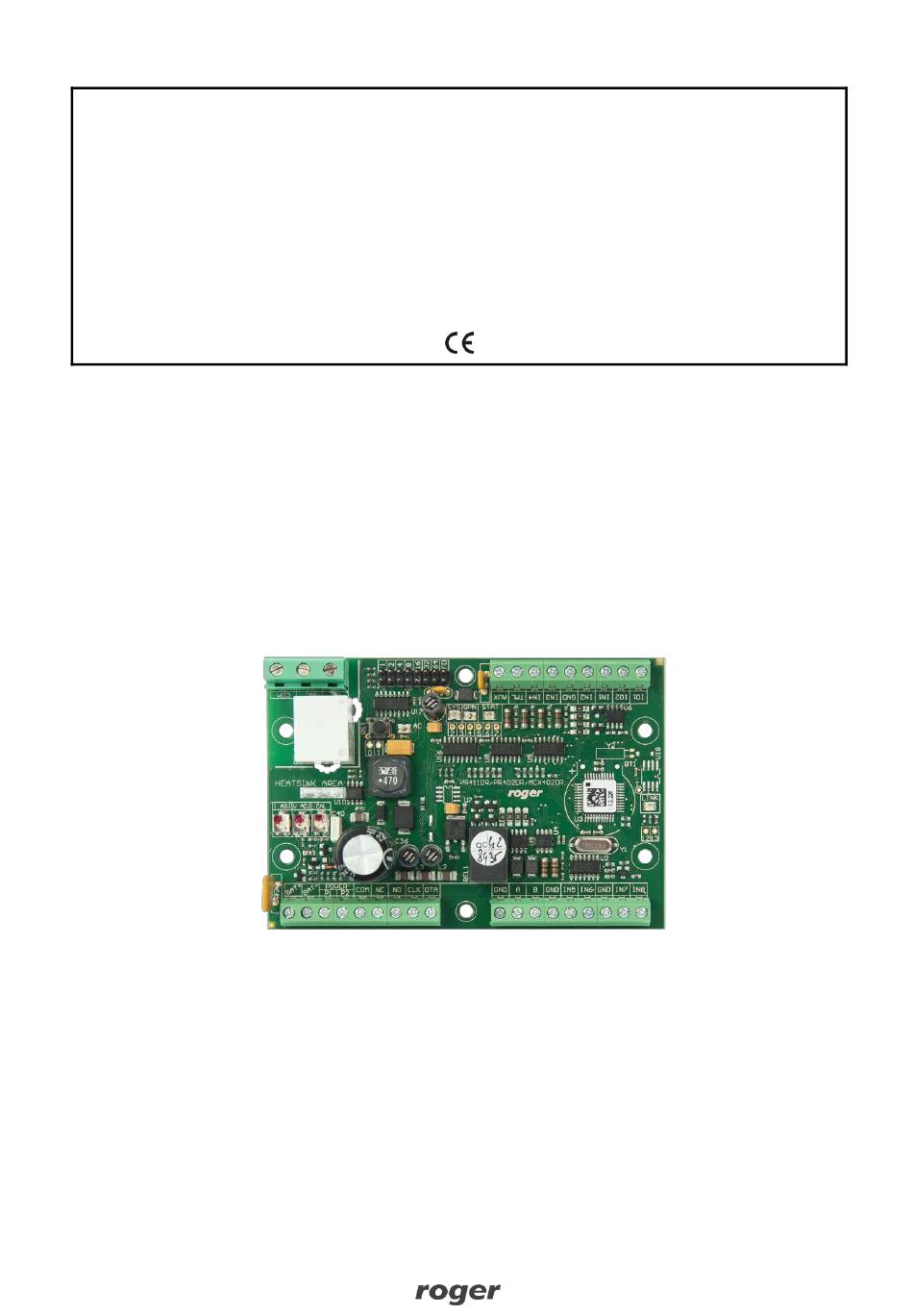

- Page 1 Roger Access Control System MCX402-BRD Operating Manual Product version: 1.0 Firmware version: 1.0.4 or newer Document version: Rev. D...
-
Page 2: Design And Application
Wiegand interface terminals or two PRT series terminals. After connection to MC16 controller the device enables to control single door. The expander operates with backup battery which can be charged with 0.3A current. MCX402-BRD expander is offered separately or as a component of MC402-1-KIT and MC402-2-KIT. -
Page 3: Installation

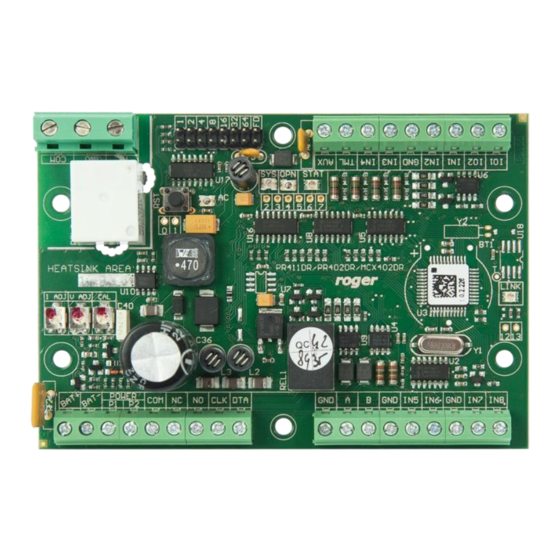

In case of PRT readers with RACS CLK/DTA interface the expander must be uploaded with new firmware which is available at www.roger.pl. The expander enables the control of two PRT series readers with ID=0 and ID=1 addresses by MC16 controller. - Page 4 MCX402-BRD Operating Manual 04.12.2020 Fig. 2 MCX402-BRD expander Table 2. Screw terminals Name Description BAT+, BAT- Backup battery 24VDC input power supply Ground 12VDC/1.0 output power supply (for door lock) 12VDC/0.2A output power supply (for readers) IN1-IN8 Input lines Ground...
-
Page 5: Operation Scenarios
3. O PERATION SCENARIOS In typical scenario of operation, MCX402-BRD expander is used to control single door by MC16 controller. Depending on uploaded firmware the expander can operate with 2 Wiegand or PRT terminals. In practical applications expanders are usually installed within MCX402-1-KITs. The MCX402-2-KIT which is additionally equipped with PS1A module can be used to control two read-in doors by MC16 controller. - Page 6 MCX402-BRD Operating Manual 04.12.2020 Fig. 4 Scenario of operation with MCX402-1-KITs Fig. 5 Scenario of operation with MCX402-2-KIT 6/13...
- Page 7 MCX402-BRD Operating Manual 04.12.2020 Fig. 6 Typical door control with Wiegand readers 7/13...
-
Page 8: Low Level Configuration (Rogervdm)
MCX402-BRD Operating Manual 04.12.2020 Fig. 7 Typical door control with PRT readers 4. C ONFIGURATION Low level configuration (RogerVDM) The purpose of low level configuration is to prepare device for operation in RACS 5 system. Programming procedure with RogerVDM software: 1. - Page 9 MCX402-BRD Operating Manual 04.12.2020 Fig. 8 Connection to RUD-1 interface Table 3. List of low level parameters Communication settings RS485 address Parameter defines device address on RS485 bus. Range: 100-115. Default value: 100. RS485 communication timeout [s] Parameter defines delay after which device will signal lost communication with controller.
- Page 10 MCX402-BRD Operating Manual 04.12.2020 Battery test period [min.] Parameter defines time between battery tests. Range: 0-250. When set to 0 then testing is disabled. Default value: 10. Input types IN1-IN8 Parameter defines input type. Range: [0]: NO, [1]: NC. Default value: [0]: NO.
-
Page 11: Manual Addressing
MCX402-BRD Operating Manual 04.12.2020 RACS CLK/DTA Terminal ID1 / Terminal ID0** Terminal enabled When option is enabled then card reader on terminal ID0/ID1 is enabled. Range: Yes, No. Default value: Yes. Keypad enabled When option is enabled then keypad on terminal ID0/ID1 is enabled. -
Page 12: High Level Configuration (Viso)
The purpose of high level configuration is to define logical functioning of the expander which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F IRMWARE UPDATE Factory new expander is equipped with a firmware dedicated to Wiegand readers. - Page 13 VAC/40VA supply; 2 Wiegand readers interface MCX402-1-KIT 1-door expander kit; ME-14 metal enclosure; MCX402-BRD I/O expander MCX402-2-KIT 2-door expander kit; ME14 metal enclosure; MCX402-BRD I/O expander; PS1A- LCK power supply module RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices 8.
