Roger Access Control System
MCT88M-IO Operating Manual
Product version: 1.0
Firmware version: 1.0.6.193 or newer
Document version: Rev. I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCT88M-IO and is the answer not in the manual?

Questions and answers

Related Manuals for Roger MCT88M-IO

Summary of Contents for Roger MCT88M-IO

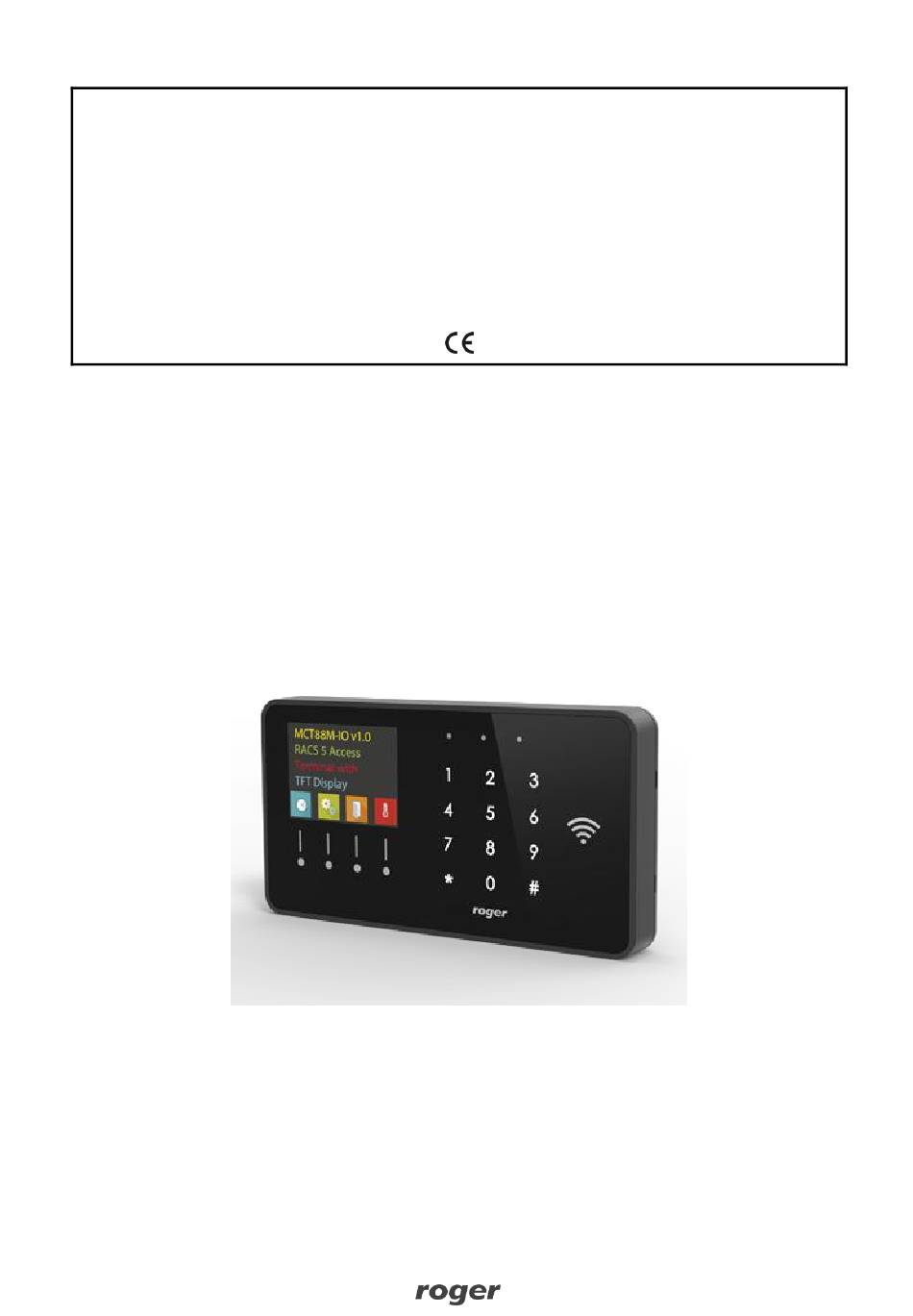

  • Page 1 Roger Access Control System MCT88M-IO Operating Manual Product version: 1.0 Firmware version: 1.0.6.193 or newer Document version: Rev. I...

  • Page 2: Design And Application

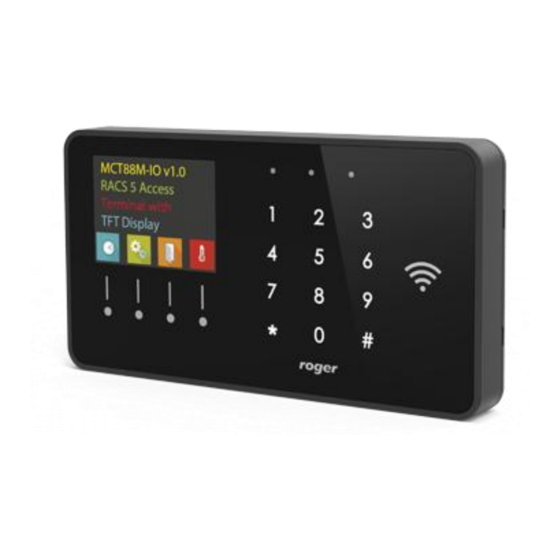

    1. D ESIGN AND APPLICATION The MCT88M-IO is an access terminal dedicated to RACS 5 system. The terminal is equipped with colour graphic display, sensor type keypad, 4 function keys and MIFARE® Ultralight/Classic/DESFire/Plus/ reader. Users can identify at the terminal with PINs, MIFARE cards and mobile devices equipped with NFC (Near Field Communication) or BLE (Bluetooth Low Energy) technology.
  • Page 3 MCT88M-IO Operating Manual 01/10/2021 Fig. 1 MCT supply from MC16 access controller Fig. 2 MCT supply from dedicated power supply unit RS485 bus The primary communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.

  • Page 4: Ethernet Interface

    01/10/2021 Ethernet interface Ethernet interface of MCT88M-IO terminal can be used for communication in LAN with virtual controller which operates as Windows service on a computer/server. Virtual controller enables the operation of MCT88M-IO as PoS terminal or assets management terminal. Virtual controller is a component of RogerSVC software package which is available at www.roger.pl.
  • Page 5 MCT88M-IO Operating Manual 01/10/2021 Table 2. LED indicators Indicator Colour Integral functions LED STATUS Red/green Default colour of the indicator is red. If the terminal is assigned to Alarm Zone then the LED indicates zone arming (red) or disarming (green).

  • Page 6: Tamper Detector

    MCT88M-IO Operating Manual 01/10/2021 3EOL/DW/NO input 3EOL/DW/NC input 3EOL/DW/NO input is operated in such way that C 3EOL/DW/NC input is operated in such way that C contacts closing is interpreted as triggering of the contacts opening is interpreted as triggering of the...

  • Page 7: Installation

    Bluetooth additionally verify if the parameter BLE activated is enabled. Install Roger Mobile Key (RMK) app on mobile device and configure the same parameters as in the terminal. Create key (authentication factor) in RMK defining its type and number, then create the same authentication factor in VISO software (fig.
  • Page 8 MCT88M-IO Operating Manual 01/10/2021 OUT1 OUT1 output line IN3 input line IN2 input line IN1 input line REL1 relay normally opened contact REL1 relay normally closed contact REL1 relay common contact RS485 bus, line B RS485 bus, line A Ground...
  • Page 9 MCT88M-IO Operating Manual 01/10/2021 Fig. 5 MCT88M-IO installation 9/20...

  • Page 10: Operation Scenarios

    MCT88M-IO Operating Manual 01/10/2021 Fig. 6 Internal side of the front panel Installation guidelines  The terminal should be mounted on a vertical structure (wall) away from sources of heat and moisture.  Front panel should be attached in such way as the tamper detector (fig. 6) would firmly press the back panel.

  • Page 11: Vending Terminal (Pos)

    Fig. 7 Example connection diagram for the terminal and MC16 access controller Vending terminal (PoS) The MCT88M-IO terminal when connected to virtual controller via Ethernet (LAN) can be used as Point of Sale terminal. Virtual controller is a Windows Service installed on computer by means of RogerSVC software which is available at www.roger.pl.

  • Page 12: Low Level Configuration (Rogervdm)

    MCT88M-IO Operating Manual 01/10/2021 4. C ONFIGURATION The purpose of low level configuration is to prepare device for operation in RACS 5 system. In case of RACS 5 v1 system the address of device must be configured by means of RogerVDM software or by manual addressing before connection to MC16 controller.
  • Page 13 NFC authentication factor class Parameter defines acceptable type of keys (authentication factors) created in Roger Mobile Key app for NFC communication. UCE means lower security and quicker identification while REK means higher security and slower identification. It is necessary to apply classes in RMK which are acceptable for terminal.
  • Page 14 MCT88M-IO Operating Manual 01/10/2021 Backlight level [%] Parameter defines backlight level. When set to 0 then backlight is disabled. Range: 0-100. Default value: 100. Backlight dimming when card/key Parameter enables temporary backlight dimming whenever card is used read or key is pressed. Range: [0]: No, [1]: Yes. Default value: [0]: No.
  • Page 15 MCT88M-IO Operating Manual 01/10/2021 Long key press time [s] Parameter defines long press time for such key types as [*], [#] and [F1] - [F4]. When set to 0 then long press is disabled. Range: 0-64. Default value: 2. BLE session timeout [s] Parameter defines maximal time for establishing connection between mobile device and terminal in Bluetooth technology.
  • Page 16 0-31 and 0-14 for sectors 32-39. Default value: 0. Key type Parameter defines key type used to access sector with PCN. Range: [0]: A, [1]: B, [2]: Roger. Default value: [0]: A. Parameter defines 6 bytes (12 HEX digits) key for accessing sector where PCN is stored.

  • Page 17: Manual Addressing

    MCT88M-IO Operating Manual 01/10/2021 Parameter defines 16 bytes (32 HEX digits) key for accessing sector where PCN is stored. Programmable card number (PCN) settings for Mifare Desfire Sector type Parameter defines sector type with programmable number (PCN). If the option [0]:None is selected then card returned number (RCN) will include only CSN and PCN will be discarded.

  • Page 18: Memory Reset

    The purpose of high level configuration is to define logical functioning of the terminal which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F IRMWARE UPDATE The firmware of device can be changed to newer or older version.

  • Page 19: Ordering Information

    I/Os; RS485; Ethernet. MCX8-BRD I/O expander; 8 supervised inputs; 8 relay outputs 1.5 A/30 V; 13.8 VDC supply input. RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices. 8. P RODUCT HISTORY Table 7. Product history Version...
  • Page 20 Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
