Roger Access Control System
MCT82M-IO-HR Operating Manual
Product version: 1.0
Firmware version: 1.1.16 or newer
Document version: Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCT82M-IO-HR-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roger MCT82M-IO-HR-F

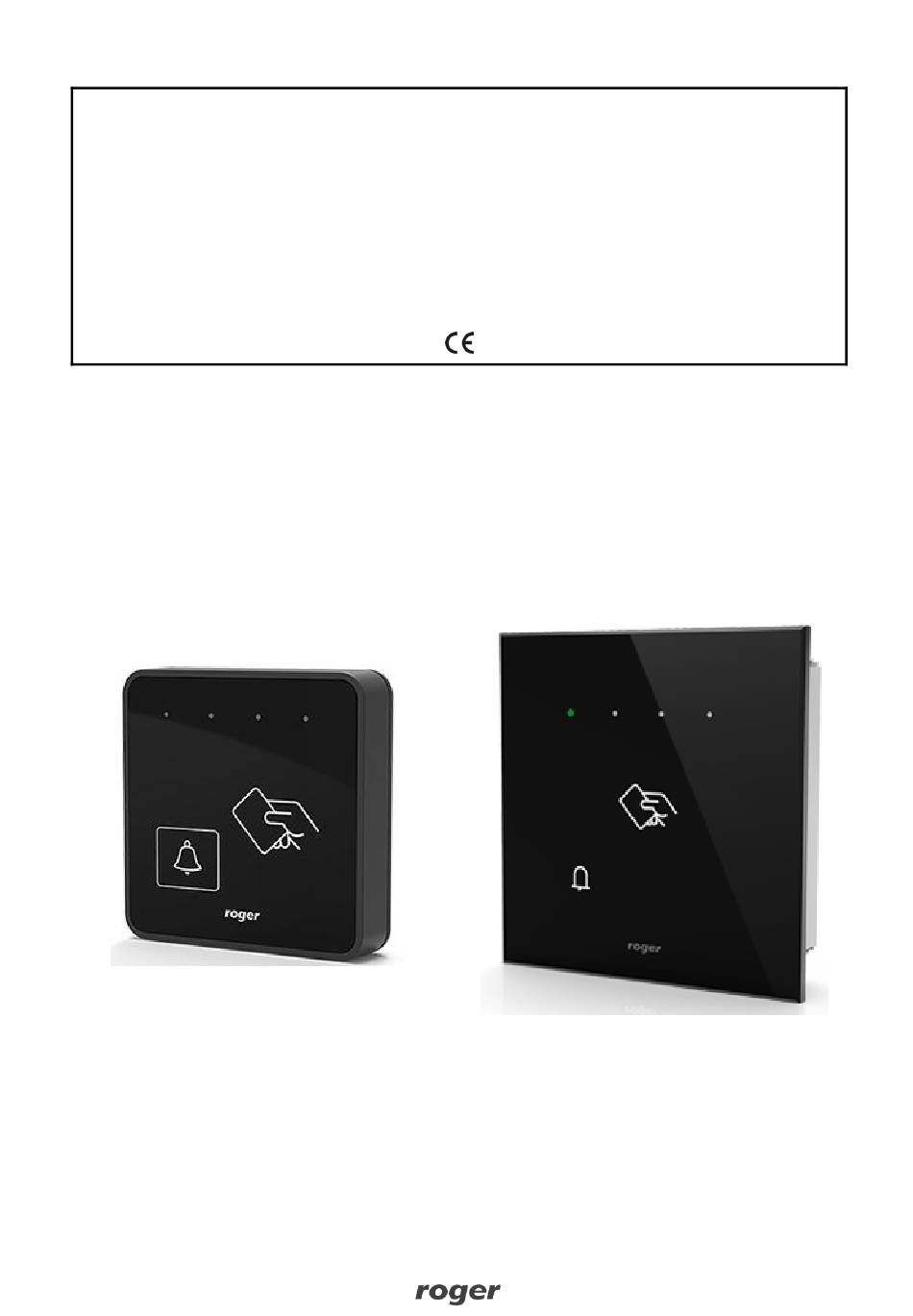

  • Page 1 Roger Access Control System MCT82M-IO-HR Operating Manual Product version: 1.0 Firmware version: 1.1.16 or newer Document version: Rev. B...
  • Page 2: Design And Application

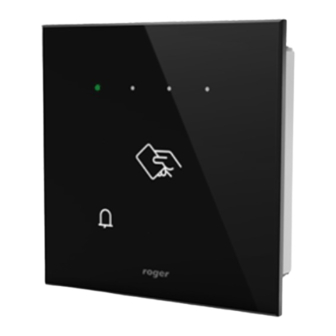

    MC16 controller to which the terminal has to be connected through RS485 addressable communication bus. The terminal is offered in two versions: MCT82M-IO-HR for surface mounting and MCT82M-IO-HR-F for flush mounting. Note: Hotel system configuration is explained in AN033 application note which is available at www.roger.pl.
  • Page 3 MCT82M-IO-HR Operating Manual.doc 2018-11-23 Fig. 1 Supply from standalone power supply unit Fig. 2 Supply from MC16 access controller RS485 bus The communication with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.
  • Page 4: Bell Touch Key

    MCT82M-IO-HR Operating Manual.doc 2018-11-23 Bell touch key The terminal is equipped with touch function key. The key is mainly dedicated to control a bell but it can be alternatively assigned with other functions within high level configuration (VISO). LED indicators The terminal is equipped with four LED indicators which are mainly used to signal hotel functions but they can also be programmed with other available functions within high level configuration (VISO).
  • Page 5 MCT82M-IO-HR Operating Manual.doc 2018-11-23 NO type NO input can be in normal or in triggered state. In normal state C contacts are opened. Input triggering is caused by C contacts closing. Fig. 4 NO input type NC type NC input can be in normal or in triggered state. In normal state C contacts are closed.
  • Page 6 MCT82M-IO-HR Operating Manual.doc 2018-11-23 2EOL/NO type 2EOL/NO input can be in normal, triggered, tamper (sabotage) or malfunction state. In normal state C contacts are opened, while contacts are closed. Input triggering is caused by C Tamp contacts closing. C contacts opening is recognized as the Tamp tamper (sabotage) state.
  • Page 7: 3Eol/Dw/No And 3Eol/Dw/Nc

    (SSN) in selected and encrypted sectors of card memory. The use of SSN prevents card cloning and consequently it significantly increases security in the system. More information on MIFARE card programming is given in AN024 application note which is available at www.roger.pl. 7/17...
  • Page 8: Installation

    MCT82M-IO-HR Operating Manual.doc 2018-11-23 2. I NSTALLATION Fig. 12 Surface mounting terminal 8/17...
  • Page 9 MCT82M-IO-HR Operating Manual.doc 2018-11-23 Fig. 13 Flush mounting terminal 9/17...
  • Page 10 MCT82M-IO-HR Operating Manual.doc 2018-11-23 Fig. 14 Internal side of the front panel Table 3. Screw terminals Screw terminal Description +12V 12VDC power supply Ground RS485 bus, line A RS485 bus, line B REL relay common terminal REL relay output (NC) REL relay output (NO) IN1 input line IN2 input line...
  • Page 11: Operation Scenario

    MCT82M-IO-HR Operating Manual.doc 2018-11-23 3. O PERATION SCENARIO The MCT82M-IO-HR terminal when connected to MC16 access controller can be used for access control, especially in case of hotel room. The example of connection diagram for such scenario is shown in fig. 15 where the terminal’s power supply line and RS485 bus are connected directly to the controller.
  • Page 12 MCT82M-IO-HR Operating Manual.doc 2018-11-23 Fig. 16 Connection of MCT reader to RUD-1 interface (configuration) Table 4. List of low level parameters Communication settings RS485 address Parameter defines device address on RS485 bus. Range: 100-115. Default value: 100. RS485 communication timeout [s] Parameter defines delay after which device will signal lost communication with controller by means of its LED indicators.
  • Page 13 MCT82M-IO-HR Operating Manual.doc 2018-11-23 time elapses the buffer is cleared even if card/PIN is not transmitted to controller. Range: 0-64. Default value: 10. Card/PIN encryption Parameter enables encryption of card number and PIN when transmitted by RS485 bus. Range: [0]: No, [1]: Yes. Default value: [0]: AF type Parameter defines authentication factor type returned by terminal.
  • Page 14 0-31 and 0-14 for sectors 32-39. Default value: 0. Key type Parameter defines key type used to access sector with PCN. Range: [0]: A, [1]: B, [2]: Roger. Default value: [0]: A. Parameter defines 6 bytes (12 HEX digits) key for accessing sector where PCN is stored.
  • Page 15: Manual Addressing Procedure

    MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note while hotel system configuration is explained in AN033 application note. Both notes are available at www.roger.pl. 5. F IRMWARE UPDATE The update requires connection of reader to computer with RUD-1 interface (fig.
  • Page 16: Specification

    Class II, indoor general conditions, temperature: -10°C to +50°C, relative Environmental class (according humidity: 10 to 95% (no condensation) 50133-1) Dimensions H x W x D MCT82M-IO-HR: 85 x 85 x 22 mm MCT82M-IO-HR-F: 105 x 105 x 31 mm Weight ~100g Certificates 16/17...
  • Page 17: Ordering Information

    MIFARE Ultralight/Classic/Plus/DESFire access terminal for hotel applications. Surface mounting version. MCT82M-IO-HR-F MIFARE Ultralight/Classic/Plus/DESFire access terminal for hotel applications. Flush mounting version. RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices. 8. P RODUCT HISTORY Table 7. Product history Version...
