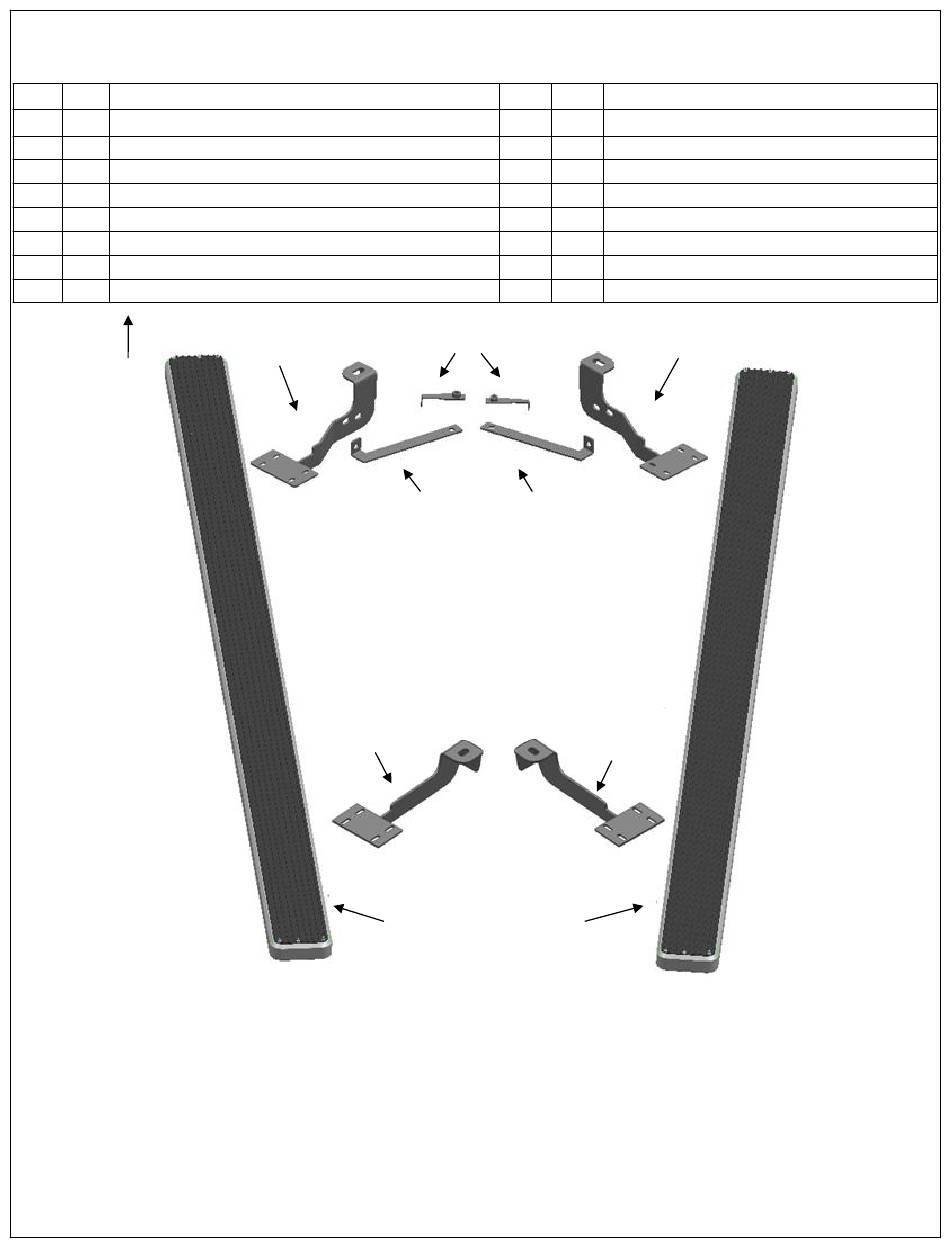

PARTS LIST:
Item QTY
2
Running Board(use for left or right)
#01
#02
1
Driver/Left Front Mounting Bracket (DFM)
#03
1
Driver/Left Front Support Bracket (DFS)
#04
1
Passenger/Right Front Mounting Bracket(PFM)
#05
1
Passenger/Right Front Support Bracket(PFS)
#06
1
Driver/Left Rear Mounting Bracket(DRM)
#07
1
Passenger/Right Rear Mounting Bracket(PRM)
#08
2
10mm Nut Plates
Front
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ FACTORY BODY
BOLT REMOVAL INSTRUCTIONS AND INSTALLATION INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION.
1. Start the installation under the passenger side of the vehicle. Remove the front body mount bolt,
(Figure 1). Do not remove rubber bushings.
2. Attach the passenger side front mounting Bracket to the body mount reusing the factory hex bolt,
(Figures 2 & 3). Do not tighten hardware at this time.
Description
Driver/left Front
Mounting Bracket
(2) 10mm Nut Plates
Driver/left Front
Support Bracket
Driver/left Rear
Mounting
Bracket
1999-2013 SILVERADO 1500/2500/3500 REGULAR CAB
Item QTY
#09
4
10-1.50mm x 30mm Hex Bolts
#10
6
10mm x 20mm OD x 2mm Flat Washers
#11
4
10mm Lock Washers
#12
2
10mm Hex Nuts
16 6-1.0mm x 20mm T-Bolts
#13
16 6mm x 22mm OD x 2mm Flat Washers
#14
16 6mm Lock Nuts
#15
Passenger/right
Front Support Bracket
Passenger/right
Rear Mounting
Bracket
(2) Running Board
(example only)
Page 1 of 4
IB(5",4")RUNNING BOARD
Description
Passenger/right Front
Mounting Bracket
10/21/15 (DP)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APS IB03DJJ7A
Summary of Contents for APS IB03DJJ7A
- Page 1 IB(5”,4”)RUNNING BOARD 1999-2013 SILVERADO 1500/2500/3500 REGULAR CAB PARTS LIST: Item QTY Description Item QTY Description Running Board(use for left or right) 10-1.50mm x 30mm Hex Bolts Driver/Left Front Mounting Bracket (DFM) 10mm x 20mm OD x 2mm Flat Washers Driver/Left Front Support Bracket (DFS) 10mm Lock Washers Passenger/Right Front Mounting Bracket(PFM) 10mm Hex Nuts...
- Page 2 IB(5”,4”)RUNNING BOARD 1999-2013 SILVERADO 1500/2500/3500 REGULAR CAB 3. Locate the two factory holes in the bottom of the frame towards the front of the vehicle, (Figure 4). Insert (1) 10mm Nut Plate, (Figure 5), into the oval hole and line up the threaded nut with the forward round hole, (Figure 4).
- Page 3 IB(5”,4”)RUNNING BOARD 1999-2013 SILVERADO 1500/2500/3500 REGULAR CAB Insert 10mm Front Nut Plate here..line up Nut Plate here Factory Body Mount Bolt (Fig 3) Passenger/right front Bracket installed (Fig 4) Bottom of frame on passenger side NOTE: Support Brackets not required on 2011-14 25-3500 Models (Fig 5) 10mm Nut Plate 10mm x 30mm Hex Bolt...
- Page 4 IB(5”,4”)RUNNING BOARD 1999-2013 SILVERADO 1500/2500/3500 REGULAR CAB 10mm x 30mm Hex Bolt Front (2) 10mm Flat Washers 10mm Lock Washer 10mm Hex Nut Rear (Fig 9) Passenger side Rear Bracket Installation (Fig 8) Passenger side Front Bracket Installation (4)6mmT-bolts (4)6mm Flat Washers (4)6mmLock nuts (Fig 10) Slip 6mm T-bolts (Fig 11) Passenger side Bracket Installation...
