Assembly & Installation Instructions:
Rise Quiet 3-Leg Electric Workcenter
RISE-3E-3044-X, RISE-3E-4674-X, RISE-3E-7694-X
RISE-3LEG-CONV-3648-X, RISE-3LEG-CONV-5278-X

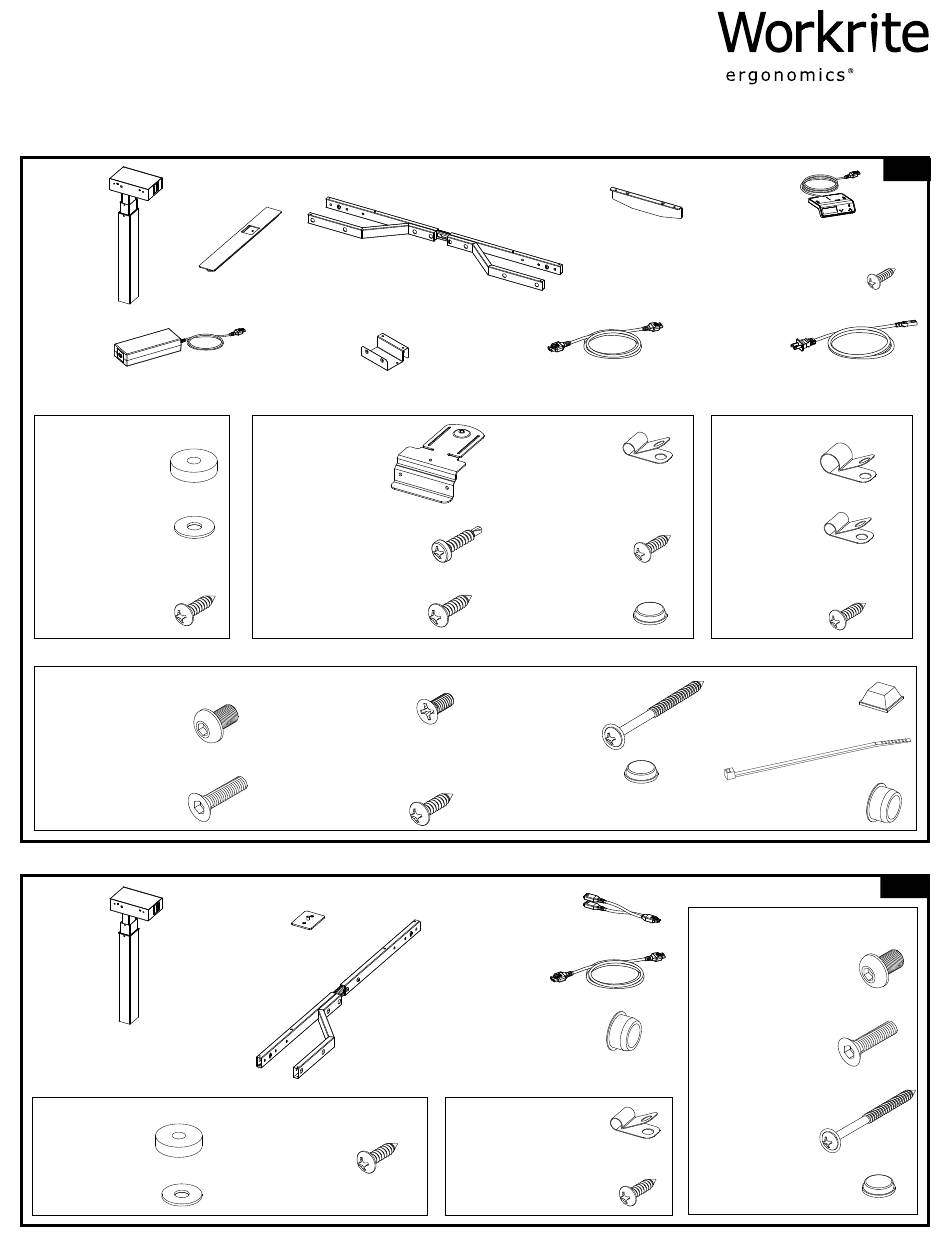

Two Leg Frameset, Components & Hardware
A
B
Legs
Qty: 2
G
Power Supply*
Qty: 1
*A second Power Supply may be added
to this system as a separate purchase.
Silence Kit 1
K
20 mm Foam Washers
Qty: 12
L
16 mm Steel Washers
Qty: 6
M
#8 × 1" Phillips Pan
Head Wood Screws
Qty: 6
Hardware Kit 1
T
5/ 1 6-18 × 5/ 8 " Button Head
Socket Cap Screws
Qty: 4
U
5/ 1 6-18 × 1" Flat Head Socket
Cap Screws
Qty: 8
Third Leg Frameset, Components & Hardware
A
B
Leg
Qty: 1
C
Silence Kit 2
K
20 mm Foam Washers
Qty: 12
L
16 mm Steel Washers
Qty: 6
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
C
Feet
Frameset
Qty: 2
Qty: 1
H
Power Supply Bracket
Qty: 1
Collision Detection System (CDS) Kit
N
Collision Detection
Sensor
Qty: 1
O
#8 × ½" Self Tapping
Phillips Head Screws
Qty: 2
P
#8 × ¾" Phillips Pan
Head Wood Screw
Qty: 1
V
1/ 4 -20 × 5/ 8 " Flat Head
Phillips Screws
Qty: 4
M
#8 × 1" Phillips Pan Head
Wood Screws
Qty: 8
B
Center Foot
Qty: 1
C
3 Leg Frame
Conversion
Qty: 1
M
#8 × 1" Phillips Pan
Head Wood Screws
Qty: 6
D
Side Bars
Qty: 2
I
Leg Cable
Qty: 1
R
3/ 1 6" P-Clips
Qty: 6
S
#6 × ⅝" Phillips Flat
Head Wood Screw
Qty: 6
X
Round Bumpers
Qty: 2
W
#10 × 2½" Phillips Pan
Head Wood Screws
Qty: 6
X
Round Bumpers
Qty: 8
A
A
"Y" Cable
Qty: 1
I
Leg Cable
Qty: 1
D
D
Round Plugs
Qty: 12
Cable Mgt. Kit 2
R
3/ 1 6" P-Clips
Qty: 4
S
#6 × ⅝" Phillips Flat
Head Wood Screws
Qty:4
E
Switch
Qty: 1
F
3.5 mm × 16 mm Phillips
Head Wood Screw
Qty: 2
J
Power Cable
Qty: 1
Cable Mgt. Kit 1
Q
5/ 1 6" P-Clips
Qty: 2
R
3/ 1 6" P-Clips
Qty: 6
S
#6 × ⅝" Phillips Flat
Head Wood Screw
Qty: 8
Y
Square Bumpers
Qty: 2
Z
Zip Ties
Qty: 2
D
D
Round Plugs
Qty: 24
Hardware Kit 2
T
5/ 1 6-18 × 5/ 8 " Button Head
Socket Cap Screws
Qty: 2
U
5/ 1 6-18 × 1" Flat Head Socket
Cap Screws
Qty: 6
W
#10 × 2½" Phillips Pan
Head Wood Screws
Qty: 3
X
Round Bumpers
Qty: 8
Box 1
Box 2
1 of 12
