ELC DeviceNet (ELC-CODNET) Instruction Manual

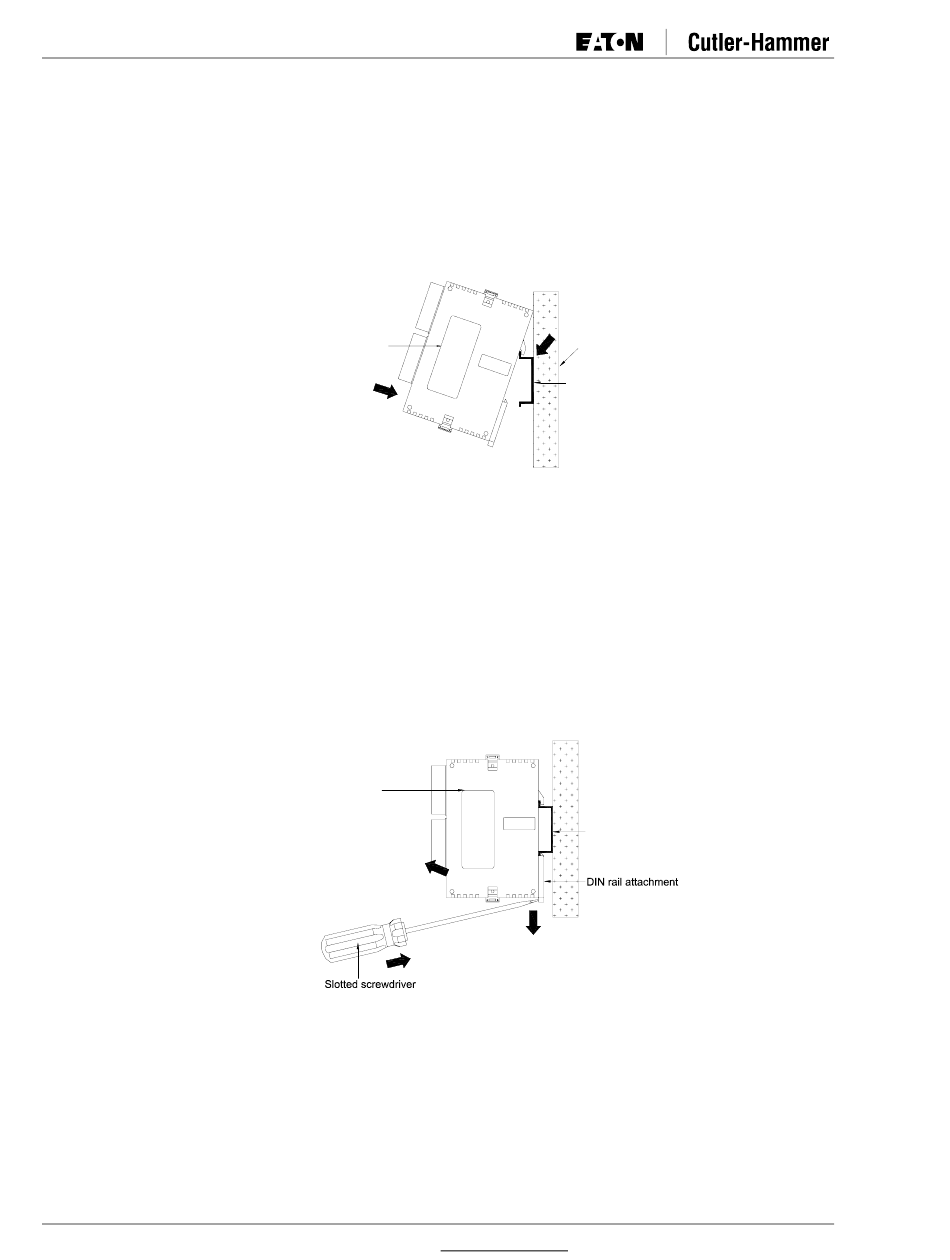

DIN Rail Mounting
1.
Fit the upper book of the ELC unit onto the DIN rail.
2.
Without moving the upper hook, press the lower hook to fit the ELC unit into
position
To remove, pull down the retaining clip and pull the ELC away from the DIN rail.
1.
Insert a slotted screwdriver into the DIN rail attachment lever
2.
Pull the attachment lever downwards
3.
Lift up the ELC unit and remove it form the rail
6
ELC unit
2
Figure 1-7: DIN Rail Mounting
ELC unit
3
1
Figure 1-7: DIN Rail Removing
For more information visit: www.EatonElectrical.com
1
Mounting panel
DIN rail
DIN rail
lever
2
Pub. No.
May 2005
MN05003005E
