System Assembly
Procedure:
Open the extension cover on the side of the unit with a screw driver so that the
1.
external connector is exposed.
Raise the extension hooks on the top and bottom sides of the unit with a
2.
screwdriver.
Pub. No.
MN05003005E

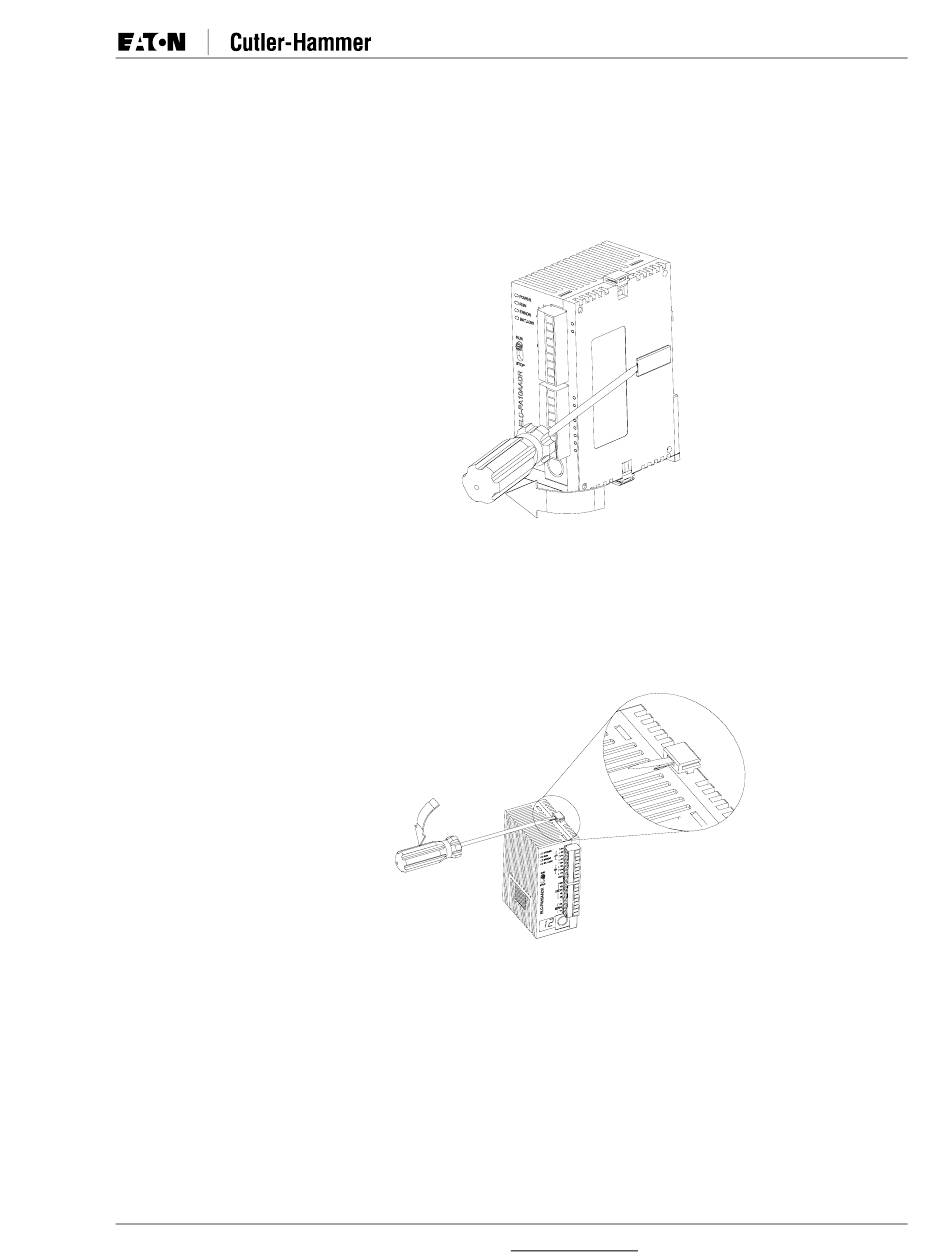

Figure 1-3: Open extension port cover
Figure 1-4: Unlock the top and bottom hooks
