- Page 1 Eaton Logic Controller DeviceNet (ELC-CODNET) Instruction Manual May 2005 Pub. No. MN05003005E For more information visit: www.EatonElectrical.com...
- Page 2 OEM markets. For more information, visit www.EatonElectrical.com. Eaton Corporation is a diversified industrial manufacturer with 2003 sales of $8.1 billion. Eaton is a global leader in fluid power systems and services for industrial, mobile and aircraft equipment; electrical systems and components for power quality, distribution and control;...
- Page 3 The product discussed in this literature is subject to terms and conditions outlined in Eaton Electrical Inc. selling policies. The ole source governing the rights and remedies of any purchaser of this equipment is the relevant Eaton Electrical Inc. selling policy. NO WARRANTIES, EXPRESS or IMPLIED, INCLUDING WARRANTIES OF FITNESS...
- Page 4 May 2005 Safety Instructions For the best results with the Eaton Logic Controller (ELC), carefully read this manual and all of the warning labels regarding the ELC before installing and operating it. Follow all instructions exactly and keep this manual handy for quick reference.
- Page 5 Information in this manual is subject to change without notice and does not represent a commitment on the part of Eaton Electrical Inc. Permission is granted to duplicate this material without modification only for your use or the internal use of other members of your company or your agents to assist you in the use and servicing of products purchased from Eaton Electrical.
- Page 6 Voice: 800-356-1243 (8a.m.–6p.m. EST) FAX: 800-752-8602 After-Hours Emergency: 800-543-7038 (6p.m.–8a.m. EST) Online Assistance Use the Eaton Electrical website to find product information. You can also find information on local distributors or Eaton Electrical/Cutler-Hammer sales offices. Website Address www.eatonelectrical.com Phone Assistance...
-
Page 7: Table Of Contents
Chapter 3 Installation and Configuration ............Configure ELC-CODNET communicate with ELC..........9 Applicable Units and DeviceNet Functions ............10 Configure ELC-CODNET to DeviceNet System..........10 MAC ID setting for ELC-CODNET module ............11 Function switches setting ..................11 ━ Chapter 4 Troubleshooting ................13 ━... - Page 8 ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 For more information visit: www.EatonElectrical.com Pub. No. MN05003005E...
-
Page 9: Chapter 1 ━ Overview
ELC-CODNET is a slave module in DeviceNet, it provides DeviceNet slave functionality to the ELC controllers when connected to a DeviceNet networks. ELC-CODNET is a Group 2 only Server, and it does not support UCMM. Within the Predefined Master/Slave Connection Set, ELC-CODNET supports “Explicit” and “Polling”... -
Page 10: Dimensions

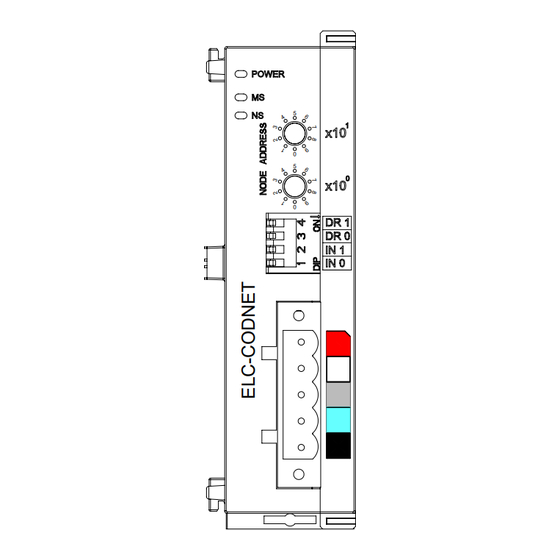

ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Dimensions 60 [2.36] Figure 1-2: DeviceNet ELC-CODNET Dimensions For more information visit: www.EatonElectrical.com Pub. No. MN05003005E... -
Page 11: System Assembly
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 System Assembly Procedure: Open the extension cover on the side of the unit with a screw driver so that the external connector is exposed. Figure 1-3: Open extension port cover Raise the extension hooks on the top and bottom sides of the unit with a screwdriver. -
Page 12: Network Wiring
BAT.LOW STOP Figure 1-5: ELC-CODNET System Assembly Network Wiring Plug the DeviceNet connector to socket on ELC-CODNET, and tighten screw to secure the connector in place. Figure 1-6: Plug the DeviceNet connector to socket For more information visit: www.EatonElectrical.com Pub. No. -
Page 13: Functionality
Connection size is fixed to 4bytes input and 4bytes output. • Support EDS file configure in DeviceNet configuration tools. Important Notice Prior to the installation or remove the ELC-CODNET from network, please make sure the power of ELC controller is switched off. Pub. No. MN05003005E... -
Page 14: Din Rail Mounting
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 DIN Rail Mounting Fit the upper book of the ELC unit onto the DIN rail. Without moving the upper hook, press the lower hook to fit the ELC unit into position Mounting panel... -
Page 15: Chapter 2 ━ Specifications
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Chapter 2 ━ Specifications Table 2-1: DeviceNet ELC-CODNET Specifications Item Specification DeviceNet Connections Interface Pluggable connector (5.08mm) Transfer method 2-wire twisted shielded cable with 2-wrie bus power cable Transfer cable and drain Electrical isolation... - Page 16 ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 For more information visit: www.EatonElectrical.com Pub. No. MN05003005E...
-
Page 17: Installation And Configuration
For more information about the extension unit in ELC system, please refer to ELC system manual. According to the extension unit input and output numbering rules, the input data of ELC-CODNET will map to X30-X67, output data will map to Y20-Y57. Pub. No. MN05003005E... -
Page 18: Applicable Units And Devicenet Functions
Master, and it are also mapping to X20-X57 in ELC controller. Configure ELC-CODNET to DeviceNet System As an extension unit of ELC controller, ELC-CODNET provides an IO link of 32 inputs and 32 outputs between the DeviceNet master and ELC controller. -
Page 19: Mac Id Setting For Elc-Codnet Module
Note: Setting changes via function switches will not effective when ELC-CODNET is operating. This means the setting changes will effective after ELC-CODNET power re-boot or reset ELC-CODNET module. - Page 20 May 2005 Note: ELC-CODNET module support auto baud rate function, when set all DR1-DR0 to ON, ELC-CODNET will detect the baud rate of DeviceNet networks. But we do not recommend using auto baud rate function. As you know, CAN message can be transmit successfully, the network need two nodes is working normal at least, if all nodes use auto baud rate function, then no one node can go online in DeviceNet network.
-
Page 21: Chapter 4 ━ Troubleshooting
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Chapter 4 ━ Troubleshooting NS LED Table 5-1: Troubleshooting the Network Status LED NS LED Status Indication Corrective Actions 1. Verify ELC-CODNET module is LED is off No power/Duplicate ID check powered on. - Page 22 ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 NS and MS LED Table 5-3: Troubleshooting the combined NS and MS LED NS LED MS LED Indicate Corrective action LED is off LED if off No power. Please check ELC-CODNET is powered on.
-
Page 23: Appendix A ━ Devicenet Objects
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Appendix A ━ DeviceNet Objects Object Classes The ELC-CODNET supports the following object classes: Table A-1: Troubleshooting the combined NS and MS LED Class Object 0x01 Identity object 0x02 Message router object 0x03... -
Page 24: Class 0X02 - Message Router Object
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Table A-4: Common Services Service Implemented for Service Name Code Class Instance 0x05 Reset 0x0e Get_Attribute_Single 0x10 Find_Next_Object_Instance Class 0x02 – Message Router object Table A-5: Class Attributes Attribute Access rule Name Data type... - Page 25 ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Table A-9: Instance Attributes Attribute Access rule Name Data type MACID USINT BaudRate USINT Get/Set BusofInterrupt BOOL Get/Set BusofCounter USINT AllocationInfo AllocationChioce BYTE MasterNodeAddress USINT MACIDSwitchChanged BOOL BaudRateSwitchChang BOOL MACIDSwitchValue USINT BaudRateSwitchValue USINT...
-
Page 26: Class 0X05 - Connection Object
ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Class 0x05 – Connection object Table A-11: Class Attributes Attribute Access rule Name Data type Revision UINT Table A-12: Explicit Message Connection Instance 1 Attribute Access rule Name Data type State USINT InstanceType... - Page 27 ELC DeviceNet (ELC-CODNET) Instruction Manual May 2005 Table A-13: Polled I/O Connection Instance 2 Attribute Access rule Name Data type State USINT InstanceType USINT TransportClassTrigger USINT ProducedConnectionId UINT ConsumedConnectionId UINT InitialCommCharacteristics BYTE ProducedConnectionSize UINT ConsumedConnectionSize UINT Get/Set ExpectedPackedRate UINT Get/Set...
- Page 30 Eaton Corporation is a diversified industrial manufacturer with 2003 sales of $8.1 billion. Eaton is a global leader in fluid power systems and services for industrial, mobile and aircraft equipment; electrical systems and components for power quality, distribution and control; automotive engine air management systems and powertrain controls for fuel economy;...
